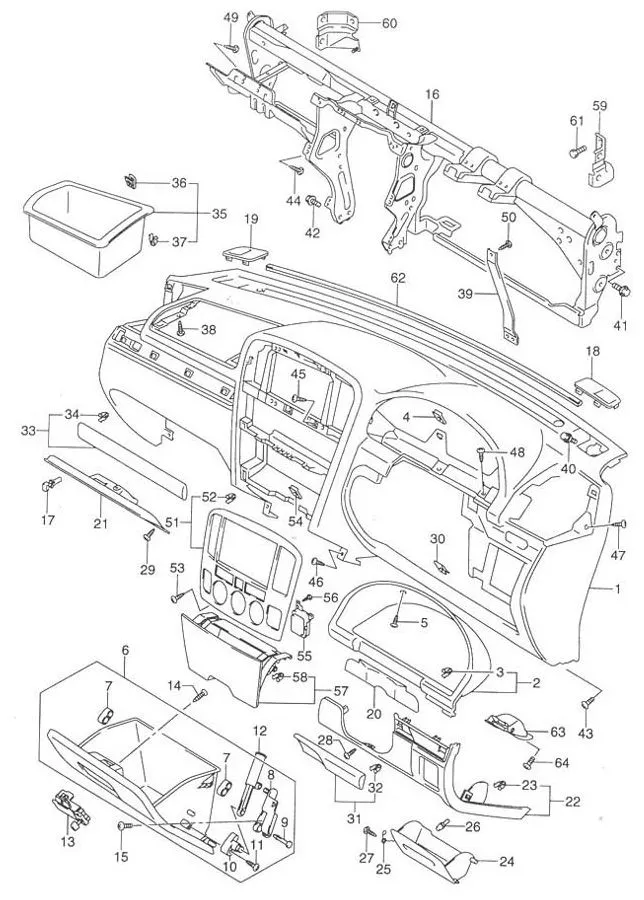

FIG.74 INSTRUMENT PANEL

FIG.74 INSTRUMENT PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 73111-50J00-P4Z		 PANEL, INSTRUMENT MAIN (GRAY) 1 -
2 DISCONTINUE
SUB: 73311-50J00-0CB		 PANEL, INSTRUMENT CLUSTER (BLACK) 1 -
3 09409-08326-000
SUB: 09409B08326N000		 •CLIP 2 Rp8.000
4 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000
5 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
6 DISCONTINUE
SUB: 73410-50J00-P4Z		 BOX, GLOVE (GRAY) 1 -
7 73413M65D00-000 •CUSHION 2 Rp6.500
8 DISCONTINUE
SUB: 73421-50J00-000		 •HINGE 1 -
9 73423-50G00-000 •PIN 1 Rp30.000
10 73422-57L00-000
SUB: 73422-50J00-000		 •ADAPTER, DAMPER 1 Rp53.500
11 03541-0412A-000
SUB: 03541-04123-000		 •SCREW 1 Rp3.500
12 73440-50J01-000
SUB: 73440-50J00-000		 DAMPER, GLOVE BOX 1 Rp107.000
13 DISCONTINUE
SUB: 73430-50810-P4Z		 LOCK, GLOVE BOX (GRAY) 1 -
14 DISCONTINUE
SUB: 03521-0416A-000		 SCREW 2 -
15 02142-0512A-000
SUB: 02142B05123N000		 SCREW 2 Rp3.500
16 DISCONTINUE
SUB: 73200-50J00-000		 MEMBER, STEERING SUPPORT 1 -
17 DISCONTINUE
SUB: 73461-77E00-000		 CUSHION, GLOVE BOX LID SIDE 2 -
18 DISCONTINUE
SUB: 73831-50J00-P4Z		 COVER, SPEAKER RH (GRAY) 1 -
19 DISCONTINUE
SUB: 73832-50J00-P4Z		 COVER, SPEAKER LH (GRAY) 1 -
20 DISCONTINUE
SUB: 73814-50J00-000		 BLIND, STEERING COLUMN HOLE 1 -
21 DISCONTINUE
SUB: 73813-65D00-P4Z		 COVER, GLOVE BOX LID (GRAY) 1 -
22 DISCONTINUE
SUB: 73811-50J00-P4Z		 COVER, STEERING COLUMN HOLE (GRAY) 1 -
23 09409-08326-000
SUB: 09409B08326N000		 •CLIP 4 Rp8.000
24 DISCONTINUE
SUB: 73822-65D00-P4Z		 POCKET, HOLE COVER (GRAY) 1 -
25 DISCONTINUE
SUB: 73823-65D00-000		 SPRING, COLUMN HOLE 1 -
26 73413M82C00-000 CUSHION 2 Rp11.500
27 03541-0412A-000
SUB: 03541-04123-000		 SCREW 1 Rp3.500
28 03141-0516B-000
SUB: 03142-05123-000		 SCREW 3 Rp3.500
29 03141-0516B-000
SUB: 03142-05123-000		 SCREW 3 Rp3.500
30 09148-05045-000
SUB: 09148B05045N000		 NUT 3 Rp4.000
31 DISCONTINUE
SUB: 73861-50J00-ZS4		 ORNAMENT, DRIVER SIDE (SILVER) 1 -
32 09409-08326-000
SUB: 09409B08326N000		 •CLIP 2 Rp8.000
33 DISCONTINUE
SUB: 73862-50J00-ZS4		 ORNAMENT, PASSENGER SIDE (SILVER) 1 -
34 09409-08326-000
SUB: 09409B08326N000		 •CLIP 4 Rp8.000
35 DISCONTINUE
SUB: 73921-50J00-P4Z		 TRAY, I/P UPPER (GRAY) 1 - N/AIR BAG
36 DISCONTINUE
SUB: 73822-60E00-000		 •CLIP 3 - N/AIR BAG
37 09409-08326-000
SUB: 09409-08325-000		 •CLIP, I/P UPPER 4 Rp8.000 N/AIR BAG
38 03541-0516A-000
SUB: 03541B05163N000		 SCREW 2 Rp3.500 N/AIR BAG
39 DISCONTINUE
SUB: 73817-65D00-000		 STAY, I/P DRIVER 1 -
40 DISCONTINUE
SUB: 01580-06163-000		 BOLT 2 -
41 73291-50G20-000
SUB: 73291-50G01-000		 BOLT, MEMBER SIDE 4 Rp42.500
42 01551-0816C-000
SUB: 01551-08163-000		 BOLT 4 Rp13.500
43 02142-0512A-000
SUB: 02142B05123N000		 SCREW 5 Rp3.500
44 03541-0516A-000
SUB: 03541B05163N000		 SCREW 2 Rp3.500
45 03141-0516B-000
SUB: 03142-05123-000		 SCREW 4 Rp3.500
46 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
47 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
48 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
49 03541-0516A-000
SUB: 03541B05163N000		 SCREW 2 Rp3.500
50 03541-0516A-000
SUB: 03541B05163N000		 SCREW 2 Rp3.500
51 73821-50J00-ZS4 GARNISH, I/P CTR (SILVER) 1 Rp888.000
52 09409-08326-000
SUB: 09409B08326N000		 •CLIP 6 Rp8.000
53 03141-0516B-000
SUB: 03142-05123-000		 SCREW 2 Rp3.500
54 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000
55 74522-54J00-5PK CAP, RR FAN SW (BLACK) 1 Rp73.000
56 03541-0512A-000
SUB: 03541-05123L000		 SCREW 1 Rp3.500
57 DISCONTINUE
SUB: 73840-50J00-P4Z		 BOX, CTR LOWER (GRAY) 1 -
58 09409-08326-000
SUB: 09409B08326N000		 •CLIP 4 Rp8.000
59 DISCONTINUE
SUB: 76451-65D10-000		 REINF, COWL BOX SIDE RH 1 -
60 DISCONTINUE
SUB: 76452-65D10-000		 REINF, COWL BOX SIDE LH 1 -
61 09100-08294-000 BOLT (8X13) 6 Rp18.000
62 DISCONTINUE
SUB: 73121-50J00-000		 SILENCER, I/P TOP 1 -
63 DISCONTINUE
SUB: 82150-60E00-P4Z		 LEVER, HOOD LATCH RELEASE (GRAY) 1 -
64 02142-0512A-000
SUB: 02142B05123N000		 SCREW 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
