ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 CHASSIS FRAMEFIG.65 BODY MOUNTINGFIG.66 FRONT HOOD PANELFIG.67 FRONT FENDERFIG.68 FRONT BODY PANELFIG.69 FLOOR PANELFIG.70 SIDE BODY PANELFIG.71 ROOF PANELFIG.72 FRONT BUMPERFIG.73 REAR BUMPERFIG.74 INSTRUMENT PANELFIG.75 VENTILATORFIG.76 HEATERFIG.77 HEATER BLOWERFIG.78 CONSOLE BOXFIG.79 FLOOR CARPETFIG.80 INTERIOR TRIMFIG.81 CAP/COVERFIG.82 FUEL LID OPENERFIG.83 ROOF LININGFIG.84 EMBLEMFIG.85 GARNISHFIG.86 TIRE CARRIERFIG.87 WINDOW GLASSFIG.88 FRONT DOOR PANELFIG.89 FRONT DOOR REGULATORFIG.90 FRONT DOOR LOCKFIG.91 REAR DOOR PANELFIG.92 REAR DOOR REGULATORFIG.93 REAR DOOR LOCKFIG.94 BACK DOOR PANELFIG.95 BACK DOOR LOCKFIG.96 MIRROR/SUNVISORFIG.97 SEAT BELTFIG.98 FRONT SEATFIG.99 REAR SEATFIG.100 FUEL TANKFIG.101 JACK/TOOLFIG.102 AIR CONDITIONER

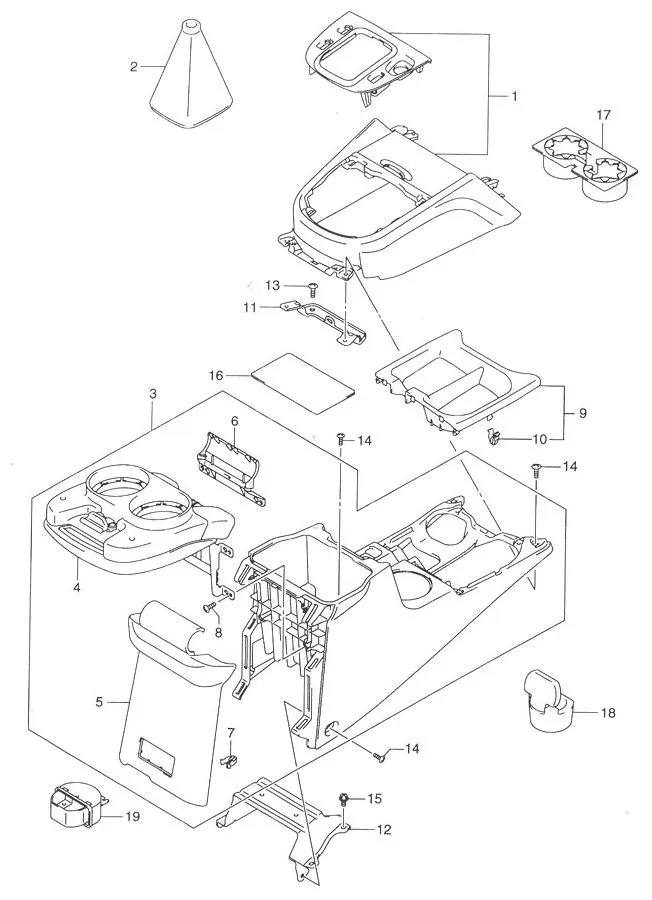

FIG.78 CONSOLE BOX

FIG.78 CONSOLE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 75810-50J00-KU6 BOX, CTR CONSOLE FR 1 Rp4.808.000
2 DISCONTINUE
SUB: 75830-50J00-5PK		 BOOT, SHIFT LEVER (BLACK) 1 -
3 DISCONTINUE
SUB: 75910-50J00-KT1		 BOX, FLOOR CONSOLE RR (GRAY/BLACK) 1 -
4 75912-50J00-KT1 •ARMREST, RR CONSOLE (GRAY/BLACK) 1 -
5 75914-50J00-P4Z •PANEL, FLOOR CONSOLE RR (GRAY 1 -
6 75915-50J00-P4Z •GARNISH, FLOOR CONSOLE RR 1 -
7 09409-08326-000
SUB: 09409B08326N000		 •CLIP 6 Rp8.000
8 03541-0516A-000
SUB: 03541B05163N000		 •SCREW 4 Rp3.500
9 DISCONTINUE
SUB: 75921-50J10-P4Z		 COVER, FLOOR CONSOLE REAR 1 -
10 09409-08326-000
SUB: 09409B08326N000		 •CLIP 4 Rp8.000
11 DISCONTINUE
SUB: 75851-50J00-000		 BRACKET, FLOOR CONSOLE BOX FR 1 -
12 DISCONTINUE
SUB: 75951-50J00-000		 BRACKET, FLOOR CONSOLE BOX RR 1 -
13 02142-0512A-000
SUB: 02142B05123N000		 SCREW 2 Rp3.500
14 02142-0512A-000
SUB: 02142B05123N000		 SCREW 4 Rp3.500
15 02162-0612B-000
SUB: 02162-06123-000		 BOLT, RR BRACKET 4 Rp16.000
16 DISCONTINUE
SUB: 75961-50J00-000		 SHEET, CONSOLE BOX INNER 1 -
17 DISCONTINUE
SUB: 75820-50J00-5PK		 HOLDER, CUP (BLACK) 1 -
18 DISCONTINUE
SUB: 89810-50J01-5PK		 ASHTRAY, FRONT (BLACK) 1 -
19 DISCONTINUE
SUB: 89850-50J00-P4Z		 ASHTRAY, REAR (GRAY) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
