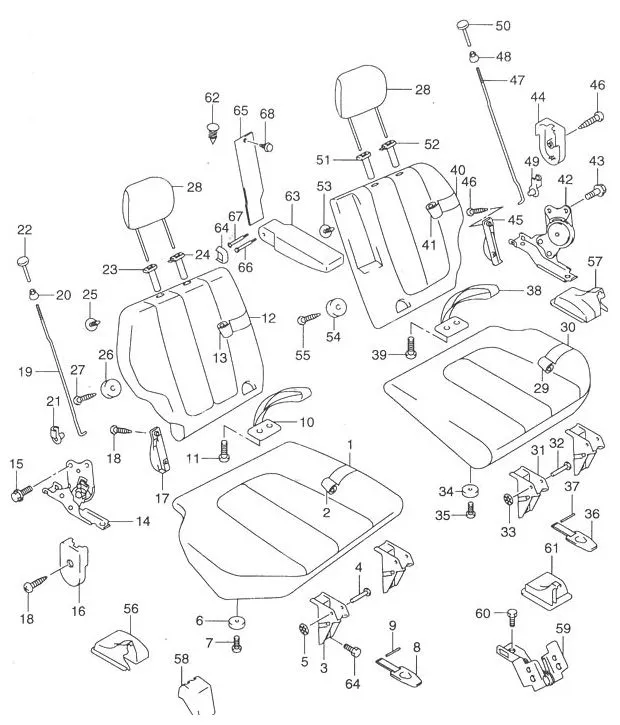

FIG.99 REAR SEAT

FIG.99 REAR SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 87180B82DN0NKK8		 TRIM, RR CUSHION RH (GRAY) 1 -
2 DISCONTINUE
SUB: 87105B82DL0N000		 CUSHION ASSY, REAR RH 1 -
3 DISCONTINUE
SUB: 87151-65DL0-000		 •LEG, REAR CUSHION 2 -
4 DISCONTINUE
SUB: 87259-65DL0-000		 •PIN, REAR SEAT HINGE 2 -
5 DISCONTINUE
SUB: 09148-08002-000		 •NUT 2 -
6 DISCONTINUE
SUB: 87159-65DA0-000		 •CUSHION, REAR CUSHION 5 -
7 03541-0516A-000
SUB: 03541B05163N000		 •SCREW 5 Rp3.500
8 DISCONTINUE
SUB: 87420-65DA0-000		 •BAND, REAR STOPPER 1 -
9 DISCONTINUE
SUB: 87423-65DA0-000		 •PIN, REAR STOPPER BAND 1 -
10 DISCONTINUE
SUB: 87460-65DA0-000		 •LOCK, REAR CUSHION 1 -
11 03241-0512A-000
SUB: 03242-05123-000		 •SCREW 2 Rp3.500
12 DISCONTINUE
SUB: 87305B82DP0N000		 BACK ASSY, REAR RH 1 -
13 DISCONTINUE
SUB: 87380B82DP0N000		 TRIM, REAR BACK RH (GRAY) 1 -
14 DISCONTINUE
SUB: 87210-65D30-000		 RECLINING ASSY, REAR RH 1 -
15 01550-1020A-000
SUB: 01550-10203-000		 BOLT 2 Rp21.000
16 DISCONTINUE
SUB: 87221-65DL0-P4Z		 COVER, RECLINING OUTSIDE RH (GRAY) 1 -
17 DISCONTINUE
SUB: 87222-65DL0-P4Z		 COVER, RECLINING INSIDE RH (GRAY) 1 -
18 03242-0510B-000
SUB: 03242-05103-000		 SCREW 3 Rp18.000
19 DISCONTINUE
SUB: 87215-65DL0-000		 ROD, RECLINING 1 -
20 87319-80G00-000
SUB: 87319B80G00N000		 SILENCER 1 Rp30.500
21 09403-04306-000 CLAMP 1 Rp24.000
22 87211M74G10-P4Z
SUB: 87211M74G00-P4Z		 KNOB, RECLINING (GRAY) 1 Rp6.000
23 DISCONTINUE
SUB: 85341-72C10-T01		 GUIDE, HEADRESTRAINT (GRAY) 1 -
24 DISCONTINUE
SUB: 85840-72C10-T01		 GUIDE, HEADRESTRAINT (GRAY) 1 -
25 09409-10302-P4Z CLIP (GRAY) 10 Rp19.500
26 DISCONTINUE
SUB: 87429-65DA0-P4Z		 GUIDE, STOPPER BAND (GRAY) 1 -
27 03242-0510B-000
SUB: 03242-05103-000		 SCREW 1 Rp18.000
28 DISCONTINUE
SUB: 86401B82DN0NR9P		 HEADRESTRAINT ASSY (GRAY) 2 -
29 DISCONTINUE
SUB: 87680B82DN0NKK8		 TRIM, REAR CUSHION LH (GRAY) 1 -
30 DISCONTINUE
SUB: 87106B82DN0N000		 CUSHION SUB ASSY, REAR LH 1 -
31 DISCONTINUE
SUB: 87151-65DL0-000		 •LEG, REAR CUSHION 2 -
32 DISCONTINUE
SUB: 87259-65DL0-000		 •PIN, REAR SEAT HINGE 2 -
33 DISCONTINUE
SUB: 09148-08002-000		 •NUT 2 -
34 DISCONTINUE
SUB: 87159-65DA0-000		 •CUSHION, REAR CUSHION 5 -
35 03541-0516A-000
SUB: 03541B05163N000		 •SCREW 5 Rp3.500
36 DISCONTINUE
SUB: 87420-65DA0-000		 •BAND, REAR STOPPER 1 -
37 DISCONTINUE
SUB: 87423-65DA0-000		 •PIN, REAR STOPPER BAND 1 -
38 DISCONTINUE
SUB: 87460-65DA0-000		 •LOCK, REAR CUSHION 1 -
39 03241-0512A-000
SUB: 03242-05123-000		 •SCREW 2 Rp3.500
40 DISCONTINUE
SUB: 87306B82DN0N000		 BACK SUB ASSY, REAR LH 1 -
41 DISCONTINUE
SUB: 87880B82DN0N000		 TRIM, REAR BACK LH (GRAY) 1 -
42 DISCONTINUE
SUB: 87710-65D30-000		 RECLINING ASSY, REAR LH 1 -
43 01550-1020A-000
SUB: 01550-10203-000		 BOLT 2 Rp21.000
44 DISCONTINUE
SUB: 87721-65DL0-P4Z		 COVER, RECLINING OUTSIDE LH (GRAY) 1 -
45 DISCONTINUE
SUB: 87722-65DL0-P4Z		 COVER, RECLINING INSIDE LH (GRAY) 1 -
46 03242-0510B-000
SUB: 03242-05103-000		 SCREW 3 Rp18.000
47 DISCONTINUE
SUB: 87715-65DL0-000		 ROD, RECLINING 1 -
48 87319-80G00-000
SUB: 87319B80G00N000		 SILENCER 1 Rp30.500
49 09403-04306-000 CLAMP 1 Rp24.000
50 87211M74G10-P4Z
SUB: 87211M74G00-P4Z		 KNOB, RECLINING (GRAY) 1 Rp6.000
51 DISCONTINUE
SUB: 85341-72C10-T01		 GUIDE, HEADRESTRAINT (GRAY) 1 -
52 DISCONTINUE
SUB: 85840-72C10-T01		 GUIDE, HEADRESTRAINT (GRAY) 1 -
53 09409-10302-P4Z CLIP (GRAY) 10 Rp19.500
54 DISCONTINUE
SUB: 87429-65DA0-P4Z		 GUIDE, STOPPER BAND (GRAY) 1 -
55 03242-0510B-000
SUB: 03242-05103-000		 SCREW 1 Rp18.000
56 DISCONTINUE
SUB: 87222-65D10-P4Z		 COVER, RECLINING BRACKET RH (GRAY) 1 -
57 DISCONTINUE
SUB: 87722-65D10-P4Z		 COVER, RECLINING BRACKET LH (GRAY) 1 -
58 DISCONTINUE
SUB: 87285-65D11-P4Z		 COVER, CUSHION LEG (GRAY) 4 -
59 DISCONTINUE
SUB: 87950-65D10-000		 HINGE, REAR SEAT CENTER 1 -
60 01551-1020A-000
SUB: 01551-10203-000		 BOLT 16 Rp18.000
61 DISCONTINUE
SUB: 87995-65D10-P4Z		 COVER, RR CENTER HINGE (GRAY) 1 -
62 09409-10302-P4Z CLIP (GRAY) 6 Rp19.500
63 DISCONTINUE
SUB: 87501B82DP0N000		 ARMREST ASSY, REAR (GRAY) 1 -
64 DISCONTINUE
SUB: 87552-65DC0-P4Z		 COVER, ARMREST (GRAY) 1 -
65 DISCONTINUE
SUB: 87554-65DC0-P4Z		 BOARD (GRAY) 1 -
66 DISCONTINUE
SUB: 87571-65DC0-000		 SHAFT 1 -
67 DISCONTINUE
SUB: 87572-65DC0-000		 SHAFT 1 -
68 DISCONTINUE
SUB: 09409-07329-000		 CLIP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
