ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 CHASSIS FRAMEFIG.65 BODY MOUNTINGFIG.66 FRONT HOOD PANELFIG.67 FRONT FENDERFIG.68 FRONT BODY PANELFIG.69 FLOOR PANELFIG.70 SIDE BODY PANELFIG.71 ROOF PANELFIG.72 FRONT BUMPERFIG.73 REAR BUMPERFIG.74 INSTRUMENT PANELFIG.75 VENTILATORFIG.76 HEATERFIG.77 HEATER BLOWERFIG.78 CONSOLE BOXFIG.79 FLOOR CARPETFIG.80 INTERIOR TRIMFIG.81 CAP/COVERFIG.82 FUEL LID OPENERFIG.83 ROOF LININGFIG.84 EMBLEMFIG.85 GARNISHFIG.86 TIRE CARRIERFIG.87 WINDOW GLASSFIG.88 FRONT DOOR PANELFIG.89 FRONT DOOR REGULATORFIG.90 FRONT DOOR LOCKFIG.91 REAR DOOR PANELFIG.92 REAR DOOR REGULATORFIG.93 REAR DOOR LOCKFIG.94 BACK DOOR PANELFIG.95 BACK DOOR LOCKFIG.96 MIRROR/SUNVISORFIG.97 SEAT BELTFIG.98 FRONT SEATFIG.99 REAR SEATFIG.100 FUEL TANKFIG.101 JACK/TOOLFIG.102 AIR CONDITIONER

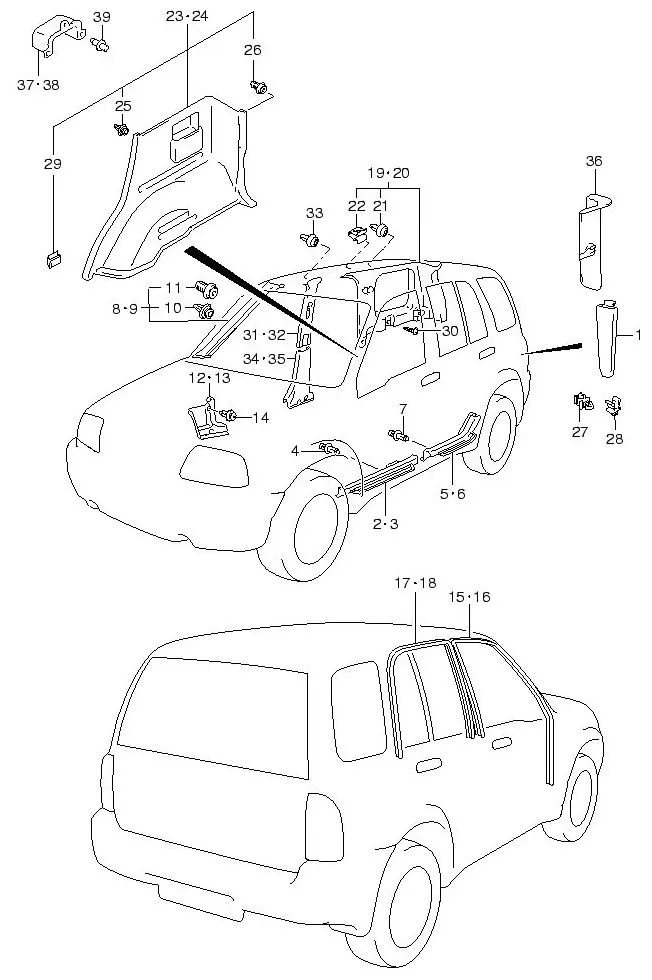

FIG.80 INTERIOR TRIM

FIG.80 INTERIOR TRIM
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 76331-65D00-000		 CASE, JACK HANDLE 1 -
2 76131-65D00-P4Z SCUFF, SIDE SILL FR RH (GRAY) 1 Rp710.000
3 76141-65D00-P4Z SCUFF, SIDE SILL FR LH (GRAY) 1 Rp710.000
4 09409-06314-P4Z CLIP (GRAY) 6 Rp22.000
5 76171-65D00-P4Z SCUFF, SIDE SILL RR RH (GRAY) 1 Rp450.500
6 76181-65D00-P4Z SCUFF, SIDE SILL RR LH (GRAY) 1 Rp450.500
7 09409-06314-P4Z CLIP (GRAY) 6 Rp22.000
8 DISCONTINUE
SUB: 76240-65D21-6GS		 TRIM, FR PLR UPPER RH (GRAY) 1 -
9 DISCONTINUE
SUB: 76250-65D21-6GS		 TRIM, FR PLR UPPER LH (GRAY) 1 -
10 83714M62B00-000
SUB: 09409M08320-000		 •CLIP 2 Rp14.500
11 09409-08322-000 •CLIP 2 Rp17.500
12 DISCONTINUE
SUB: 76111-65D00-P4Z		 TRIM, FR PLR LOWER RH (GRAY) 1 -
13 76121-65D10-P4Z TRIM, FR PLR LOWER LH (GRAY) 1 Rp474.000
14 09409M06322-P4Z CLIP (GRAY) 4 Rp4.500
15 DISCONTINUE
SUB: 76311-65D00-5PK		 TRIM, FR DR OPENING RH (BLACK) 1 -
16 DISCONTINUE
SUB: 76312-65D00-5PK		 TRIM, FR DR OPENING LH (BLACK) 1 -
17 DISCONTINUE
SUB: 76321-65D00-5PK		 TRIM, RR DR OPENING RH (BLACK) 1 -
18 76322-65D00-5PK TRIM, RR DR OPENING LH (BLACK) 1 Rp905.000
19 DISCONTINUE
SUB: 76280-65D01-6GS		 TRIM, RR QTR UPPER RH (GRAY) 1 -
20 DISCONTINUE
SUB: 76290-65D01-6GS		 TRIM, RR QTR UPPER LH (GRAY) 1 -
21 83714M62B00-000
SUB: 09409M08320-000		 •CLIP 8 Rp14.500
22 09409-10308-000
SUB: 09409B10308N000		 •CLIP 2 Rp6.500
23 DISCONTINUE
SUB: 76210-65D03-P4Z		 TRIM, RR QTR LOWER RH (GRAY) 1 -
24 DISCONTINUE
SUB: 76220-65D03-P4Z		 TRIM, RR QTR LOWER LH (GRAY) 1 -
25 83714M62B00-000
SUB: 09409M08320-000		 •CLIP 8 Rp14.500
26 09409-08322-000 •CLIP 4 Rp17.500
27 09403-08326-000 •CLAMP, LH 1 Rp19.500
28 09403-13307-000 •CLIP, LH 1 Rp29.000
29 DISCONTINUE
SUB: 76217-65D01-000		 •CLIP 2 -
30 03141M0612A-000
SUB: 03141-06123-000		 SCREW 4 Rp4.500
31 DISCONTINUE
SUB: 76260-65D00-6GS		 TRIM, CTR PLR UPPER RH (GRAY) 1 -
32 DISCONTINUE
SUB: 76270-65D00-6GS		 TRIM, CTR PLR UPPER LH (GRAY) 1 -
33 83714M62B00-000
SUB: 09409M08320-000		 •CLIP 4 Rp14.500
34 DISCONTINUE
SUB: 76151-65D00-P4Z		 TRIM, CTR PLR LOWER RH (GRAY) 1 -
35 DISCONTINUE
SUB: 76161-65D00-P4Z		 TRIM, CTR PLR LOWER LH (GRAY) 1 -
36 DISCONTINUE
SUB: 76230-65D10-P4Z		 LID, REAR QUARTER TRIM (GRAY) 1 -
37 DISCONTINUE
SUB: 76350-65D00-000		 DUCT, REAR QUARTER RH 1 -
38 DISCONTINUE
SUB: 76360-65D00-000		 DUCT, REAR QUARTER LH 1 -
39 09409-06314-5PK
SUB: 09409B06314N5PK		 CLIP (BLACK) 6 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
