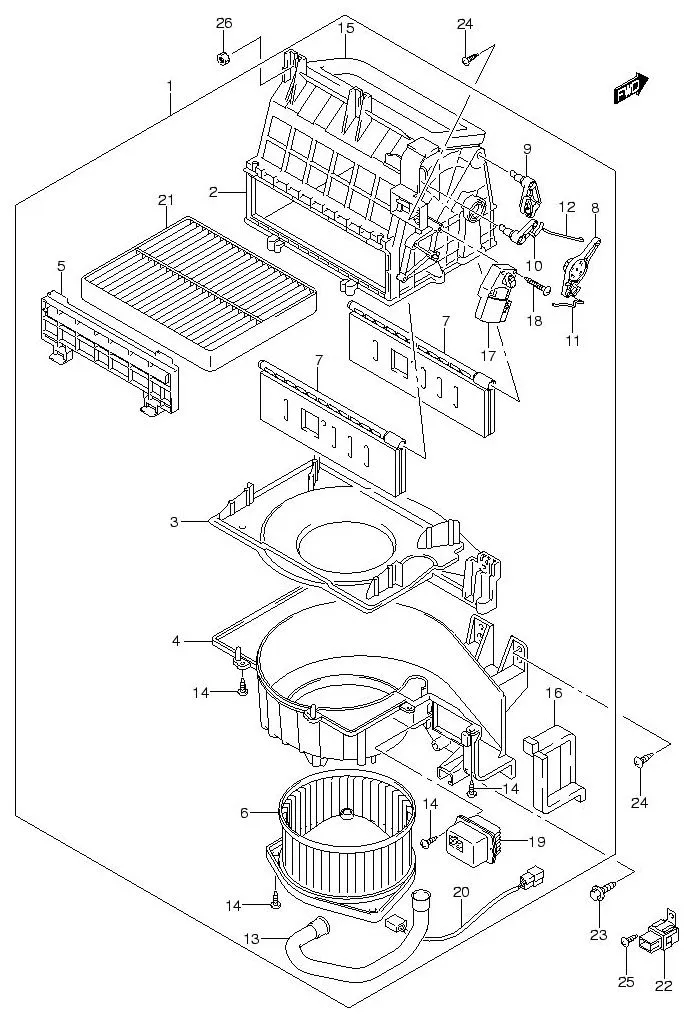

FIG.77 HEATER BLOWER

FIG.77 HEATER BLOWER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 74200B54J00N000		 BLOWER UNIT 1 -
2 DISCONTINUE
SUB: 74211B54J00N000		 •CASE, INTAKE 1 -
3 DISCONTINUE
SUB: 74212B54J00N000		 •SCROLL, UPPER 1 -
4 DISCONTINUE
SUB: 74213B54J00N000		 •SCROLL, LOWER 1 -
5 DISCONTINUE
SUB: 74214B54J00N000		 •COVER, FILTER 1 -
6 DISCONTINUE
SUB: 74250B54J00N000		 •MOTOR, FAN 1 -
7 DISCONTINUE
SUB: 74271B54J00N000		 •DOOR, MODE 2 -
8 DISCONTINUE
SUB: 74281B54J00N000		 •LEVER, MAIN 1 -
9 DISCONTINUE
SUB: 74282B54J00N000		 •LEVER, DOOR NO.1 1 -
10 DISCONTINUE
SUB: 74283B54J00N000		 •LEVER, DOOR NO.2 1 -
11 DISCONTINUE
SUB: 74284B54J00N000		 •ROD 1 -
12 DISCONTINUE
SUB: 74285B54J00N000		 •ROD, DOOR LEVER 1 -
13 DISCONTINUE
SUB: 74251B54J00N000		 •HOSE, AIR 1 -
14 02112-0512A-000
SUB: 02112B05123N000		 •SCREW 11 Rp2.500
15 DISCONTINUE
SUB: 74215-54J00-000		 •PACKING, INTAKE 1 -
16 DISCONTINUE
SUB: 74216B54J00N000		 •PACKING, JOINT 1 -
17 DISCONTINUE
SUB: 95652B54J00N000		 •ACTUATOR, FRESH AIR 1 -
18 DISCONTINUE
SUB: 74175B54J00N000		 •SCREW 2 -
19 DISCONTINUE
SUB: 95626B65D00N000		 •POWER TRANSISTOR 1 -
20 DISCONTINUE
SUB: 74252B54J00N000		 •WIRE HARNESS 1 -
21 DISCONTINUE
SUB: 95861B54J00N000		 •FILTER 1 -
22 DISCONTINUE
SUB: 74291-54G00-000		 RELAY, BLOWER MOTOR 1 -
23 DISCONTINUE
SUB: 09136-06140-000		 SCREW (6X25) 2 -
24 03541-0516A-000
SUB: 03541B05163N000		 SCREW 2 Rp3.500
25 03541-0512A-000
SUB: 03541-05123L000		 SCREW 1 Rp3.500
26 09159-06081-000 NUT 3 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
