ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 CHASSIS FRAMEFIG.65 BODY MOUNTINGFIG.66 FRONT HOOD PANELFIG.67 FRONT FENDERFIG.68 FRONT BODY PANELFIG.69 FLOOR PANELFIG.70 SIDE BODY PANELFIG.71 ROOF PANELFIG.72 FRONT BUMPERFIG.73 REAR BUMPERFIG.74 INSTRUMENT PANELFIG.75 VENTILATORFIG.76 HEATERFIG.77 HEATER BLOWERFIG.78 CONSOLE BOXFIG.79 FLOOR CARPETFIG.80 INTERIOR TRIMFIG.81 CAP/COVERFIG.82 FUEL LID OPENERFIG.83 ROOF LININGFIG.84 EMBLEMFIG.85 GARNISHFIG.86 TIRE CARRIERFIG.87 WINDOW GLASSFIG.88 FRONT DOOR PANELFIG.89 FRONT DOOR REGULATORFIG.90 FRONT DOOR LOCKFIG.91 REAR DOOR PANELFIG.92 REAR DOOR REGULATORFIG.93 REAR DOOR LOCKFIG.94 BACK DOOR PANELFIG.95 BACK DOOR LOCKFIG.96 MIRROR/SUNVISORFIG.97 SEAT BELTFIG.98 FRONT SEATFIG.99 REAR SEATFIG.100 FUEL TANKFIG.101 JACK/TOOLFIG.102 AIR CONDITIONER

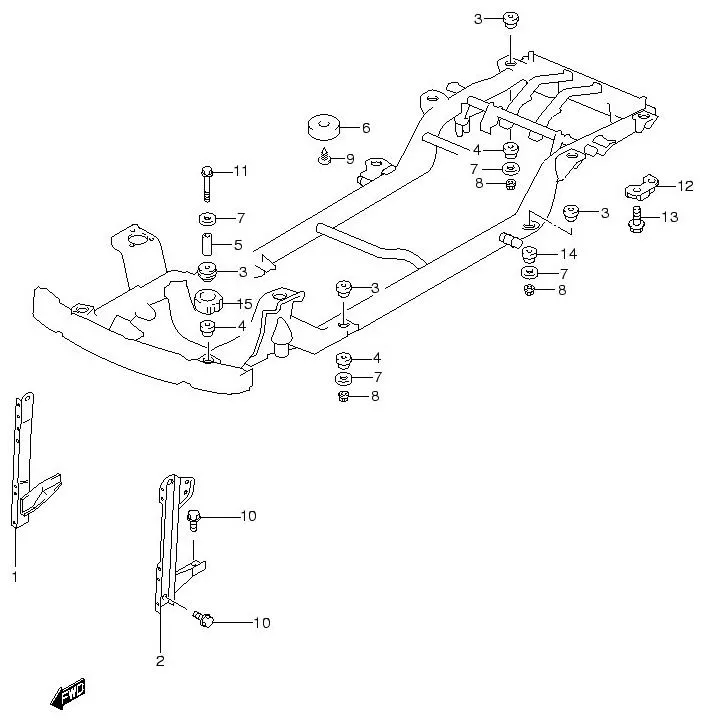

FIG.65 BODY MOUNTING

FIG.65 BODY MOUNTING
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 71410-65D00-000		 STAY, RADIATOR RH 1 -
2 DISCONTINUE
SUB: 71420-65D10-000		 STAY, RADIATOR LH 1 -
3 71511-65D00-000 CUSHION, BODY MOUNTING NO.1 8 Rp185.000
4 71512-65D00-000 CUSHION, BODY MOUNTING NO.2 6 Rp114.500
5 71515-65D01-000
SUB: 71515-65D00-000		 COLLAR, BODY 1ST MOUNTING 2 Rp50.000
6 71521-56B00-000 PAD, BODY MOUNTING 2 Rp71.000
7 71632-83011-000
SUB: 71632-83010-000		 BOTTOM, BODY MOUNTING 8 Rp51.000
8 09159-10060-000 NUT 6 Rp14.000
9 09409-10302-5PK CLIP (BLACK) 2 Rp18.500
10 01551-0816C-000
SUB: 01551-08163-000		 BOLT 4 Rp13.500
11 09103-10299-000 BOLT 2 Rp42.000
12 DISCONTINUE
SUB: 71451-65D00-000		 HOOK, SHIPPING REAR 1 -
13 09103-12043-000 BOLT (12X20) 2 Rp33.500
14 71512-65D10-000 CUSHION, BODY 3RD MOUNTING NO.2 2 Rp117.000
15 71516-65D00-000 CUSHION, BODY MOUNTING NO.3 2 Rp233.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
