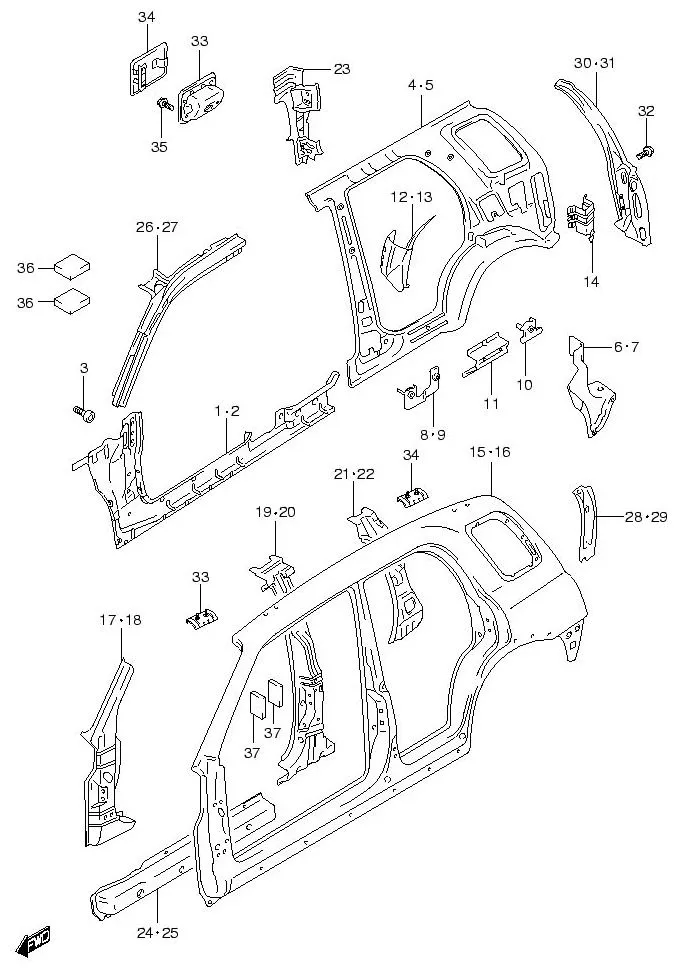

FIG.70 SIDE BODY PANEL

FIG.70 SIDE BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 61480-65D70-000		 PANEL, FR PLR INNER LOWER RH 1 -
2 DISCONTINUE
SUB: 61580-65D90-000		 PANEL, FR PLR INNER LOWER LH 1 -
3 DISCONTINUE
SUB: 09119-06090-000		 BOLT (6X30) 3 -
4 DISCONTINUE
SUB: 63111-65D11-000		 PANEL, SIDE BODY INNER RH 1 -
5 DISCONTINUE
SUB: 63511-65D11-000		 PANEL, SIDE BODY INNER LH 1 -
6 DISCONTINUE
SUB: 63121-65D00-000		 PANEL, RR WHEEL HSG OUTER RH 1 -
7 DISCONTINUE
SUB: 63521-65D00-000		 PANEL, RR WHEEL HSG OUTER LH 1 -
8 DISCONTINUE
SUB: 63131-65D00-000		 REINF, CTR PLR RETRACTOR RH 1 -
9 DISCONTINUE
SUB: 63531-65D00-000		 REINF, CTR PLR RETRACTOR LH 1 -
10 DISCONTINUE
SUB: 63141-65D00-000		 REINF, SEAT BELT RETRACTOR 2 -
11 DISCONTINUE
SUB: 63151-65D10-000		 REINF, SIDE SILL RR 2 -
12 DISCONTINUE
SUB: 63210-65D00-000		 EXTENSION, RR WHEEL HSG RH 1 -
13 DISCONTINUE
SUB: 63610-65D00-000		 EXTENSION, RR WHEEL HSG LH 1 -
14 DISCONTINUE
SUB: 63551-65D01-000		 BRACKET, JACK 1 -
15 DISCONTINUE
SUB: 64111-65D40-000		 PANEL, SIDE BODY OUTER RH 1 -
16 DISCONTINUE
SUB: 64511-65D40-000		 PANEL, SIDE BODY OUTER LH 1 -
17 DISCONTINUE
SUB: 64120-65D01-000		 REINF, FR PILLAR RH 1 -
18 DISCONTINUE
SUB: 64520-65D01-000		 REINF, FR PILLAR LH 1 -
19 DISCONTINUE
SUB: 64130-65D03-000		 REINF, CTR PILLAR RH 1 -
20 DISCONTINUE
SUB: 64530-65D03-000		 REINF, CTR PILLAR LH 1 -
21 DISCONTINUE
SUB: 64140-65D01-000		 REINF, RR PILLAR RH 1 -
22 DISCONTINUE
SUB: 64540-65D01-000		 REINF, RR PILLAR LH 1 -
23 DISCONTINUE
SUB: 64150-65D10-000		 REINF, BACK PILLAR RH 1 -
24 DISCONTINUE
SUB: 64161-65D10-000		 REINF, SIDE SILL RH 1 -
25 DISCONTINUE
SUB: 64561-65D10-000		 REINF, SIDE SILL LH 1 -
26 DISCONTINUE
SUB: 64210-65D02-000		 PANEL, FR PILLAR INNER RH 1 -
27 DISCONTINUE
SUB: 64610-65D02-000		 PANEL, FR PILLAR INNER LH 1 -
28 DISCONTINUE
SUB: 64221-65D01-000		 PANEL, AIR OUTLET RH 1 -
29 DISCONTINUE
SUB: 64621-65D01-000		 PANEL, AIR OUTLET LH 1 -
30 DISCONTINUE
SUB: 64231-65D12-000		 PANEL, BACK PILLAR OUTER RH 1 -
31 DISCONTINUE
SUB: 64630-52D02-000		 PANEL, BACK PILLAR OUTER LH 1 -
32 09122-76003-000 SCREW, BACK PILLAR 2 Rp15.000
33 DISCONTINUE
SUB: 64241-65D00-000		 BOX, FUEL INLET 1 -
34 65950-65D04-000 LID, FUEL INLET 1 Rp543.000
35 02162-0510A-000
SUB: 02162-05103-000		 SCREW 2 Rp3.000
36 83921-82C00-000 PAD 0 Rp51.000
37 83921-82C00-000 PAD 0 Rp51.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
