ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 CHASSIS FRAMEFIG.65 BODY MOUNTINGFIG.66 FRONT HOOD PANELFIG.67 FRONT FENDERFIG.68 FRONT BODY PANELFIG.69 FLOOR PANELFIG.70 SIDE BODY PANELFIG.71 ROOF PANELFIG.72 FRONT BUMPERFIG.73 REAR BUMPERFIG.74 INSTRUMENT PANELFIG.75 VENTILATORFIG.76 HEATERFIG.77 HEATER BLOWERFIG.78 CONSOLE BOXFIG.79 FLOOR CARPETFIG.80 INTERIOR TRIMFIG.81 CAP/COVERFIG.82 FUEL LID OPENERFIG.83 ROOF LININGFIG.84 EMBLEMFIG.85 GARNISHFIG.86 TIRE CARRIERFIG.87 WINDOW GLASSFIG.88 FRONT DOOR PANELFIG.89 FRONT DOOR REGULATORFIG.90 FRONT DOOR LOCKFIG.91 REAR DOOR PANELFIG.92 REAR DOOR REGULATORFIG.93 REAR DOOR LOCKFIG.94 BACK DOOR PANELFIG.95 BACK DOOR LOCKFIG.96 MIRROR/SUNVISORFIG.97 SEAT BELTFIG.98 FRONT SEATFIG.99 REAR SEATFIG.100 FUEL TANKFIG.101 JACK/TOOLFIG.102 AIR CONDITIONER

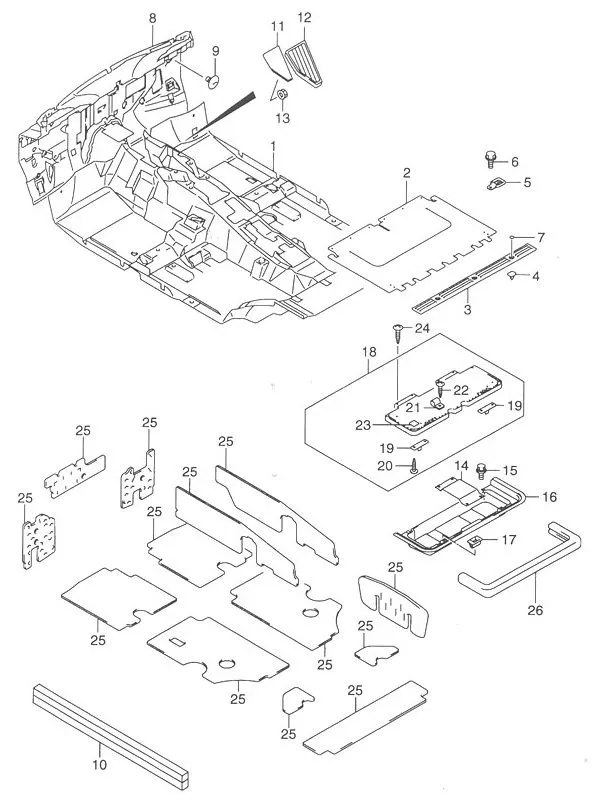

FIG.79 FLOOR CARPET

FIG.79 FLOOR CARPET
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 75160-65DA1-R9V		 CARPET, FRONT FLOOR (GRAY) 1 -
2 DISCONTINUE
SUB: 75180-65D50-R9V		 CARPET, REAR FLOOR (GRAY) 1 -
3 75191-65D00-P4Z GARNISH, MAT END (GRAY) 1 Rp508.500
4 77259-71B00-000 CLIP 4 Rp25.500
5 DISCONTINUE
SUB: 75510-54F00-000		 HOOK, LUGGAGE MAT END 4 -
6 02162-0616A-000
SUB: 02162-06163L000		 BOLT 8 Rp3.000
7 DISCONTINUE
SUB: 75192-65D00-P4Z		 CAP, MAT END GARNISH (GRAY) 3 -
8 DISCONTINUE
SUB: 75210-65D30-000		 SILENCER, DASH PANEL 1 -
9 09148-05042-000 NUT 7 Rp17.500
10 DISCONTINUE
SUB: 75221-65D00-000		 SILENCER, FRAME UPPER 2 -
11 DISCONTINUE
SUB: 75810-56B00-000		 PEDAL, FOOTREST 1 -
12 DISCONTINUE
SUB: 75821-56B00-000		 PAD, FOOTREST PEDAL 1 -
13 08316-1008A-000
SUB: 08316B10083N000		 NUT 2 Rp3.500
14 DISCONTINUE
SUB: 75561-65D10-000		 MEMBER, REAR UNDER BOX 1 -
15 DISCONTINUE
SUB: 09119-10071-000		 BOLT 4 -
16 DISCONTINUE
SUB: 75571-65D10-P4Z		 GARNISH, REAR UNDER BOX (GRAY) 1 -
17 DISCONTINUE
SUB: 75572-65D10-000		 LATCH, REAR UNDER BOX LOWER 2 -
18 DISCONTINUE
SUB: 75540-65D10-5PK		 LID, REAR UNDER BOX (BLACK) 1 -
19 DISCONTINUE
SUB: 75542-65D10-000		 •STRIKER, REAR UNDER BOX 2 -
20 03541-0410A-000
SUB: 03541-04103-000		 •SCREW 4 Rp11.000
21 75481-85520-000 •BAND, SEAT UNDER BOX LID 2 -
22 03541-0412A-000
SUB: 03541-04123-000		 •SCREW 2 Rp3.500
23 DISCONTINUE
SUB: 76212-50D00-5PK		 •CLIP (BLACK) 4 -
24 03141-0630B-000 SCREW 4 -
25 99611-60A01-000 SHEET, SILENCER (800X1000X3) 0 Rp1.210.000 CUT AS REQUIRED
26 DISCONTINUE
SUB: 75581-65D10-000		 MOLDING, REAR UNDER BOX 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
