ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 CHASSIS FRAMEFIG.65 BODY MOUNTINGFIG.66 FRONT HOOD PANELFIG.67 FRONT FENDERFIG.68 FRONT BODY PANELFIG.69 FLOOR PANELFIG.70 SIDE BODY PANELFIG.71 ROOF PANELFIG.72 FRONT BUMPERFIG.73 REAR BUMPERFIG.74 INSTRUMENT PANELFIG.75 VENTILATORFIG.76 HEATERFIG.77 HEATER BLOWERFIG.78 CONSOLE BOXFIG.79 FLOOR CARPETFIG.80 INTERIOR TRIMFIG.81 CAP/COVERFIG.82 FUEL LID OPENERFIG.83 ROOF LININGFIG.84 EMBLEMFIG.85 GARNISHFIG.86 TIRE CARRIERFIG.87 WINDOW GLASSFIG.88 FRONT DOOR PANELFIG.89 FRONT DOOR REGULATORFIG.90 FRONT DOOR LOCKFIG.91 REAR DOOR PANELFIG.92 REAR DOOR REGULATORFIG.93 REAR DOOR LOCKFIG.94 BACK DOOR PANELFIG.95 BACK DOOR LOCKFIG.96 MIRROR/SUNVISORFIG.97 SEAT BELTFIG.98 FRONT SEATFIG.99 REAR SEATFIG.100 FUEL TANKFIG.101 JACK/TOOLFIG.102 AIR CONDITIONER

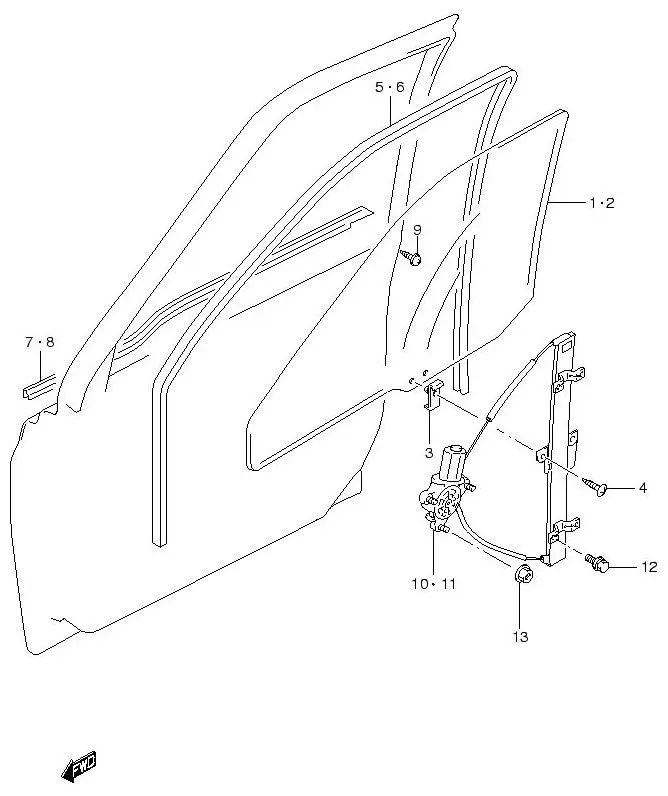

FIG.89 FRONT DOOR REGULATOR

FIG.89 FRONT DOOR REGULATOR
No No. Part Description Qty Price Per Pcs Remarks
1 84531-65D01-000 GLASS, WINDOW RH 1 -
2 84536-65D01-000 GLASS, WINDOW LH 1 -
3 83611-65D00-000 HOLDER, DOOR GLASS 4 Rp53.500
4 03241-0620A-000 SCREW, HOLDER 4 -
5 83660-65D00-000 RUN, FR DR GLASS RH 1 Rp840.500
6 83680-65D00-000 RUN, FR DR GLASS LH 1 Rp840.500
7 83810-65D00-000 WEATHERSTRIP, OUT RH 1 Rp1.044.000
8 83820-65D00-000 WEATHERSTRIP, OUT LH 1 Rp1.044.000
9 DISCONTINUE
SUB: 09136-05059-000		 SCREW 2 -
10 83401-65D10-000 REGULATOR ASSY, FR WINDOW RH 1 Rp4.924.000
11 83402-65D10-000 REGULATOR ASSY, FR WINDOW LH 1 Rp4.924.000
12 DISCONTINUE
SUB: 01580-06123-000		 BOLT 6 -
13 08361-1506A-000
SUB: 08361-15063-000		 NUT 6 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
