ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 CHASSIS FRAMEFIG.65 BODY MOUNTINGFIG.66 FRONT HOOD PANELFIG.67 FRONT FENDERFIG.68 FRONT BODY PANELFIG.69 FLOOR PANELFIG.70 SIDE BODY PANELFIG.71 ROOF PANELFIG.72 FRONT BUMPERFIG.73 REAR BUMPERFIG.74 INSTRUMENT PANELFIG.75 VENTILATORFIG.76 HEATERFIG.77 HEATER BLOWERFIG.78 CONSOLE BOXFIG.79 FLOOR CARPETFIG.80 INTERIOR TRIMFIG.81 CAP/COVERFIG.82 FUEL LID OPENERFIG.83 ROOF LININGFIG.84 EMBLEMFIG.85 GARNISHFIG.86 TIRE CARRIERFIG.87 WINDOW GLASSFIG.88 FRONT DOOR PANELFIG.89 FRONT DOOR REGULATORFIG.90 FRONT DOOR LOCKFIG.91 REAR DOOR PANELFIG.92 REAR DOOR REGULATORFIG.93 REAR DOOR LOCKFIG.94 BACK DOOR PANELFIG.95 BACK DOOR LOCKFIG.96 MIRROR/SUNVISORFIG.97 SEAT BELTFIG.98 FRONT SEATFIG.99 REAR SEATFIG.100 FUEL TANKFIG.101 JACK/TOOLFIG.102 AIR CONDITIONER

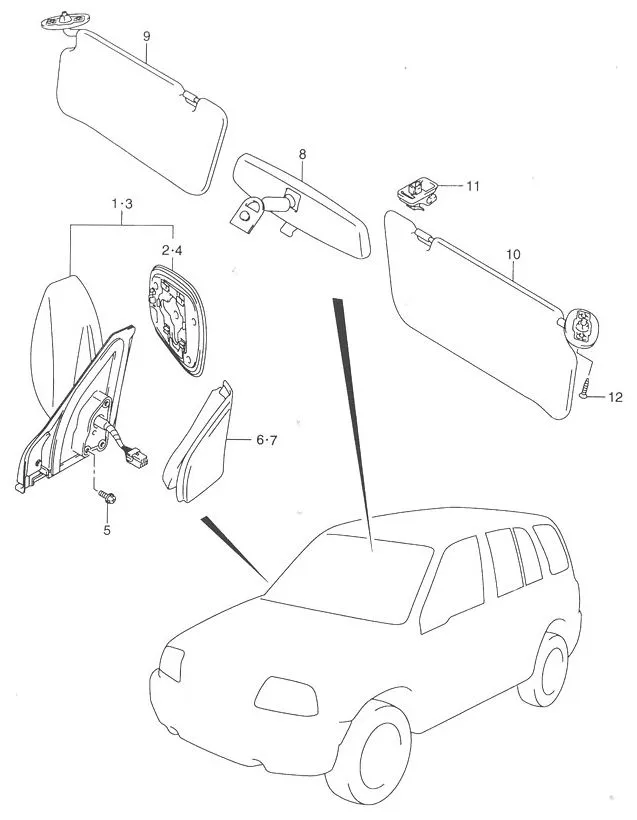

FIG.96 MIRROR/SUNVISOR

FIG.96 MIRROR/SUNVISOR
No No. Part Description Qty Price Per Pcs Remarks
1 84701-65D02-5PK MIRROR, OUTSIDE RH (BEIGE) 1 Rp3.867.000
2 84720-65D00-000 •MIRROR, OUTSIDE RH 1 Rp785.000
3 84702-65D02-5PK MIRROR, OUTSIDE LH (BEIGE) 1 Rp3.867.000
4 84760-65D00-000 •MIRROR, OUTSIDE LH 1 Rp785.000
5 02162-0616A-000
SUB: 02162-06163L000		 SCREW 6 Rp3.000
6 84750-65D00-5PK GARNISH, SASH BRKT INR RH (BLACK) 1 Rp220.000
7 84790-65D00-5PK GARNISH, SASH BRKT INR LH (BLACK) 1 Rp233.000
8 84703-65DV0-5PK
SUB: 84703-65D01-5PK		 MIRROR ASSY, INSIDE (BLACK) 1 Rp960.000
9 DISCONTINUE
SUB: 84801-65DB0-6GS		 SUNVISOR ASSY, RH (GRAY) 1 -
10 DISCONTINUE
SUB: 84802-65DB0-6GS		 SUNVISOR ASSY, LH (GRAY) 1 -
11 84851-77K00-6GS
SUB: 84851-65D00-6GS		 HOLDER, SUNVISOR (GRAY) 2 Rp47.500
12 03121-0516A-000
SUB: 03121-05163-000		 SCREW 4 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
