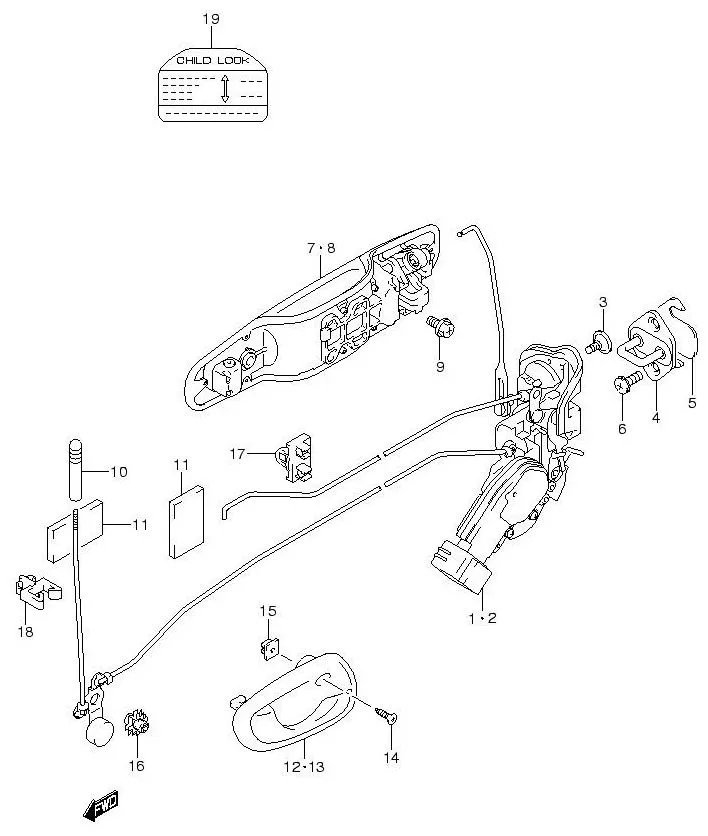

FIG.93 REAR DOOR LOCK

FIG.93 REAR DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 82301-65D11-000
SUB: 82301-65D10-000		 LATCH ASSY, DOOR RH 1 Rp3.245.000
2 82302-65D11-000
SUB: 82302-65D10-000		 LATCH ASSY, DOOR LH 1 Rp3.590.000
3 DISCONTINUE
SUB: 82291-65D10-000		 SCREW 6 -
4 82610-60A01-000 STRIKER, DOOR LATCH 2 Rp171.000
5 78199M78000-000 SPACER 1 Rp8.000
6 09137-08014-000
SUB: 09137-08011-000		 SCREW (8X18) 4 Rp23.000
7 DISCONTINUE
SUB: 82810-65D00-5PK		 HANDLE, DOOR OUTER RH (BLACK) 1 -
8 DISCONTINUE
SUB: 82820-65D00-5PK		 HANDLE, DOOR OUTER LH (BLACK) 1 -
9 02162-0612B-000
SUB: 02162-06123-000		 SCREW 4 Rp16.000
10 82982M65D00-P4Z KNOB, DOOR INSIDE LOCK (GRAY) 2 Rp7.500
11 77591M75000-000 PAD 4 Rp7.000
12 83110-76G01-P4Z
SUB: 83110-76G00-P4Z		 HANDLE, DOOR INSIDE RH (GRAY) 1 Rp363.000
13 83130-76G01-P4Z
SUB: 83130-76G00-P4Z		 HANDLE, DOOR INSIDE LH (GRAY) 1 Rp363.000
14 03121-0516A-000
SUB: 03121-05163-000		 SCREW 2 Rp11.500
15 83119-60B00-000 NUT, DOOR INSIDE HANDLE 2 Rp27.000
16 DISCONTINUE
SUB: 83261-56B00-000		 PIN, DOOR INSIDE LOCK ROD 2 -
17 83271M50E00-000 CLIP, DOOR INSIDE LOCK ROD 2 Rp6.500
18 DISCONTINUE
SUB: 09403-07324-000		 CLIP 2 -
19 DISCONTINUE
SUB: 82491-56B00-000		 PLATE, CHILD PROOF CAUTION 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
