ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.64 CHASSIS FRAMEFIG.65 BODY MOUNTINGFIG.66 FRONT HOOD PANELFIG.67 FRONT FENDERFIG.68 FRONT BODY PANELFIG.69 FLOOR PANELFIG.70 SIDE BODY PANELFIG.71 ROOF PANELFIG.72 FRONT BUMPERFIG.73 REAR BUMPERFIG.74 INSTRUMENT PANELFIG.75 VENTILATORFIG.76 HEATERFIG.77 HEATER BLOWERFIG.78 CONSOLE BOXFIG.79 FLOOR CARPETFIG.80 INTERIOR TRIMFIG.81 CAP/COVERFIG.82 FUEL LID OPENERFIG.83 ROOF LININGFIG.84 EMBLEMFIG.85 GARNISHFIG.86 TIRE CARRIERFIG.87 WINDOW GLASSFIG.88 FRONT DOOR PANELFIG.89 FRONT DOOR REGULATORFIG.90 FRONT DOOR LOCKFIG.91 REAR DOOR PANELFIG.92 REAR DOOR REGULATORFIG.93 REAR DOOR LOCKFIG.94 BACK DOOR PANELFIG.95 BACK DOOR LOCKFIG.96 MIRROR/SUNVISORFIG.97 SEAT BELTFIG.98 FRONT SEATFIG.99 REAR SEATFIG.100 FUEL TANKFIG.101 JACK/TOOLFIG.102 AIR CONDITIONER

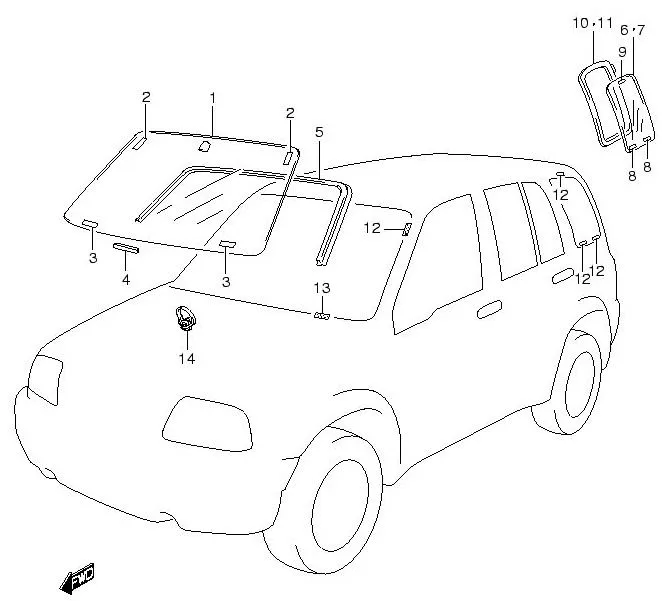

FIG.87 WINDOW GLASS

FIG.87 WINDOW GLASS
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 84510-65D00L000		 GLASS, WINDSHIELD 1 -
2 84572-74G00-000 •MALE, GLASS FASTENER NO.1 2 Rp42.500
3 84513-65D00-000 •MALE, GLASS FASTENER NO.2 2 Rp44.500
4 84617-81A00-000 •SPACER 3 Rp77.000 L:300!150
5 84611-65D00-5PK MOLDING, WINDSHIELD (BLACK) 1 Rp1.054.500
6 DISCONTINUE
SUB: 84560-65D00L000		 GLASS, QTR WINDOW RH 1 -
7 DISCONTINUE
SUB: 84570-65D00L000		 GLASS, QTR WINDOW LH 1 -
8 DISCONTINUE
SUB: 84512-65D00-000		 •MALE, GLASS FASTENER NO.1 4 -
9 84513-65D00-000 •MALE, GLASS FASTENER NO.2 2 Rp44.500
10 84621-65D00-5PK MOLDING, QTR WINDOW RH (BLACK) 1 Rp810.500
11 84622-65D00-5PK MOLDING, QTR WINDOW LH (BLACK) 1 Rp810.500
12 84514-65D00-000 FEMALE, GLASS FASTENER NO.1 8 Rp41.000
13 84515-65D00-000 FEMALE, GLASS FASTENER NO.2 2 Rp45.500
14 84618-62A00-000 STOPPER, WINDSHIELD 2 Rp57.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
