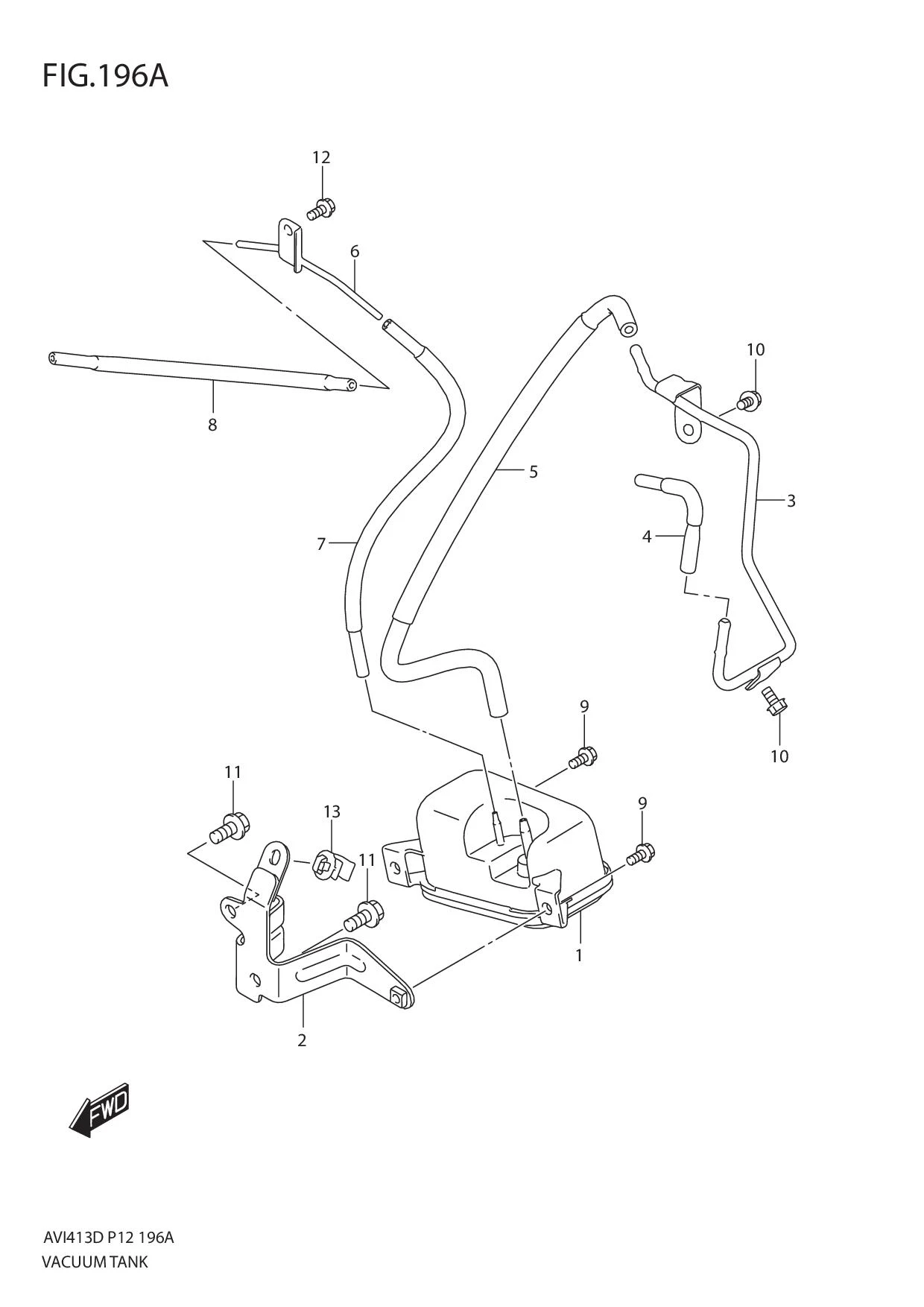

FIG.196A VACUUM TANK

FIG.196A VACUUM TANK
No No. Part Description Qty Price Per Pcs Remarks
1 18160M68L50-000 TANK,VACUUM 1 Rp272.500
2 18171M79M50-000 BRACKET,VAC TANK 1 Rp65.500
3 18341M55KD0-000 PIPE,VACUUM 1 Rp64.500
4 18342M55KD0-000 HOSE,VAC PIPE PUMP SIDE 1 Rp9.000
5 18343M79M50-000 HOSE,VAC PIPE TANK SIDE 1 Rp63.500
6 18350M79M50-000 PIPE,VACUUM 1 Rp33.500
7 18351M79M50-000 HOSE,VACUUM TANK 1 Rp34.000
8 18352M79M50-000 HOSE,VACUUM 1 Rp33.000
9 01550-0612B-000 BOLT 2 Rp16.500
10 01550-0612B-000 BOLT 2 Rp16.500
11 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 2 Rp6.000
12 01550-0612B-000 BOLT 1 Rp16.500
13 09403M11L02-000 CLAMP 1 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
