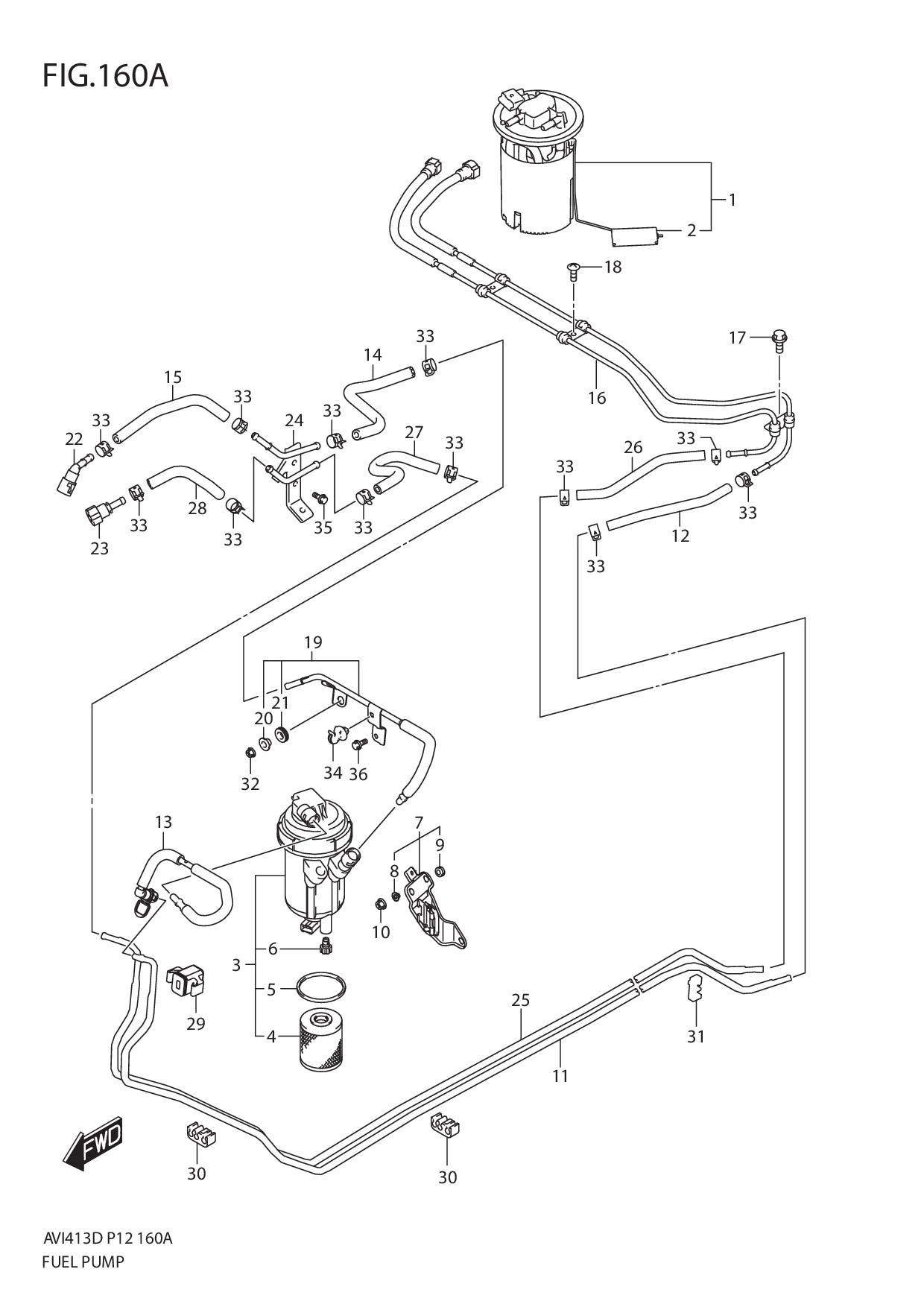

FIG.160A FUEL PUMP

FIG.160A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100M60M50-000 PUMP ASSY,FUEL 1 Rp2.933.000
2 34810M60M50-000 •GAUGE ASSY,FUEL LEVEL 1 Rp293.500
3 15410M60M52-000
SUB: 15410M60M51-000		 FILTER ASSY,FUEL 1 Rp1.928.000
4 15411M55KD0-000 •ELEMENT,FUEL FILTER 1 Rp399.500
5 15413M55KD0-000 •GASKET,FUEL FILTER 1 Rp41.000
6 15414M74L50-000 •COCK/O RING,DRAIN 1 Rp67.500
7 15420M74L50-000 BRACKET,FUEL FILTER 1 Rp60.000
8 DISCONTINUE
SUB: 09169-06067-000		 •COLLAR 3 -
9 13878M75J00-000 •CUSHION 3 Rp8.000
10 09159-06076-000 NUT 3 Rp19.500
11 15811M58R50-000 PIPE,FUEL 1 Rp226.500
12 15812M58R50-000 PIPE,FUEL (TANK TO PIPE) 1 Rp127.500
13 15815M79M50-000 HOSE,FUEL (BODY TO PIPE1) 1 Rp210.000
14 15818M79M50-000 HOSE,FUEL (PIPE1 TO PIPE2) 1 Rp153.000
15 15819M79M50-000 HOSE,FUEL (PIPE2 TO ENG) 1 Rp113.500
16 15820M60M50-000 PIPE,TANK SIDE 1 Rp446.500
17 01550-0612B-000 BOLT 1 Rp16.500
18 02142-0508A-000
SUB: 02142B0508AN000		 SCREW 2 Rp3.500
19 15830M79M50-000 PIPE,FUEL NO.1 1 Rp151.000
20 DISCONTINUE
SUB: 09169-06067-000		 •COLLAR 1 -
21 13878M75J00-000 •CUSHION 1 Rp8.000
22 15835M55KD0-000 CONNECTOR,FUEL 1 Rp71.500
23 15836M55KD0-000 CONNECTOR,FUEL RTN 1 Rp71.000
24 15850M60M50-000 PIPE,FUEL NO.2 1 Rp69.000
25 15861M58R50-000 PIPE,FUEL RTN 1 Rp223.000
26 15862M58R50-000 PIPE,FUEL RTN (PIPE TO TANK) 1 -
27 15865M79M50-000 HOSE,FUEL RTN (PIPE2 TO PIPE1) 1 Rp148.000
28 15866M79M50-000 HOSE,FUEL RTN (ENG SIDE) 1 Rp84.500
29 15882M79M50-000 CLAMP,FUEL PIPE 1 Rp35.000
30 15893M79M50-000 CLAMP,FUEL PIPE 4 Rp13.000
31 15894M58R50-000 CLAMP,FUEL PIPE 1 Rp16.500
32 09159-06076-000 NUT 1 Rp19.500
33 09401-11420-000 CLIP 12 Rp24.500
34 09403M08339-000 CLAMP,FUEL & WATER HOSE 1 Rp8.500
35 01550-0612B-000 BOLT 2 Rp16.500
36 01550-0612B-000 BOLT 1 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
