ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

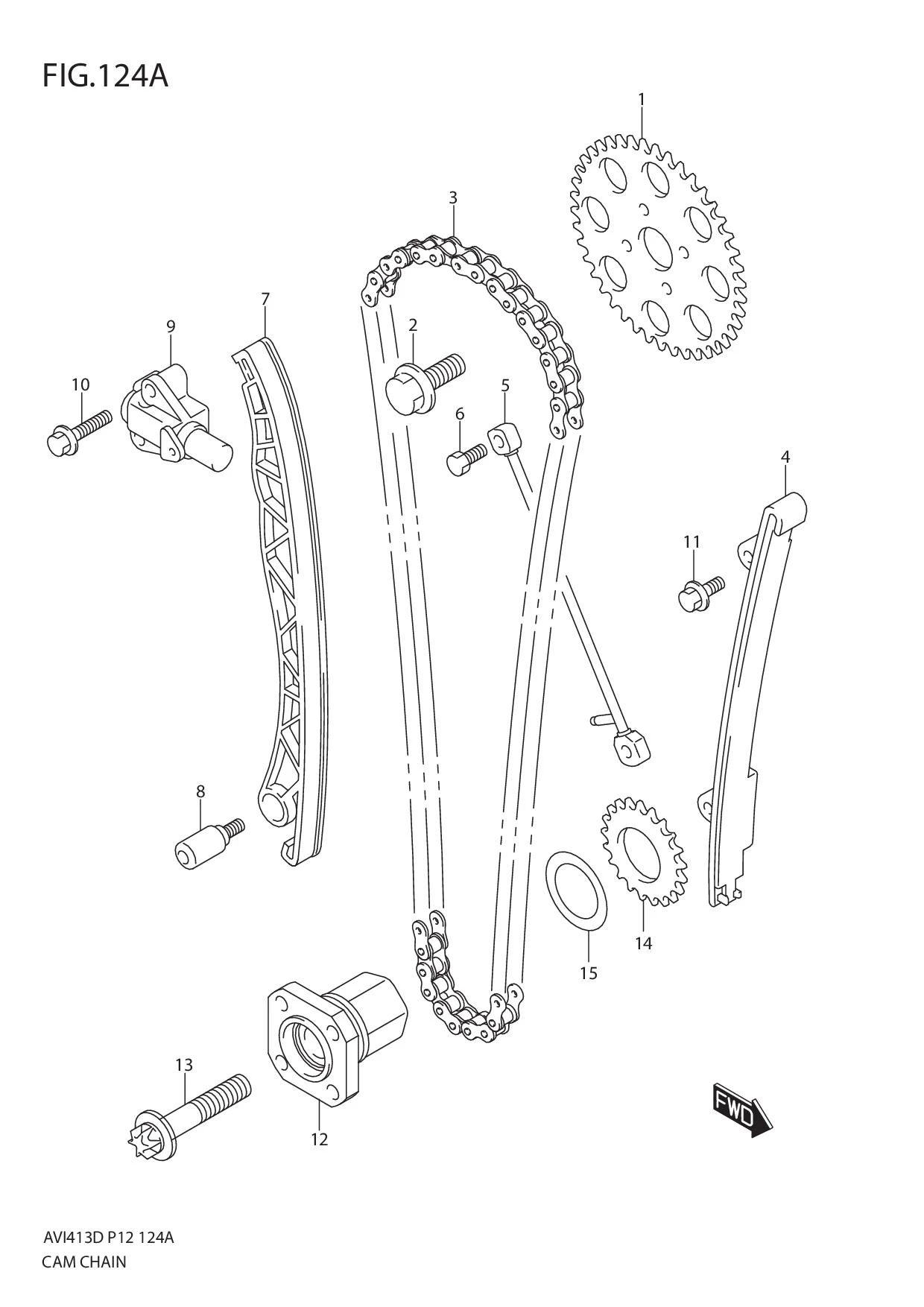

FIG.124A CAM CHAIN

FIG.124A CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12743M86J20-000 SPROCKET,CAMSHAFT TIMING 1 Rp151.000
2 12753M86J00-000 BOLT (12X33) 1 Rp21.500
3 12761M86J01-000 CHAIN,TIMING 1 Rp513.000
4 12771M86J20-000 GUIDE,TIMING CHAIN 1 Rp105.000
5 12781M86J30-000
SUB: 12781M86J00-000		 PIPE,CHAIN OIL JET 1 Rp62.500
6 12782M86J00-000 BOLT,CHAIN OIL JET PIPE 2 Rp34.000
7 12811M86J20-000 LEVER,TIMING CHAIN TENSIONER 1 Rp102.000
8 12812M86J00-000 BOLT,TENSIONER LEVER 1 Rp29.500
9 12831M86J20-000 ADJUSTER ASSY,TENSIONER 1 Rp407.500
10 12832M86J00-000 BOLT,ADJUSTER (6X32) 2 Rp6.500
11 13943M86J40-000
SUB: 13943M86J00-000		 BOLT,GUIDE (6X14) 2 Rp5.500
12 16211M79MA0-000 FLANGE,OIL PUMP DRIVE 1 Rp376.000
13 16215M86J00-000 BOLT,OIL PUMP FLANGE (14X60) 1 Rp44.500
14 12631M86J20-000 SPROCKET,CRANK TIMING 1 Rp87.500
15 12632M79MA0-000 SHIM,CRANKSHAFT SPROCKET 2 Rp157.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
