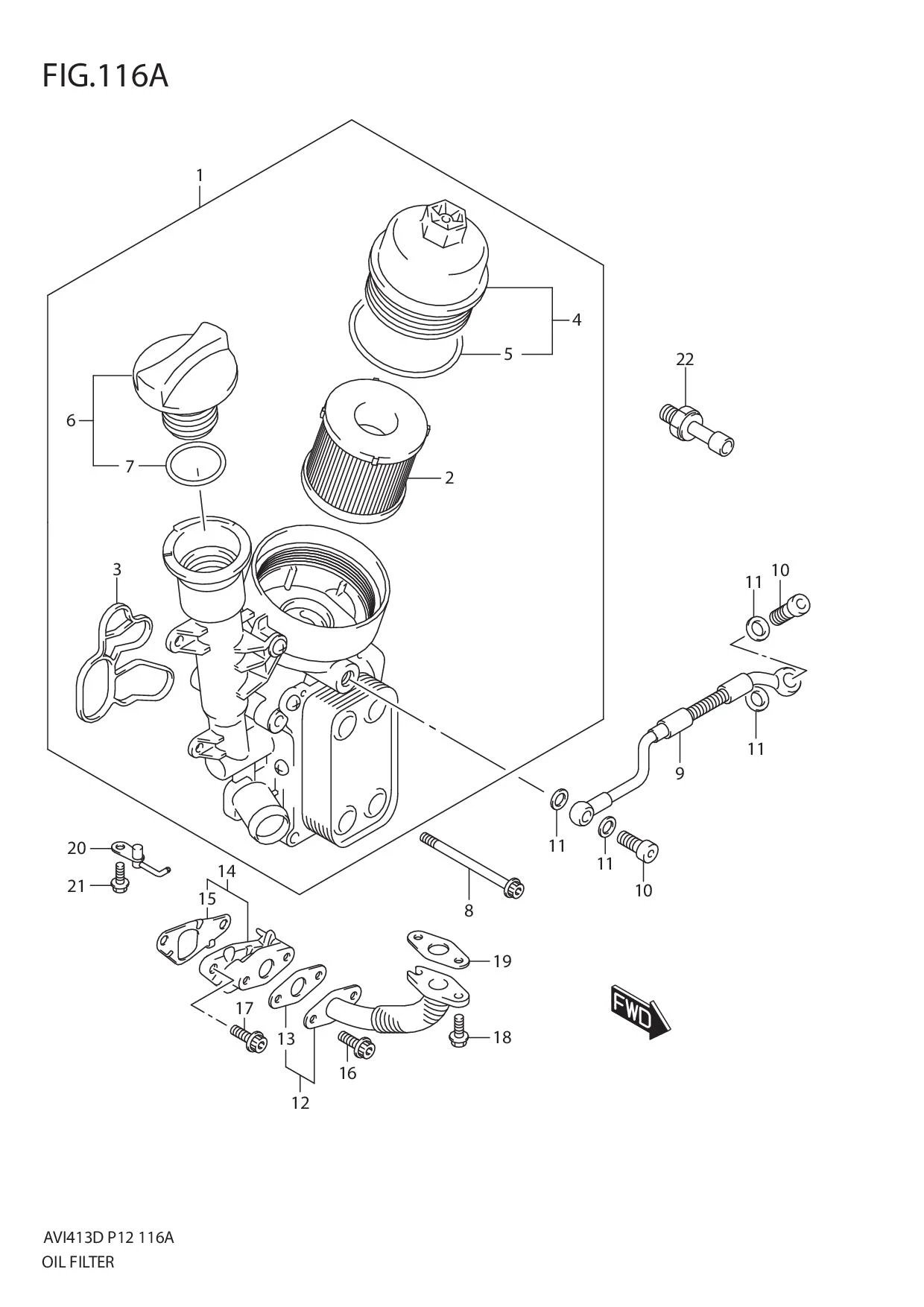

FIG.116A OIL FILTER

No	No. Part	Description	Qty	Price Per Pcs
1	16500M55KE0-000	CASE ASSY,OIL FILTER	1	Rp1.935.500
2	16510M86J20-000	•ELEMENT	1	Rp214.500
3	16539M86J20-000	•GASKET	1	Rp73.000
4	16540M86J20-000	•CAP,OIL FILTER	1	Rp201.000
5	16545M86J00-000	••O RING	1	Rp164.000
6	16921M86J20-000	•CAP ASSY,OIL FILLER	1	Rp59.000
7	16922M86J00-000	••O RING	1	Rp12.500
8	16538M86J00-000	BOLT (6X77)	4	Rp10.000
9	13930M55KF0-000	PIPE,T/C OIL INTK	1	Rp199.000
10	13933M86J01-000	BOLT,UNION	2	Rp54.000
11	13934M86J00-000	GASKET	4	Rp7.000
12	13940M55KF0-000	PIPE,T/C OIL DRAIN	1	Rp751.500
13	13944M55KE0-000	•GASKET	1	Rp33.500
14	13946M55KF0-000	SPACER,T/C OIL DRAIN	1	Rp100.000
15	13947M55KF0-000	•GASKET,T/C OIL DRAIN SPACER	1	Rp27.500
16	13942M55KE0-000	BOLT (6X20)	2	Rp12.000
17	13942M55KE0-000	BOLT (6X20)	2	Rp12.000
18	13943M86J40-000 SUB: 13943M86J00-000	BOLT (6X14)	2	Rp5.500
19	13945M86J20-000	GASKET	1	Rp13.500
20	16710M86J10-000 SUB: 16710M86J00-000	JET,PISTON COOLING	4	Rp43.000
21	16719M86J10-000 SUB: 16719M86J00-000	BOLT (6X16)	4	Rp10.000
22	37820M86J00-000	SWITCH,OIL PRESSURE	1	Rp66.500
