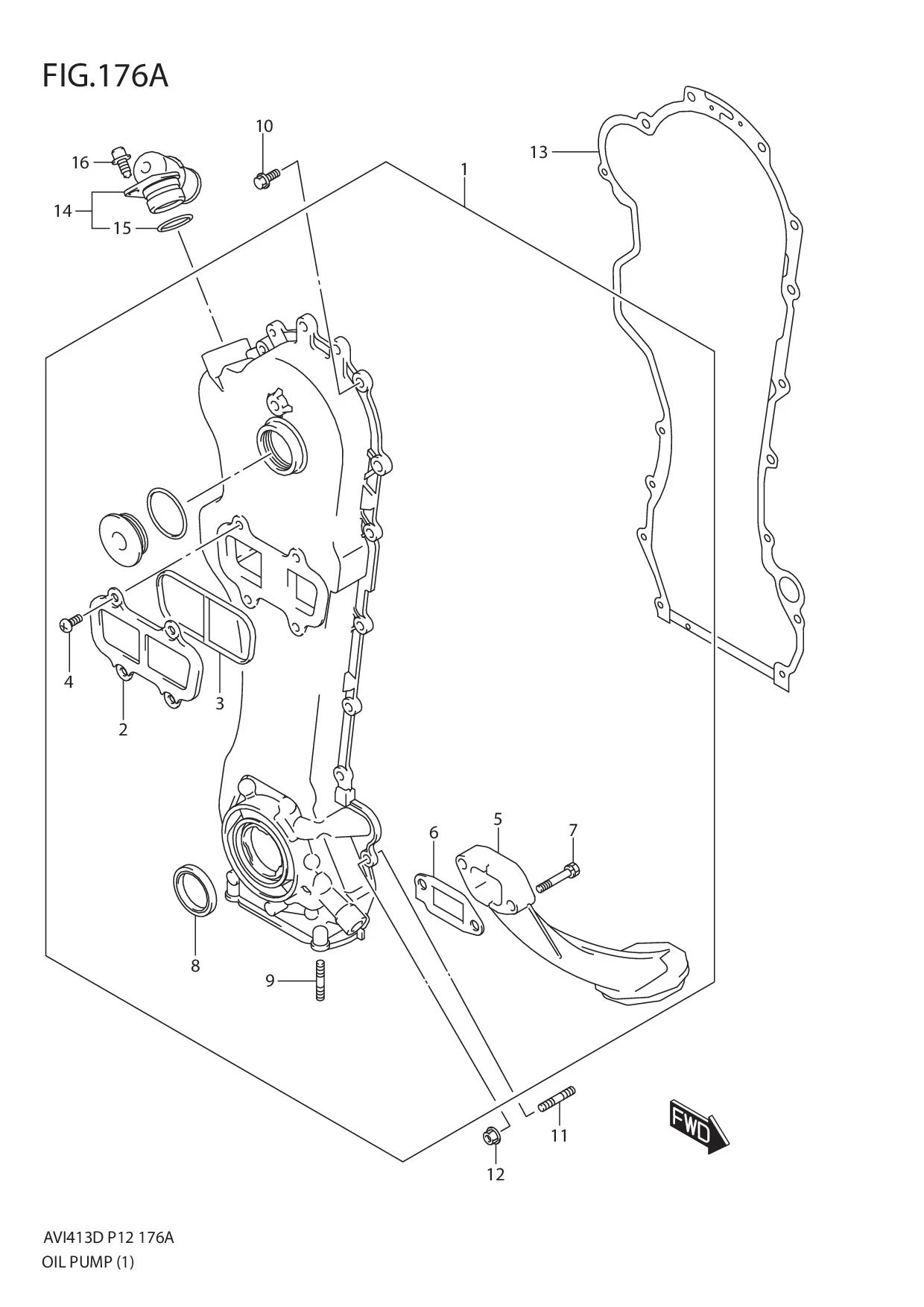

FIG.176A OIL PUMP (PIERBURG)

FIG.176A OIL PUMP (PIERBURG)
No No. Part Description Qty Price Per Pcs Remarks
1 16100M86J22-000 PUMP ASSY,OIL 1 Rp1.600.000
2 11391M86J00-000 •CAP,COVER 1 Rp802.000
3 11392M86J20-000 •GASKET,COVER CAP 1 Rp16.500
4 11393M86J00-000 •SCREW,CAP 4 Rp43.500
5 16520M86J20-000 •STRAINER ASSY,OIL 1 Rp218.500
6 16520M86J30-000
SUB: 16526M86J00-000		 •GASKET,OIL STRAINER 1 Rp338.500
7 16527M86J00-000 •BOLT 2 Rp40.500
8 16115M86J20-000 •SEAL,OIL 1 Rp106.500
9 16114M86J00-000 •STUD BOLT 2 Rp33.000
10 16116M86J00-000 BOLT (6X22) 14 Rp5.500
11 16117M86J00-000 STUD BOLT (M6) 3 Rp8.000
12 16118M86J30-000 NUT (M6) 3 Rp4.500
13 16119M86J30-000 GASKET,OIL PUMP TO CYL HEAD 1 Rp314.500
14 11185M86J30-000 PIPE ASSY,CRKC AIR OUTLET 1 Rp127.000
15 11187M86J00-000 •O RING 1 Rp6.000
16 11188M86J00-000 BOLT (6X16) 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
