ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

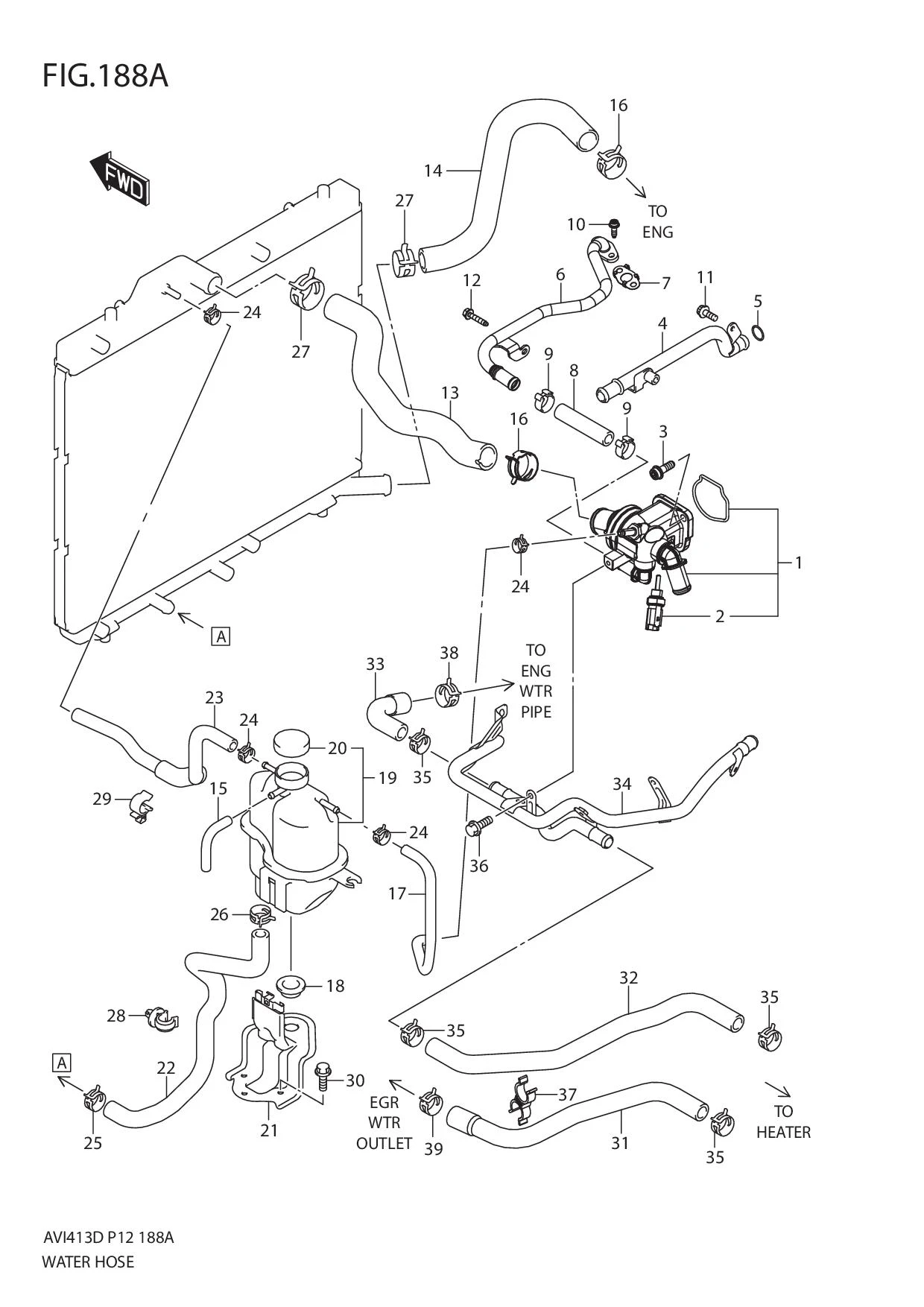

FIG.188A WATER HOSE

FIG.188A WATER HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 17690M79M70-000 HOUSING ASSY,THERMOSTAT 1 Rp860.500
2 13650M86J00-000 •SENSOR,WATER TEMP 1 Rp188.000
3 18716M86J40-000
SUB: 18716M86J00-000		 BOLT (8X25) 2 Rp7.500
4 17890M86J01-000 PIPE,BYPASS WATER PIPE 1 Rp142.500
5 17892M86J00-000 O RING 1 Rp5.500
6 17971M55KD0-000 PIPE,OIL COOLER INLET WTR 1 Rp92.000
7 17972M86J00-000 GASKET,OCLR INLET WTR PIPE 1 Rp9.500
8 17976M86J00-000 HOSE,OCLR INLET WATER 1 Rp11.000
9 17977M86J01-000
SUB: 17977M86J00-000		 CLAMP,OCLR INLET WATER HOSE 2 Rp10.000
10 11182M86J00-000 BOLT (6X20) 2 Rp6.500
11 11188M86J00-000 BOLT (6X16) 1 Rp8.000
12 12832M86J00-000 BOLT (6X32) 1 Rp6.500
13 17852M60M50-000 HOSE,RADIATOR INLET 1 Rp42.000
14 17854M74L50-000 HOSE,RADIATOR OUTLET 1 Rp45.500
15 17936M74L50-000 HOSE,RSVR TANK VENT 1 Rp6.500
16 DISCONTINUE
SUB: 17859M65MA0-000		 CLIP 2 -
17 17859M74L50-000 HOSE,ENG TO DEG TANK 1 Rp21.500
18 17879M86J00-000 MOUNT,DEG TANK 1 Rp7.000
19 17930-71P51-000 TANK ASSY,DEGASSING 1 -
20 17920-62J50-000 •CAP,DEG TANK 1 Rp307.000
21 17931M74L50-000 BRACKET,DEG TANK 1 Rp74.000
22 17937M74L50-000 HOSE,DEG TANK OUTLET 1 Rp54.000
23 17939M74L50-000 HOSE,RDTR TO DEG TANK 1 Rp23.500
24 09401M12L05-000 CLIP 4 Rp6.500
25 09401M21410-000 CLIP 1 Rp11.000
26 DISCONTINUE
SUB: 09401M24405-000		 CLIP 1 -
27 09401M30407-000 CLIP 2 Rp16.500
28 09403M14L02-000 CLAMP 1 Rp5.500
29 09403M22L01-000 CLAMP 1 Rp7.000
30 02162-0612A-000 SCREW 3 Rp11.000
31 17871M60M50-000 HOSE,HEATER INLET 1 Rp43.500
32 17872M60M50-000 HOSE,HEATER OUTLET NO.1 1 Rp43.500
33 17874M86J00-000 HOSE,HEATER OUTLET NO.2 1 Rp15.000
34 17880M60M50-000 PIPE,HEATER OUTLET 1 Rp179.500
35 09401M21410-000 CLIP 4 Rp11.000
36 02162-0612A-000 SCREW 1 Rp11.000
37 17877M55K00-000 CLAMP 1 Rp5.000
38 09401M22409-000 CLIP 1 Rp11.000
39 09401M23410-000 CLIP 1 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
