ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

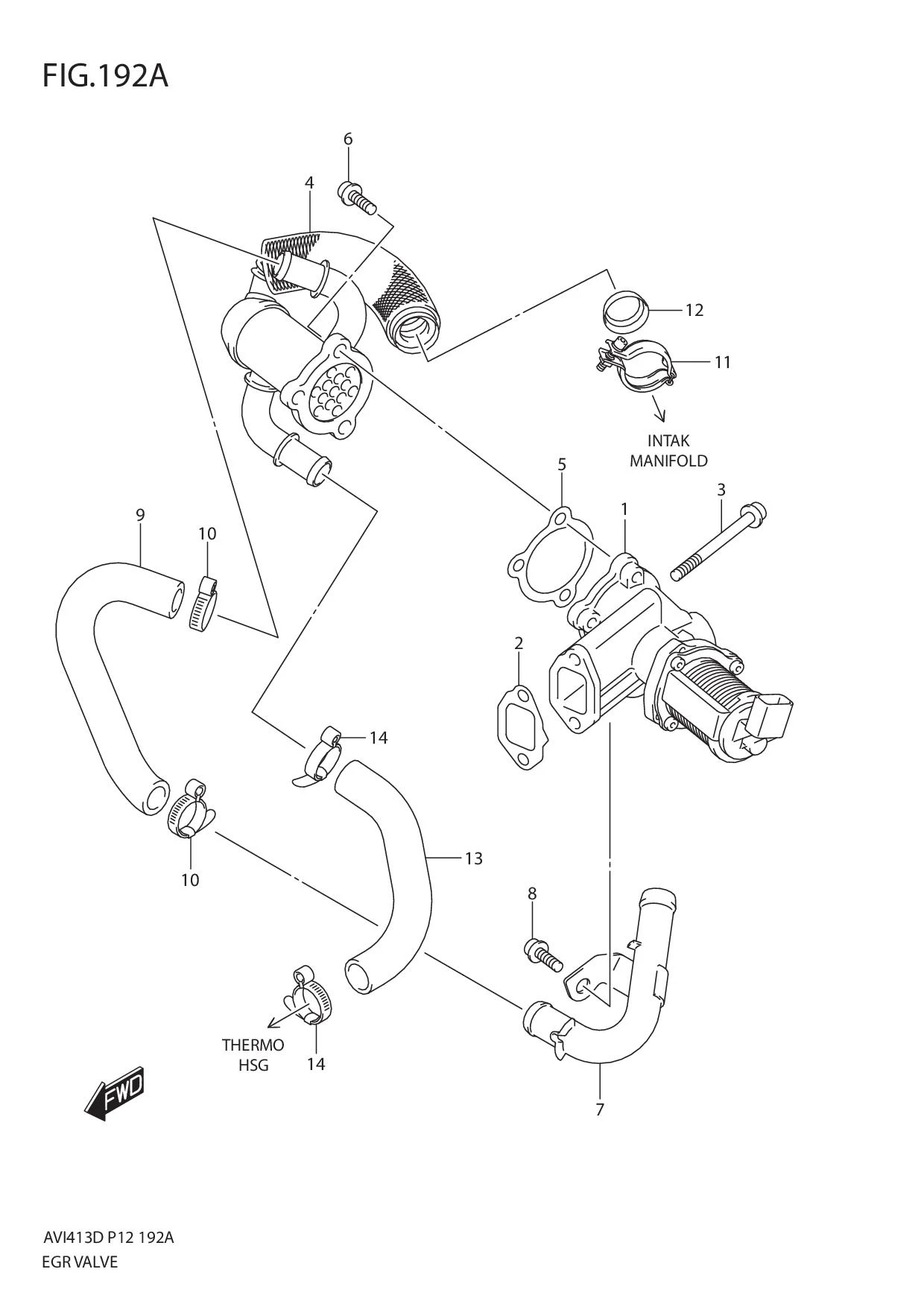

FIG.192A EGR VALVE

FIG.192A EGR VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 18520M55KK0-000 VALVE,EGR 1 Rp3.573.000
2 18529M86J20-000 GASKET,EGR VALVE ASSY 1 Rp8.000
3 18528M86J00-000 BOLT (8X90) 2 Rp15.000
4 18710M86J21-000 COOLER,EGR 1 Rp1.414.000
5 18715M86J20-000 GASKET,EGR COOLER 1 Rp13.000
6 18716M86J40-000
SUB: 18716M86J00-000		 BOLT (8X25) 3 Rp7.500
7 18720M55KF0-000 PIPE,EGR COOLER WATER 1 Rp66.500
8 18716M86J40-000
SUB: 18716M86J00-000		 BOLT (8X25) 1 Rp7.500
9 18724M86J20-000 HOSE,EGR COOLER WATER OUTLET 1 Rp31.500
10 09401M23411-000
SUB: 18725M86J00-000		 CLAMP,EGR COOLER WATER HOSE 2 Rp16.000
11 18526M86J20-000 CLAMP,EGR VALVE PIPE 1 Rp116.500
12 18527M86J00-000 GASKET,EGR PIPE CLAMP 1 Rp7.000
13 17981M86J00-000 HOSE,EGR COOLER WATER INLET 1 Rp25.000
14 09401M23411-000 CLAMP,EGR COOLER WATER HOSE 2 Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
