ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

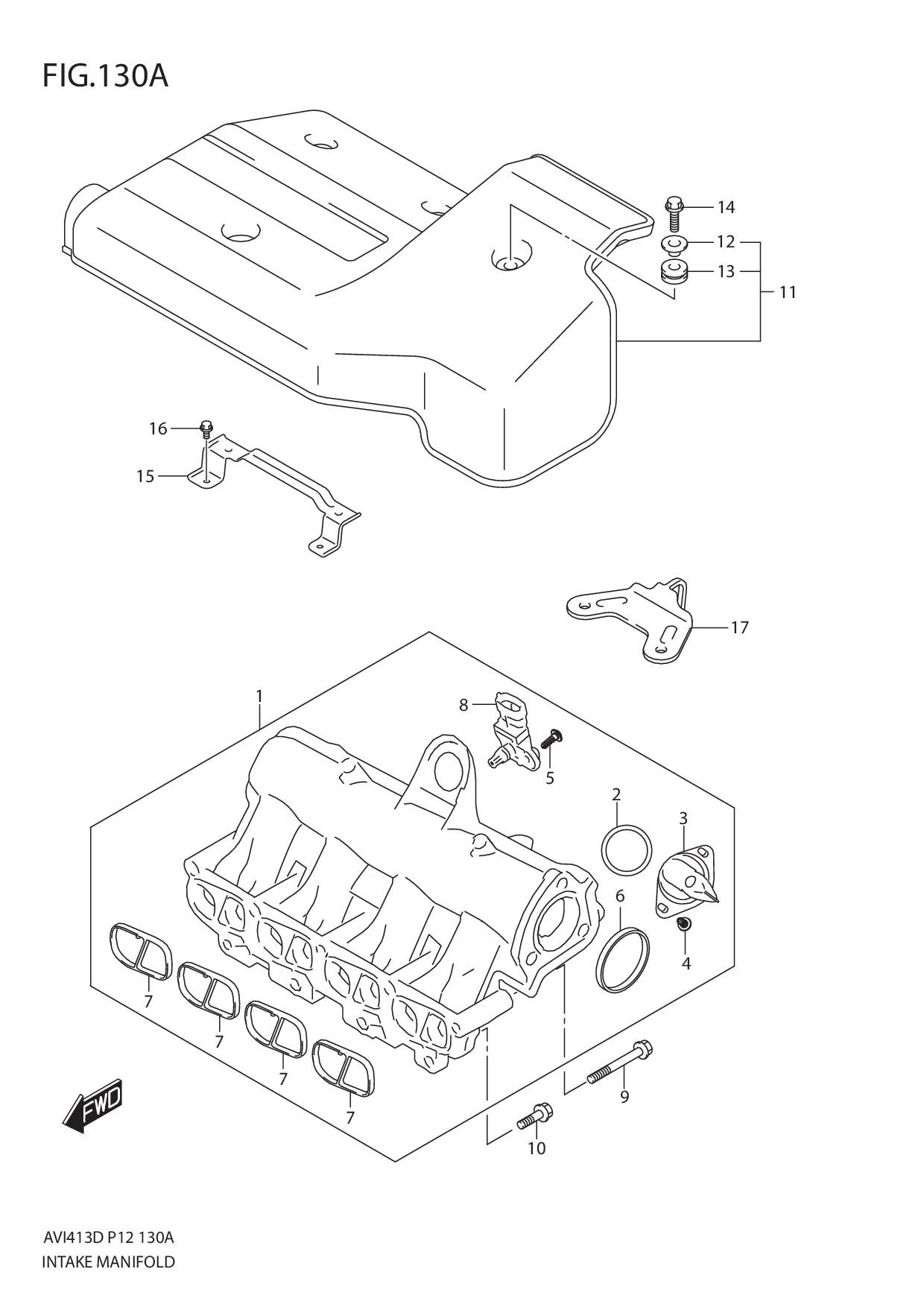

FIG.130A INTAKE MANIFOLD

FIG.130A INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13110M55KE0-000 MANIFOLD ASSY,INTAKE 1 Rp2.175.000
2 13112M55KD0-000 •GASKET,PIPE 1 Rp27.500
3 13113M55KD0-000 •PIPE,EGR 1 Rp233.500
4 13114M55KD0-000 •BOLT,PIPE (M6) 2 -
5 13115M68L00-000 •BOLT,SENSOR 1 -
6 13118M68L10-000 •GASKET,INLET 1 Rp35.000
7 13119M68L10-000 •GASKET,INTK MANF 4 Rp45.000
8 18590M68L01-000 •SENSOR,AIR PRESSURE 1 Rp564.000
9 13117M86J00-000 BOLT,INTK MANF (8X70) 5 Rp10.000
10 18716M86J40-000
SUB: 18716M86J00-000		 BOLT,INTK MANF (8X25) 4 Rp7.500
11 13170M55KD0-000 COVER,ENGINE 1 Rp285.500
12 13172M86J00-000 •SPACER 4 Rp5.500
13 13173M86J00-000 •CUSHION 4 Rp5.000
14 13174-54G00-000
SUB: 13174M74L50-000		 BOLT,ENG COVER 4 Rp28.500
15 13175M55KD0-000 BRACKET,ENGINE COVER 1 Rp45.000
16 01550-0612B-000 BOLT 2 Rp16.500
17 11853M86J00-000 HOOK,ENGINE 1 Rp43.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
