ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

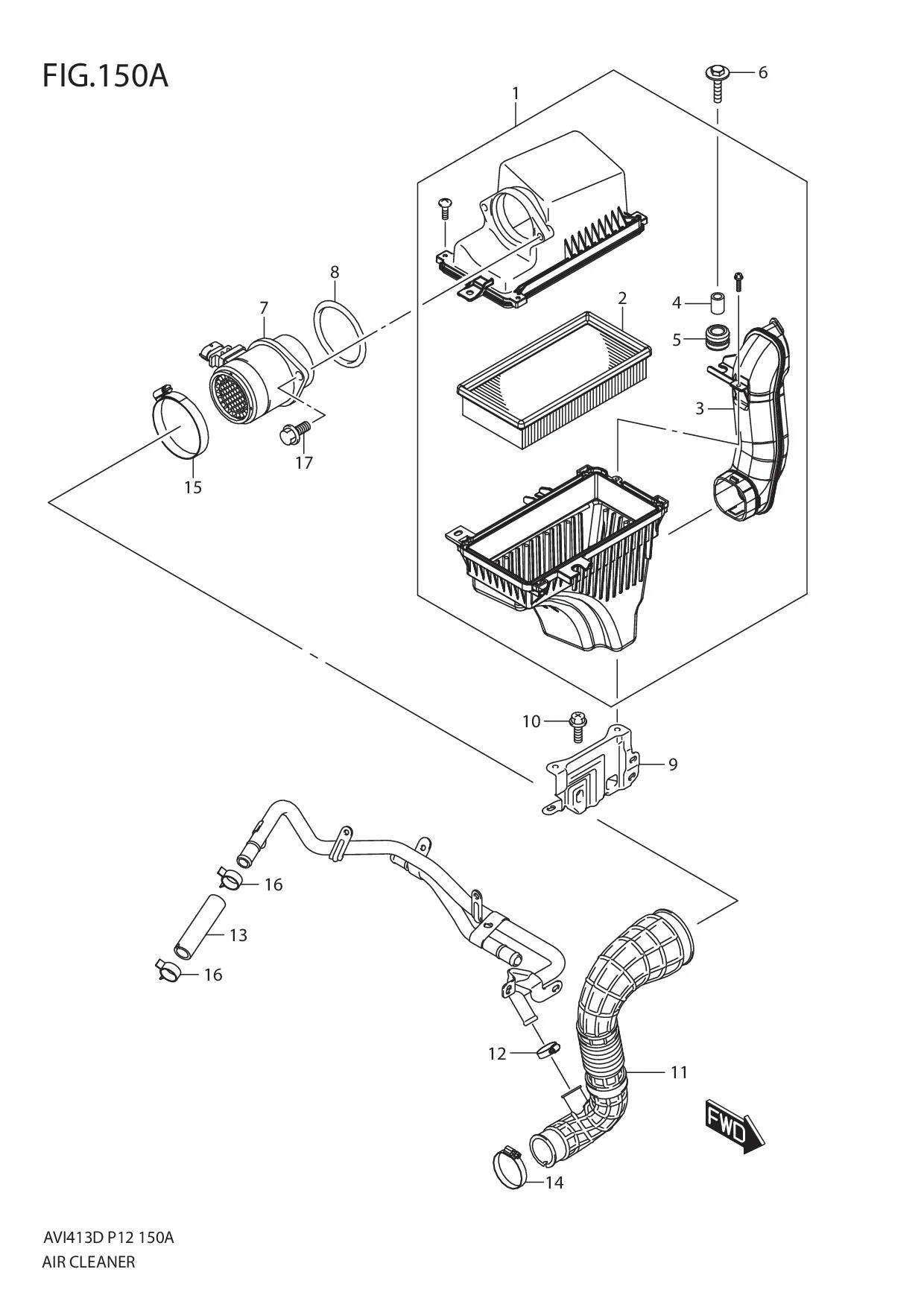

FIG.150A AIR CLEANER

FIG.150A AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700M74L50-000 CLEANER ASSY,AIR 1 Rp712.500
2 13780M86J00-000 •ELEMENT,AIR CLEANER 1 Rp129.500
3 13765M74L50-000 •PIPE,SUCTION 1 Rp57.000
4 13877M74L50-000 •COLLAR 3 Rp9.000
5 13878M74L50-000 •GROMMET 3 Rp8.000
6 09116M06185-000 BOLT (6X30) 3 Rp8.000
7 13800M62M00-000 SENSOR ASSY,MAF 1 Rp2.509.000
8 13811M55KD0-000 0 RING 1 Rp16.000
9 13811M74L50-000 BRACKET,AIR CLEANER 1 Rp32.000
10 02162-0612A-000 SCREW 2 Rp11.000
11 13881M60M60-000 HOSE,AIR CLEANER OUTLET 1 Rp597.000
12 DISCONTINUE
SUB: 09402-28511-000		 CLAMP 1 -
13 11191M86J00-000 HOSE,BREATHER 1 Rp14.000
14 13895M74L50-000 CLAMP 1 Rp33.000
15 13894M74L50-000 CLAMP 1 Rp48.500
16 09401M22409-000 CLIP 2 Rp11.000
17 01550-0612B-000 BOLT 2 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
