ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

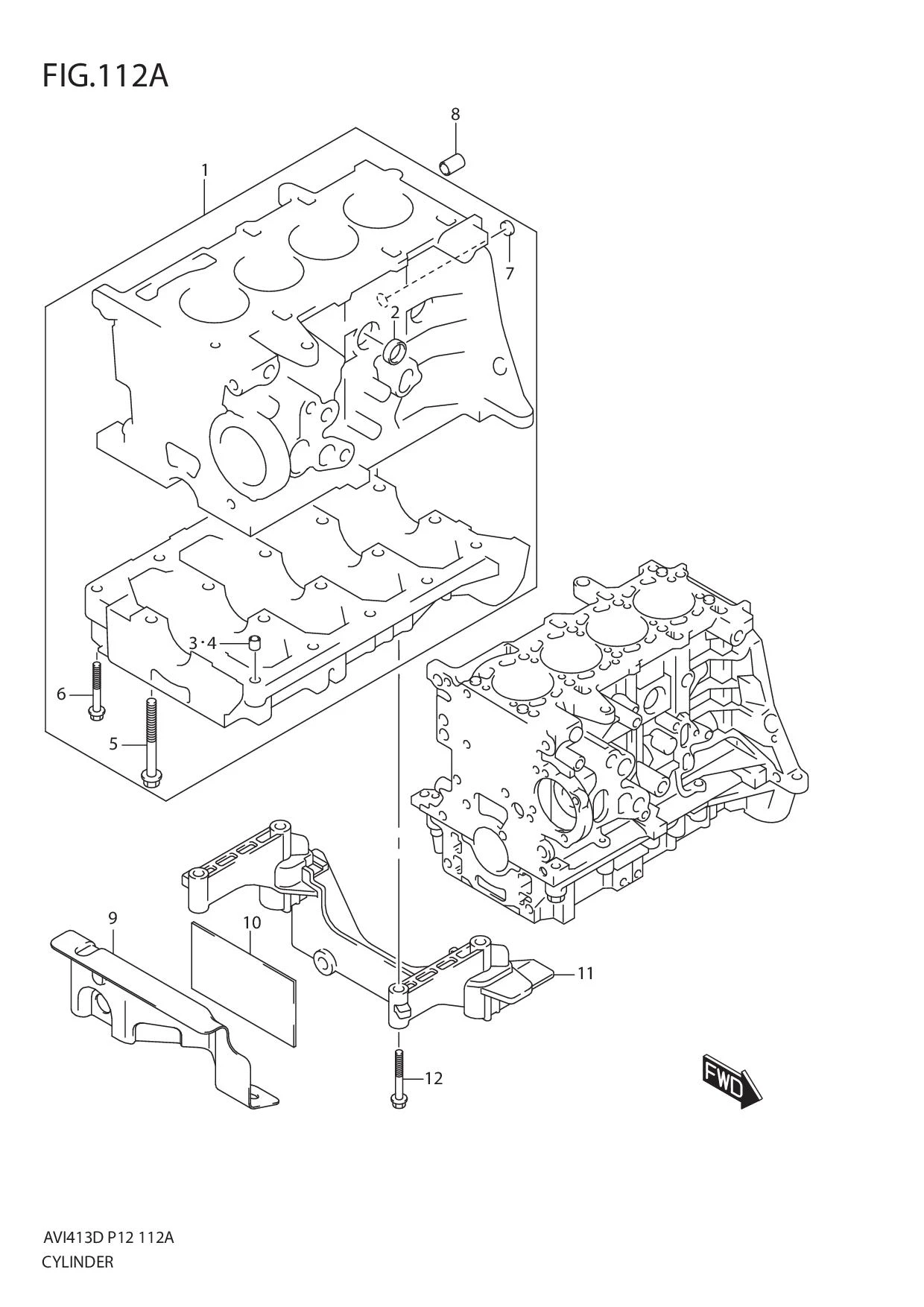

FIG.112A CYLINDER

FIG.112A CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11020M86J40-000
SUB: 11200M86J00-000		 BLOCK ASSY,CYLINDER 1 Rp14.317.500
2 11213M86J20-000 •PLUG,BLK WATER JACKET (M25) 7 Rp4.500
3 11234M86J00-000 •PIN,CRANKCASE LOWER (M12) 1 Rp14.000
4 11236M86J00-000 •PIN,CYL BLK TO LOWER CASE 1 Rp5.500
5 11286M86J00-000 •BOLT,CRANKCASE (M10) 10 Rp14.000
6 11287M86J00-000 •BOLT,CRANKCASE (M8) 10 Rp65.500
7 11295M86J00-000 •PLUG,BLK OIL GALLERY 2 Rp5.000
8 11285M86J20-000
SUB: 11285M86J00-000		 PIN,T/M CASE DOWEL 2 Rp10.500
9 11321M62J50-000 PLATE,CLUTCH HOUSING 1 Rp16.500
10 11322M62J50-000 SEAL,CLUTCH HOUSING PLATE 1 Rp39.000
11 11331M86J00-000 REINFORCEMENT,ENG & T/M 1 Rp474.000
12 11332M86J00-000 BOLT,REINF ENG & T/M 4 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
