ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

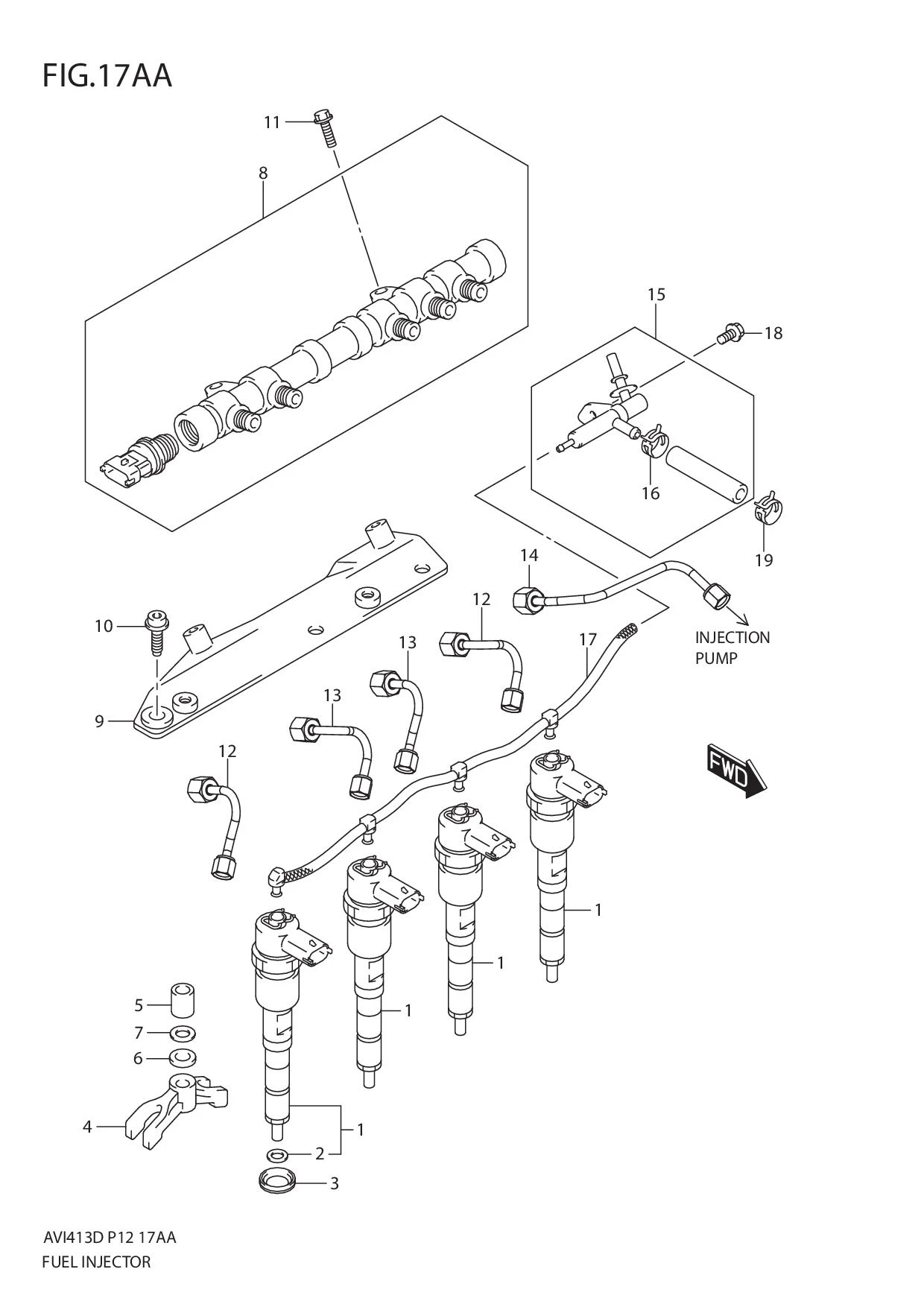

FIG.17AA FUEL INJECTOR

FIG.17AA FUEL INJECTOR
No No. Part Description Qty Price Per Pcs Remarks
1 15710M79MA0-000 INJECTOR ASSY,FUEL 4 Rp3.676.500
2 15712M86J00-000 •GASKET,INJECTOR 4 Rp33.500
3 15713M86J20-000 SEAL,INJECTOR DUST 4 Rp13.500
4 15715M86J20-000 BRACKET,INJECTOR CLAMP 2 Rp187.500
5 15717M86J00-000 NUT,INJ CLAMPING BRKT (M8) 2 Rp24.500
6 15718M86J20-000 WASHER,INJ CLAMPING SPHER 2 Rp8.500
7 15719M86J00-000 WASHER,INJ CLAMPING 2 Rp4.500
8 15730M55KF0-000
SUB: 15730M55KE0-000		 RAIL ASSY,FUEL 1 Rp6.068.500
9 15735M86J00-000 BRACKET,FUEL RAIL 1 Rp123.500
10 15736M86J00-000 BOLT,FUEL RAIL BRKT (8X25) 3 Rp6.000
11 15737M86J10-000
SUB: 15737M86J00-000		 BOLT,FUEL RAIL (8X30) 2 Rp8.500
12 15741M68L10-000 PIPE,FUEL NO.1 & 3 2 Rp214.500
13 15742M68L10-000 PIPE,FUEL NO.2 & 4 2 Rp214.500
14 15745M68L10-000 PIPE,FUEL PUMP TO RAIL 1 Rp281.000
15 15750M55KF0-000 PIPE ASSY,FUEL RTN 1 Rp254.500
16 09401-13419-000 •CLIP 1 Rp26.500
17 15755M86J01-000
SUB: 15755M86J00-000		 HOSE ASSY,FUEL INJ RTN 1 Rp721.500
18 15756M86J00-000 BOLT (6X18) 1 Rp5.500
19 09401-13419-000 CLIP 1 Rp26.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
