ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

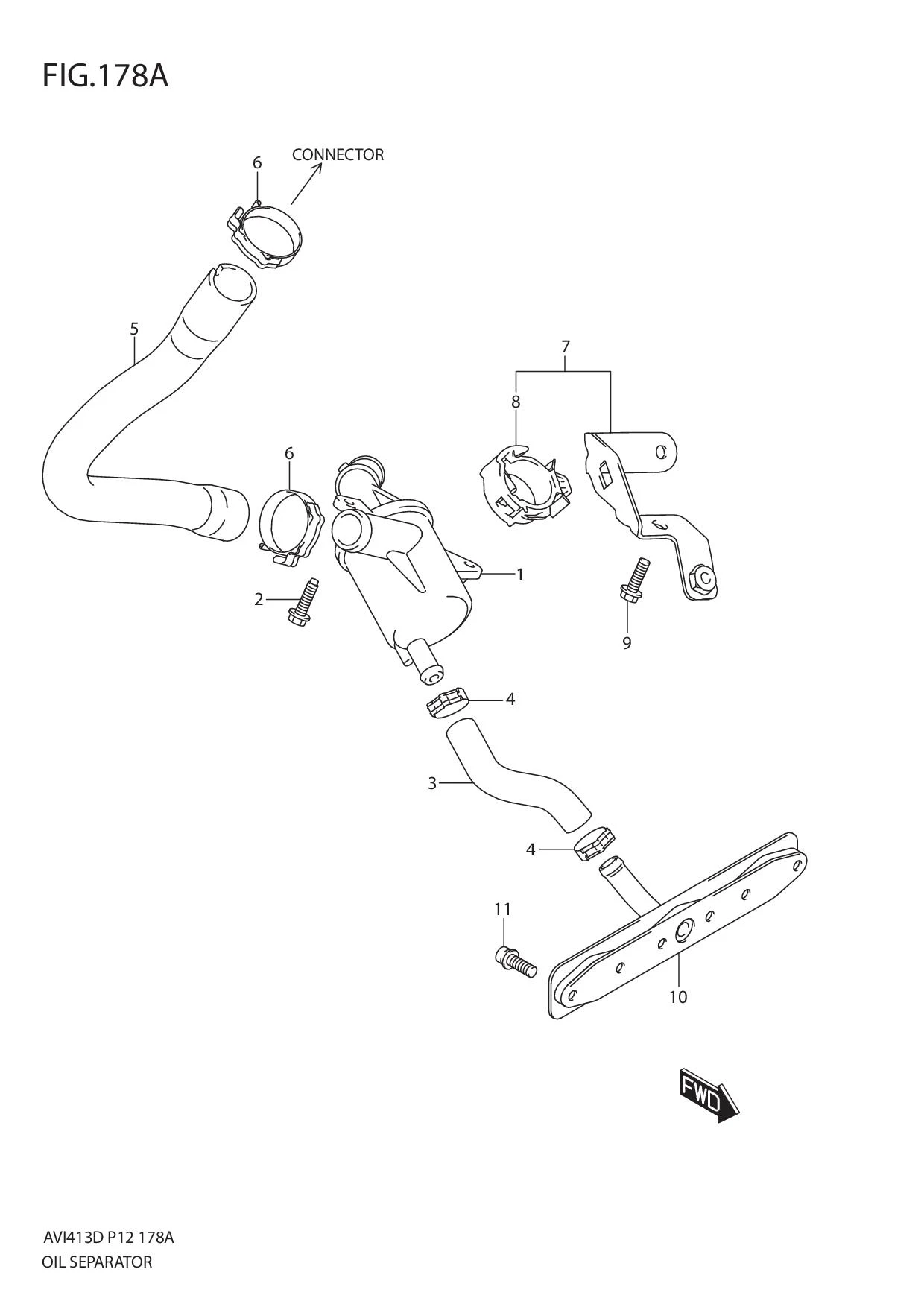

FIG.178A OIL SEPARATOR

FIG.178A OIL SEPARATOR
No No. Part Description Qty Price Per Pcs Remarks
1 11181M86J30-000
SUB: 11181M86J00-000		 SEPARATOR,OIL & AIR 1 Rp147.000
2 11182M86J00-000 BOLT,SEPARATOR (6X20) 2 Rp6.500
3 11192M86J00-000 HOSE,SEPARATOR DRAIN 1 Rp12.500
4 11194M86J00-000 CLAMP,SEP DRAIN HOSE 2 Rp11.000
5 11193M86J00-000 HOSE,SEPARATOR INLET 1 Rp39.000
6 11195M86J00-000 CLAMP,SEP INLET HOSE 2 Rp11.000
7 11196M86J01-000 BRACKET,SEP INLET HOSE 1 Rp19.000
8 11198M86J00-000 •CLAMP,BREATHER HOSE 1 -
9 13943M86J40-000
SUB: 13943M86J00-000		 BOLT (6X14) 2 Rp5.500
10 DISCONTINUE
SUB: 11197M86J00-000		 PIPE,CRANKCASE VENT 1 -
11 11182M86J00-000 BOLT (6X20) 6 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
