ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

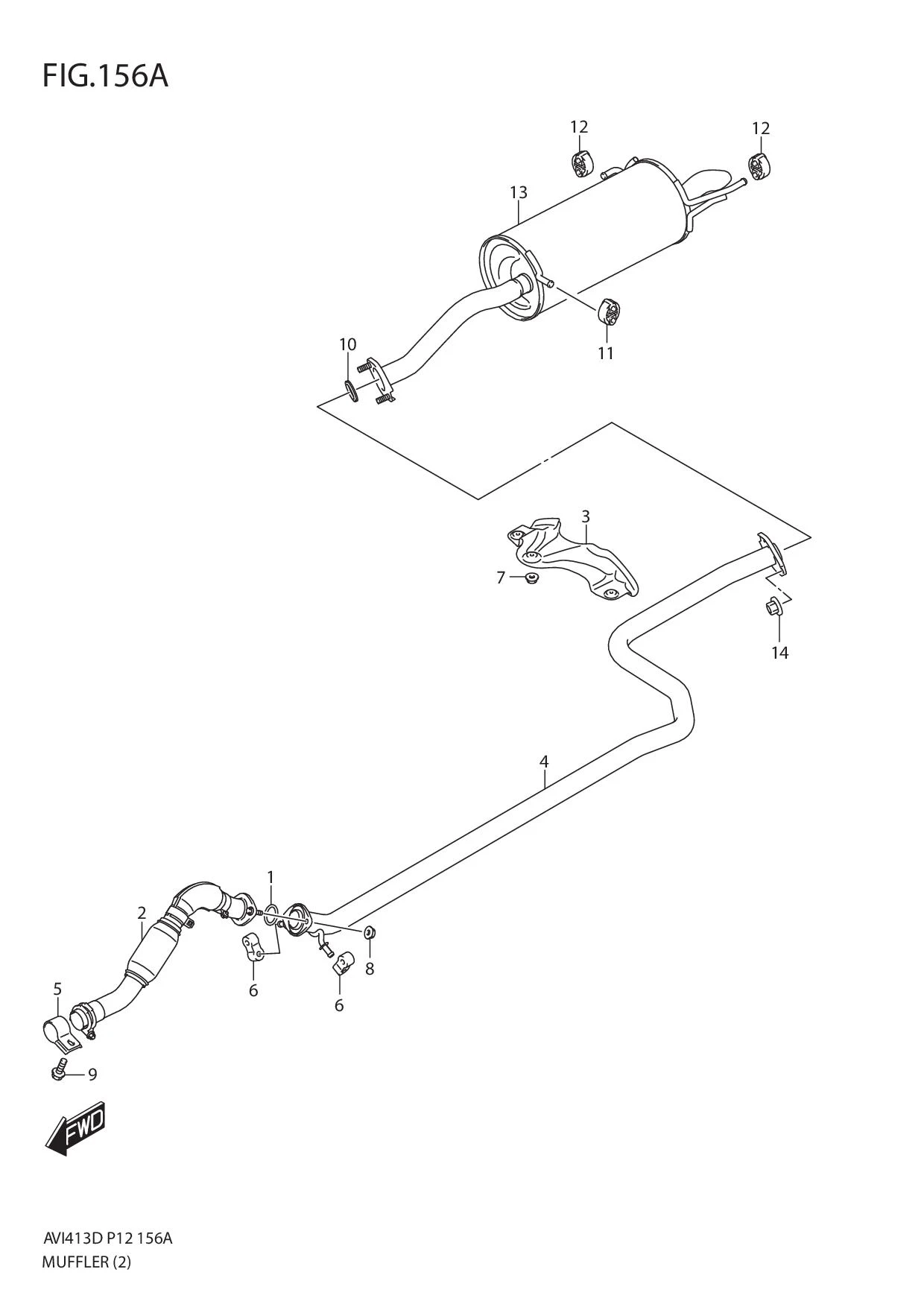

FIG.156A MUFFLER

FIG.156A MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14184-60G00-000 GASKET,EXH PIPE 1 Rp74.500
2 14190M60M51-000 PIPE,EXH PIPE 1 Rp1.589.500
3 14232M74L00-000 INSULATOR,PARKING CABLE HEAT 1 Rp57.000
4 14250M60M50-000 PIPE,EXH CENTER 1 Rp1.127.000
5 14271M86J00-000 BRACE,CATALYTIC CONV 1 Rp39.000
6 14281M60M10-000 MOUNTING,MUF 2 Rp47.500
7 14357M79M00-000 NUT,INSULATOR 3 Rp5.500
8 09159M10049-000 NUT 2 Rp10.500
9 01550-1025A-000
SUB: 01550B1025AN000		 BOLT 1 Rp3.500
10 14182M79F11-000 GASKET,EXH PIPE 1 Rp14.000
11 14281M60M20-000 MOUNTING,MUFFLER 1 Rp48.000
12 14281-80JA0-000
SUB: 14281B80JA0N000		 MOUNTING,MUFFLER 2 Rp67.500
13 14300M60M00-000 MUFFLER 1 Rp2.613.000
14 09159M10049-000 NUT 2 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
