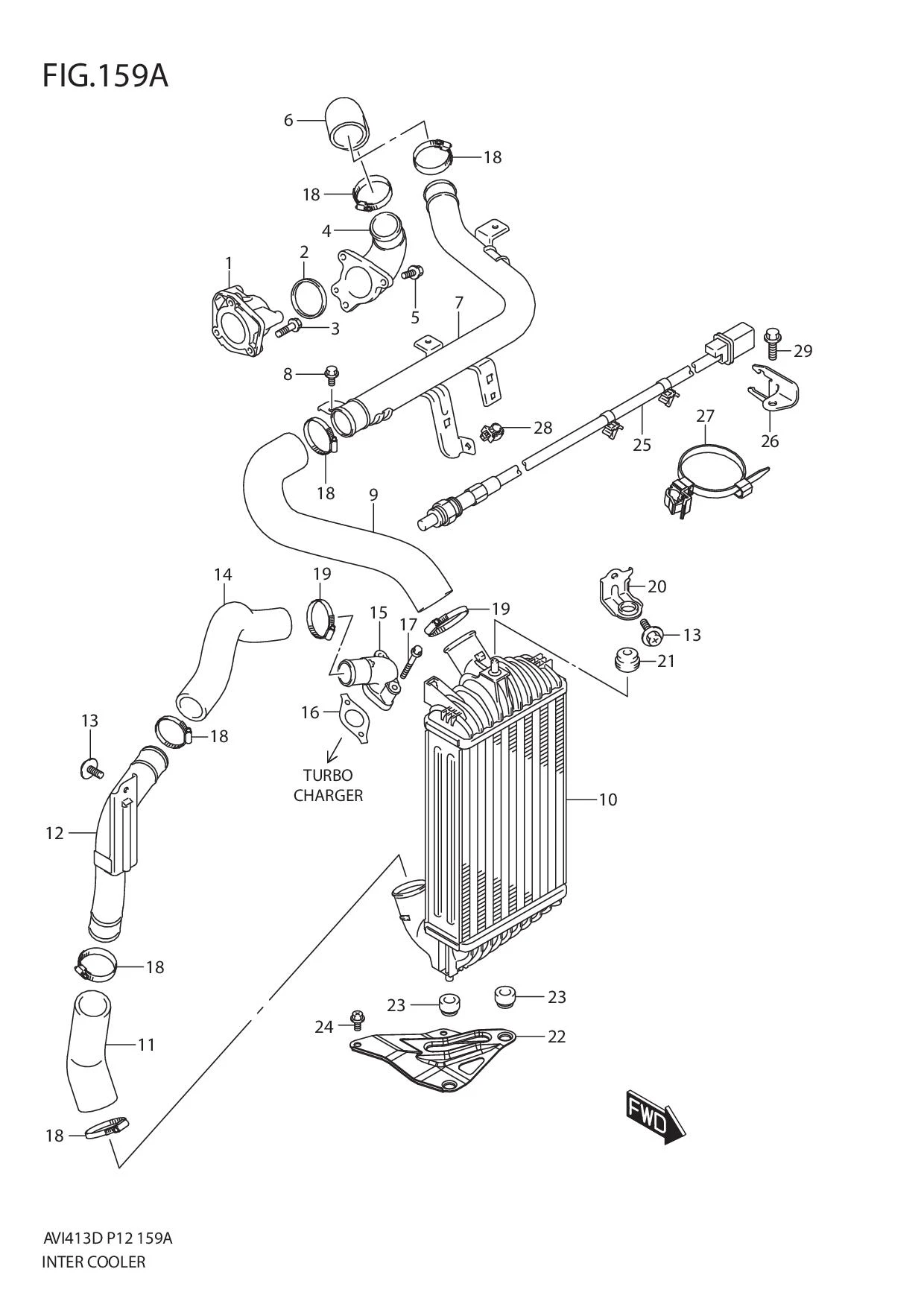

FIG.159A INTER COOLER

FIG.159A INTER COOLER
No No. Part Description Qty Price Per Pcs Remarks
1 13441M55KD0-000 SPACER,AIR INTAKE JOINT 1 Rp148.000
2 13442M55KD0-000 GASKET,AIR INTAKE JOINT 1 Rp30.500
3 01550-0625B-000 BOLT 3 Rp15.000
4 13141M60M50-000 JOINT,AIR INTAKE 1 Rp136.500
5 01550-0620A-000 BOLT 3 Rp3.500
6 13666M55KE0-000 HOSE,INTER COOLER OUTLET NO.3 1 Rp213.500
7 13670M60M50-000 PIPE,INTER COOLER 1 Rp203.000
8 01550-0612B-000 BOLT 2 Rp16.500
9 13663M74L61-000
SUB: 13663M74L60-000		 HOSE,INTER COOLER OUTLET NO.1 1 Rp466.000
10 13620M60M50-000 COOLER,INTER 1 Rp2.363.000
11 13662M60M50-000 HOSE,INTER COOLER INLET NO.2 1 Rp315.500
12 13660M74L50-000 PIPE,INTER COOLER 1 Rp103.500
13 09122-76003-000 BOLT 2 Rp15.000
14 13661M60M60-000 HOSE,INTER COOLER INLET NO.1 1 Rp506.000
15 13961M60M50-000 JOINT,AIR INTAKE 1 Rp107.000
16 13965M60M50-000 GASKET,TURBO OUTLET AIR PIPE 1 Rp25.000
17 01550-0655A-000 BOLT 2 Rp20.500
18 13891M74L50-000 CLAMP,INTER COOLER HOSE 6 Rp40.000
19 13892M74L50-000 CLAMP,INTER COOLER HOSE 2 Rp39.500
20 13668M74L50-000 BRACKET,INTER COOLER UPPER 1 Rp8.500
21 13625M74L50-000 GROMMET 1 Rp6.000
22 13669M68L50-000 BRACKET,INTER COOLER 1 Rp33.000
23 17878M86J00-000 MOUNT,INTER COOLER 2 Rp5.500
24 01551-0816C-000 BOLT 2 Rp13.500
25 18213M74L50-000 SENSOR,UEGO 1 Rp5.183.500
26 18214-74L50-000 BRACKET,UEGO SENSOR 1 Rp33.000
27 09407M19405-000 CLAMP 1 Rp13.000
28 09403M08L03-000 CLAMP 1 Rp10.500
29 01550-0612B-000 BOLT 1 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
