ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

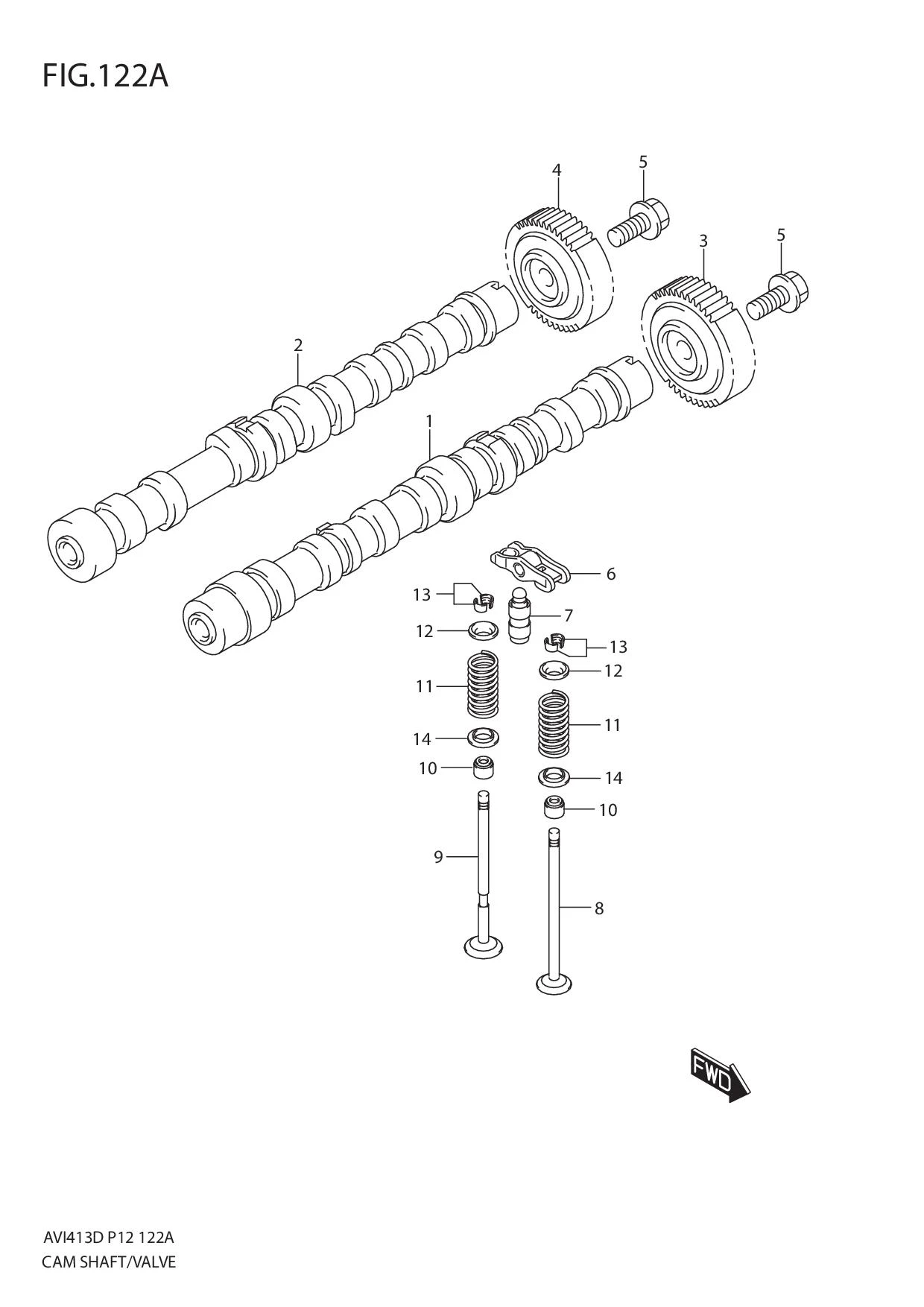

FIG.122A CAM SHAFT/VALVE

FIG.122A CAM SHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12711M86J10-000
SUB: 12711M86J00-000		 CAMSHAFT,RH 1 Rp1.696.500
2 12715M86J10-000
SUB: 12715M86J00-000		 CAMSHAFT,LH 1 Rp2.689.500
3 12741M55KF0-000
SUB: 12741M55KE0-000		 GEAR,CAMSHAFT REAR RH 1 Rp816.000
4 12742M55KF0-000 GEAR,CAMSHAFT REAR LH 1 Rp629.000
5 12754M86J00-000 BOLT,CAMSHAFT GEAR (12X33) 2 Rp13.000
6 12840M86J20-000 ARM,ROCKER 16 Rp74.500
7 12850M86J20-000 ADJUSTER,HYDR VALVE LASH 16 Rp78.000
8 12911M86J20-000 VALVE,INTAKE 8 Rp90.500
9 12915M86J20-000 VALVE,EXHAUST 8 Rp126.000
10 12919M86J30-000
SUB: 12919M86J00-000		 SEAL,VALVE STEM 16 Rp13.500
11 12921M86J00-000 SPRING,VALVE 16 Rp13.000
12 12931M86J00-000 RETAINER,VALVE SPRING UPPER 16 Rp12.500
13 12932M86J00-000 COTTER,VALVE 32 Rp5.000
14 12933M86J00-000 SEAT,VALVE SPRING 16 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
