ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

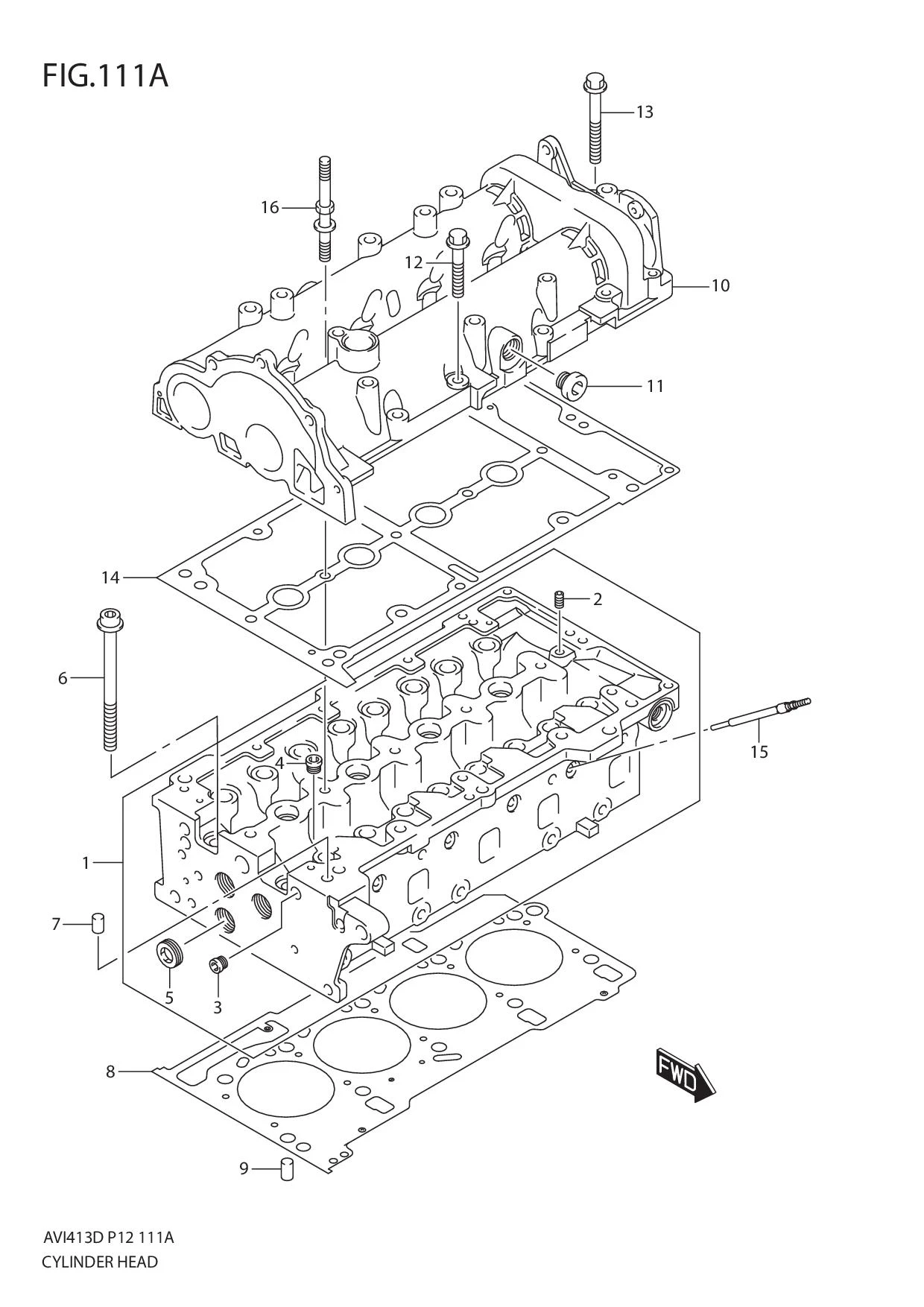

FIG.111A CYLINDER HEAD

FIG.111A CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100M55KF1-000
SUB: 11100M55KF0-000		 HEAD ASSY,CYLINDER 1 Rp7.507.000
2 11281M86J30-000
SUB: 11281M86J00-000		 •PLUG (M8) 1 Rp8.500
3 11282M86J00-000 •PLUG (M10) 5 Rp7.000
4 11283M86J00-000 •PLUG (M12) 4 Rp7.000
5 11284M86J30-000
SUB: 11284M86J00-000		 •PLUG (M20) 3 Rp17.000
6 11117M86J00-000 BOLT,CYLINDER HEAD (10X119) 10 Rp33.000
7 11129M86J00-000 PIN,CAMSHAFT HSG (M8) 2 Rp5.500
8-3 11141M86J20-0C0 GASKET,CYL HEAD (T:0.92) 1 Rp345.000
8-2 11141M86J20-0B0 GASKET,CYL HEAD (T:0.82) 1 Rp337.000
8-1 11141M86J20-0A0 GASKET,CYL HEAD (T:0.72) 1 Rp288.000
9 11288M86J00-000 PIN,CYL HEAD TO BLOCK 2 Rp5.000
10 11171M68L10-000 CASE,CAMSHAFT HSG 1 Rp4.695.500
11 11297M86J00-000 PLUG,CMSHFT HSG TIMING (M16) 2 Rp26.500
12 11178M86J00-000 BOLT,CAMSHAFT HSG SHORT 15 Rp7.000
13 11179M86J00-000 BOLT,CAMSHAFT HSG LONG 1 Rp8.500
14 11189M86J20-000 GASKET,CAMSHAFT HSG 1 Rp139.500
15 18550M86J00-000 PLUG,GLOW 4 Rp364.500
16 15716M86J00-000 STUD BOLT (M8) 2 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
