ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

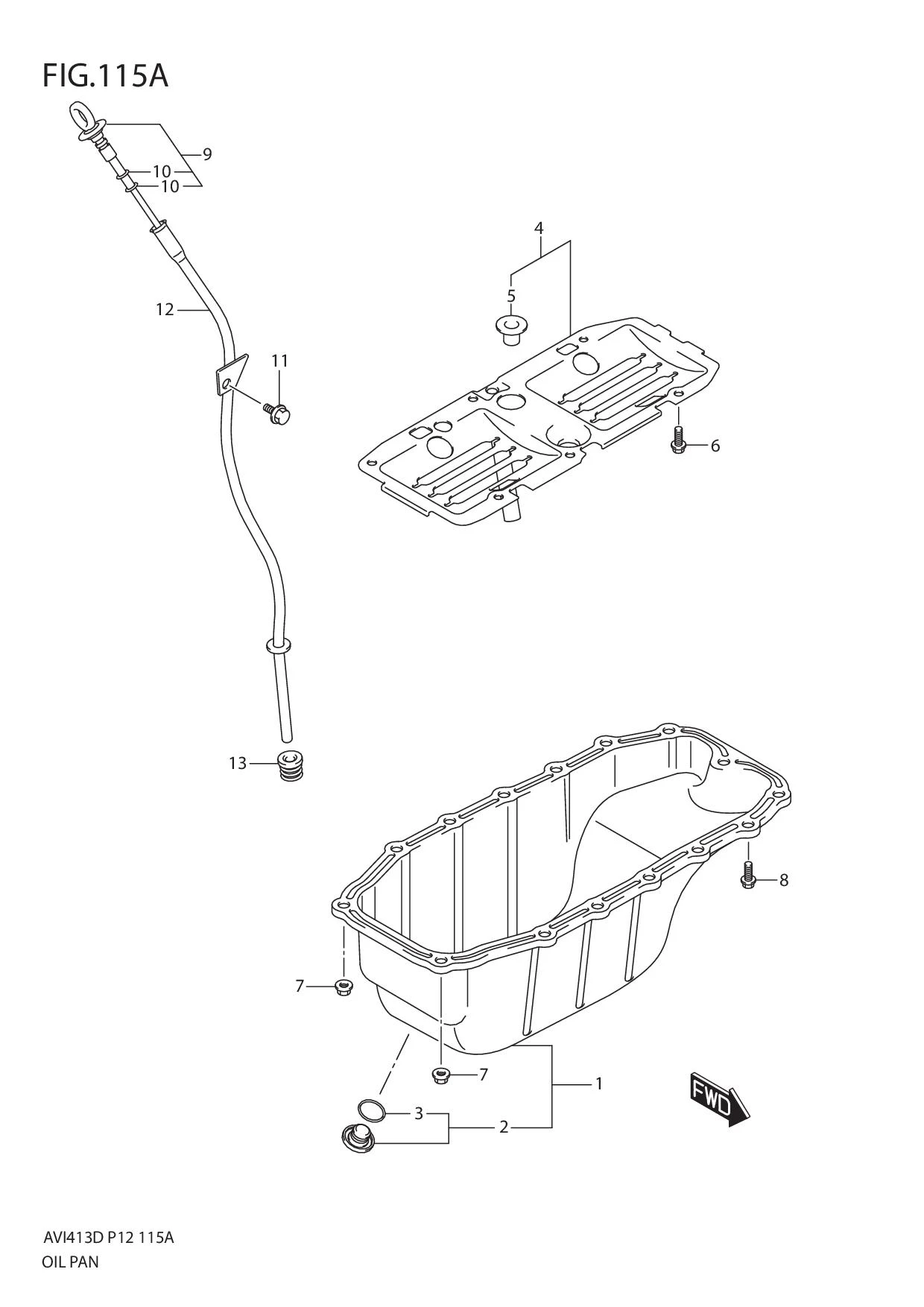

FIG.115A OIL PAN

FIG.115A OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11510M86J30-000
SUB: 11510M86J00-000		 PAN,OIL 1 Rp306.500
2 16590M86J30-000
SUB: 16590M86J00-000		 •PLUG ASSY,OIL DRAIN 1 Rp42.500
3 16592M86J30-000
SUB: 16592M86J00-000		 ••GASKET,OIL DRAIN 1 Rp5.500
4 11512M86J00-000 PLATE,OIL PAN BAFFLE 1 Rp117.500
5 11514M86J00-000 •GASKET,PIPE BAFFLE PLATE 1 Rp9.500
6 11515M86J00-000 BOLT,BAFFLE PLATE (6X18) 6 Rp5.500
7 16118M86J30-000 NUT,OIL PAN TO BLK (M6) 2 Rp4.500
8 16595M86J00-000 BOLT,OIL PAN TO BLK (6X14) 13 Rp5.000
9 16910M86J00-000 GAUGE,OIL LEVEL 1 Rp86.000
10 16912M63P00-000 •O RING 2 -
11 16595M86J00-000 BOLT,LEVEL GAUGE GUIDE (6X14) 1 Rp5.000
12 16930M79MA0-000 GUIDE,OIL LEVEL GAUGE 1 Rp58.500
13 16935M86J00-000 GASKET,OIL LEVEL GAUGE GUIDE 1 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
