ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

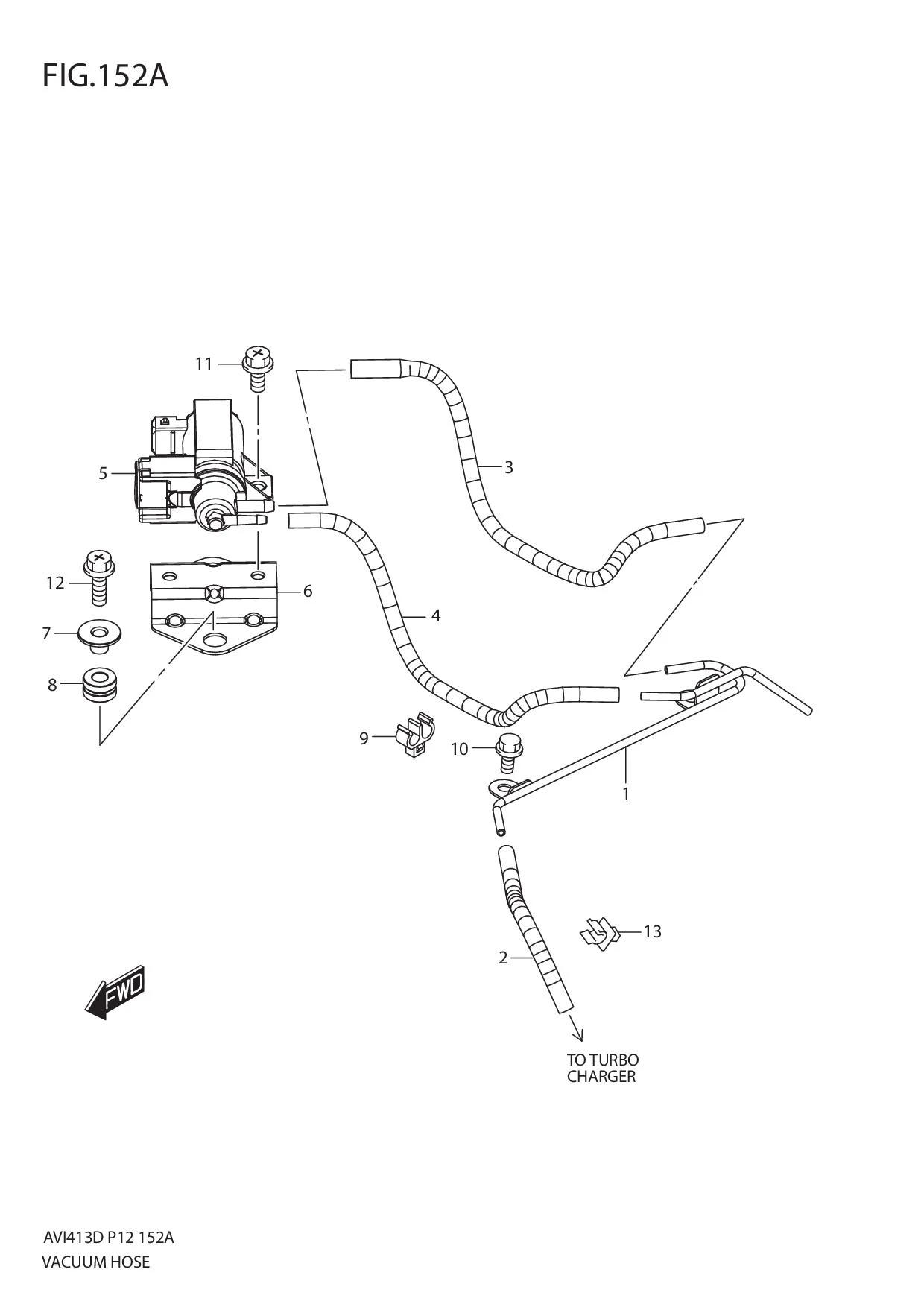

FIG.152A VACUUM HOSE

FIG.152A VACUUM HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 13690M60M50-000 PIPE,VACUUM 1 Rp42.500
2 13691M60M50-000 HOSE,VACUUM (VGT TO PIPE) 1 Rp18.500
3 13692M60M50-000 HOSE,VACUUM (PIPE TO VSV) 1 Rp14.000
4 13693M60M50-000 HOSE,VACUUM (PIPE TO VSV) 1 Rp14.000
5 18117M60M50-000
SUB: 18117M79J51-000		 VALVE ASSY,T/C VACUUM COTROL 1 Rp1.186.500
6 18417M60M50-000 BRACKET,VAC CONTROL VALVE 1 Rp24.000
7 09169M07007-000 WASHER 2 Rp10.000
8 09320-08501-000 CUSHION 2 Rp21.500
9 09403M07L03-000 CLAMP 1 Rp11.500
10 01550-0612B-000 BOLT 2 Rp16.500
11 09122-76001-000 SCREW 2 Rp16.500
12 02162-0620A-000
SUB: 02162-0620C-000		 SCREW 2 Rp5.500
13 09403M07L02-000 CLAMP 2 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
