ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.116A OIL FILTERFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.150A AIR CLEANERFIG.152A VACUUM HOSEFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.159A INTER COOLERFIG.160A FUEL PUMPFIG.174A INJECTION PUMPFIG.176A OIL PUMP (PIERBURG)FIG.176B OIL PUMP (UCAL)FIG.178A OIL SEPARATORFIG.17AA FUEL INJECTORFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.192A EGR VALVEFIG.194A VACUUM PUMPFIG.196A VACUUM TANKFIG.199A LABEL

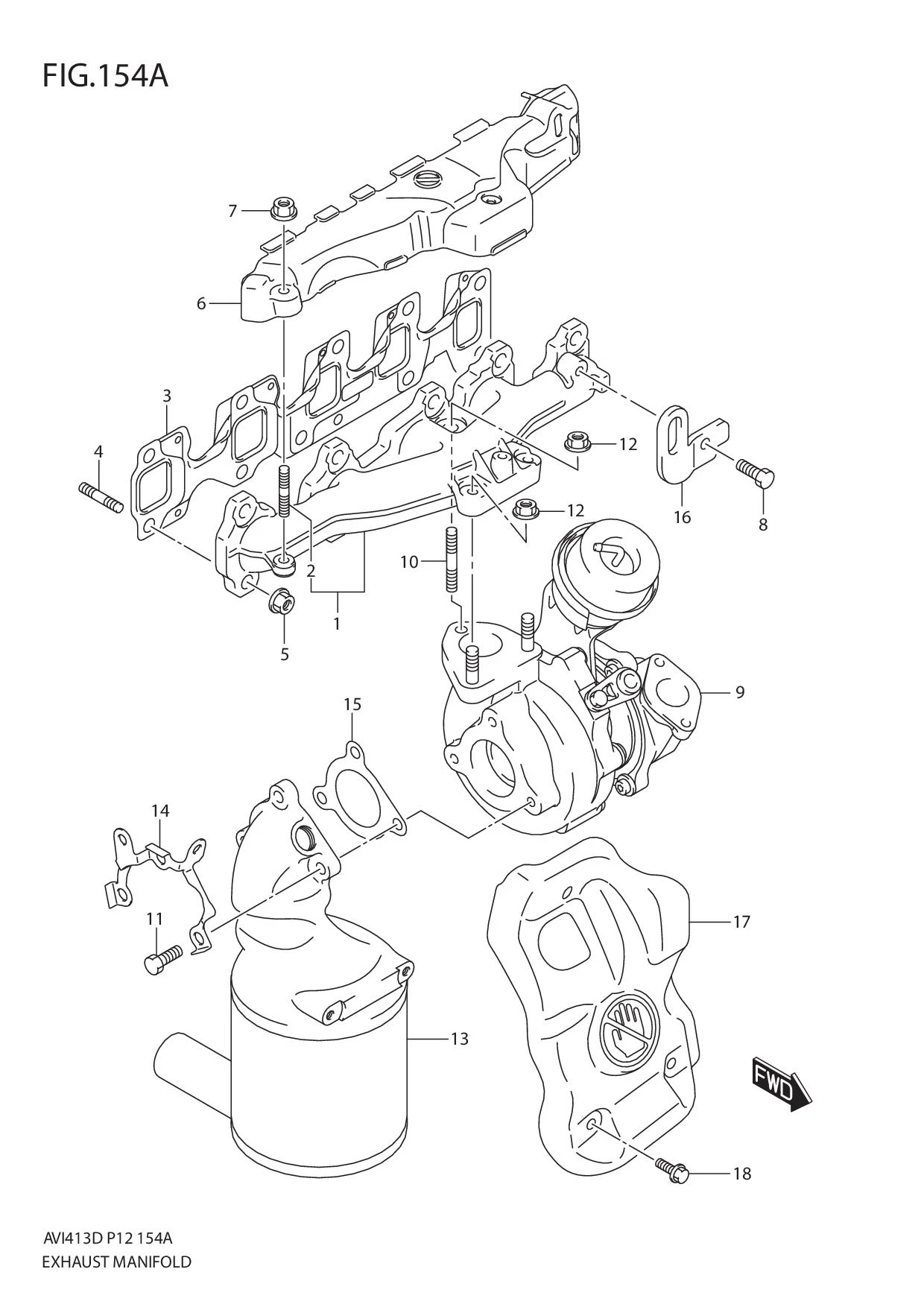

FIG.154A EXHAUST MANIFOLD

FIG.154A EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 14110M86J00-000 MANIFOLD,EXHAUST 1 Rp981.000
2 14127M86J00-000 •STUD BOLT 2 Rp8.500
3 14140M86J30-000 GASKET,EXHAUST MANIFOLD 1 Rp131.500
4 14118M86J00-000 STUD BOLT (M8) 10 Rp7.000
5 14119M86J00-000 NUT,EXHAUST MANIFOLD (M8) 10 Rp13.000
6 14121M86J00-000 COVER,EXHAUST MANIFOLD 1 Rp182.000
7 14128M86J00-000 NUT,EXH MANF COVER (M8) 2 Rp10.500
8 14117M86J00-000 BOLT,ENG HOOK (8X25) 1 Rp18.000
9 13900M60M50-000 CHARGER ASSY,TURBO 1 Rp21.203.500
10 14116M86J00-000 STUD BOLT (M8) 1 Rp71.500
11 14117M86J00-000 BOLT,TC OUTLET PIPE (8X25) 3 Rp18.000
12 14119M86J00-000 NUT,TC & EXH MANF (M8) 3 Rp13.000
13 14130M60M50-000 CASE,CATALYTIC CONV 1 Rp21.393.000
14 14133M60M50-000 PLATE,TC OUTLET PIPE 1 Rp33.500
15 14182M55KF0-000 GASKET,TC OUTLET PIPE 1 Rp27.000
16 11851M86J00-000 HOOK,ENG EXH SIDE 1 Rp19.000
17 14121M60M50-000 COVER,CATALYST UPPER 1 Rp43.000
18 01550-0612C-000 BOLT 3 Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
