ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body

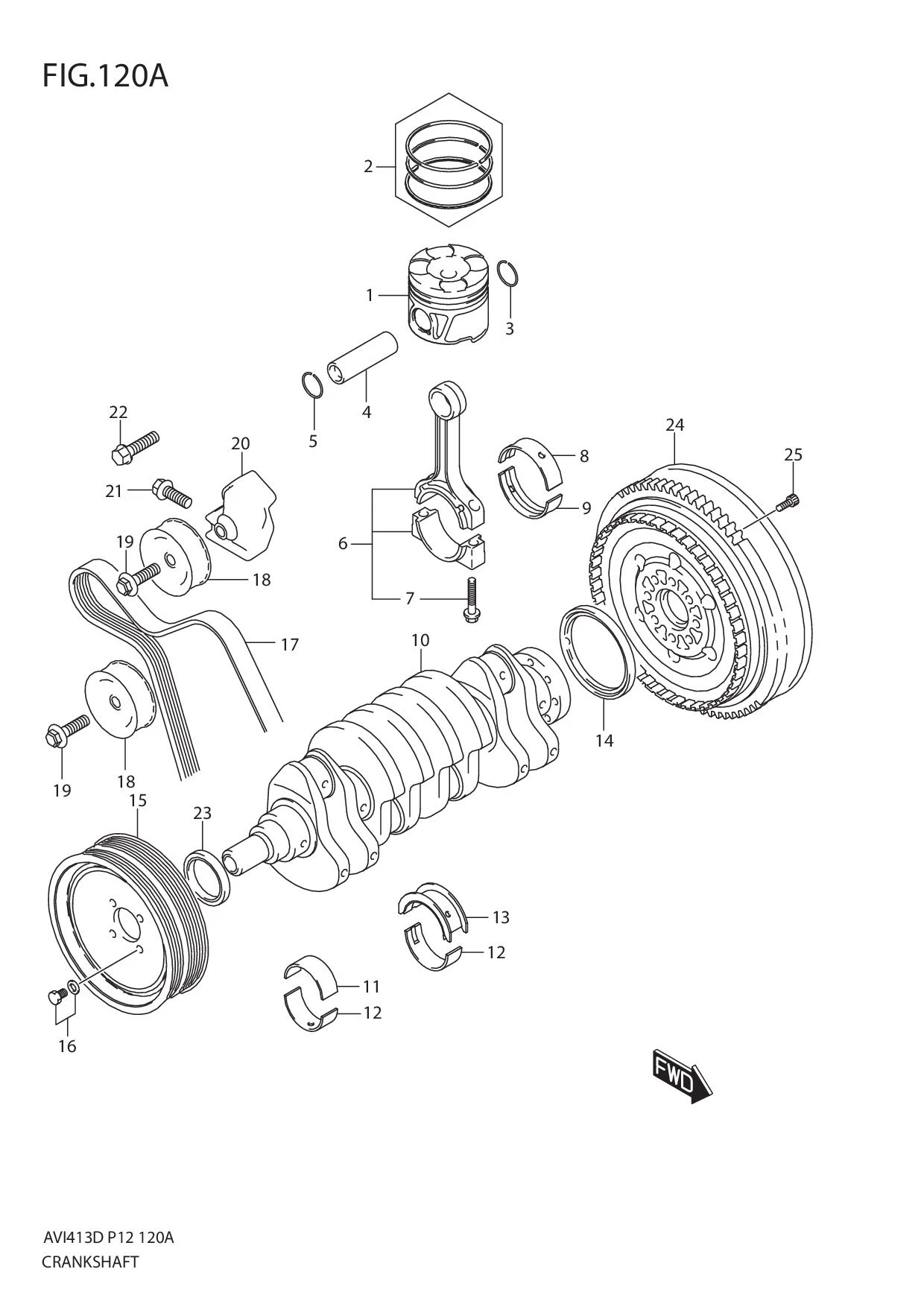

FIG.120A CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	12110M55KE0-0B0	PISTON (CLASS:B)	4	Rp1.247.000
1-1	12110M55KE0-0A0	PISTON (CLASS:A)	4	Rp1.244.500
1-4	12110M55KD0-040	PISTON (OS:0.40)	4	Rp1.480.000
1-3	12110M55KE0-0C0	PISTON (CLASS:C)	4	Rp1.419.500
2-1	12140M86J40-000	RING SET,PISTON (STD)	4	Rp422.500
2-2	12140M86J00-040	RING SET,PISTON (OS:0.40)	4	Rp1.618.000
3	12164M86J00-000	CIRCLIP,PISTON PIN	4	Rp8.500
4	12151M86J00-000	PIN,PISTON	4	Rp112.500
5	12164M86J00-000	CIRCLIP,PISTON PIN	4	Rp8.500
6	12160M86J30-000	CONNROD ASSY	4	Rp531.500
7	12163M86J00-000	•BOLT	8	Rp21.000
8-1	12181M68L00-0A0	BEARING,CONNROD UPPER (RED)	4	Rp179.000
8-2	12181M68L00-0B0	BEARING,CONNROD UPPER (BLUE)	4	Rp184.000
8-3	12181M68L00-0AA	BEARING,CONNROD UPPER (BROWN)	4	Rp295.500
8-4	12181M68L00-0BA	BEARING,CONNROD UPPER (GREEN)	4	Rp262.500
9-2	12182M86J40-0B0 SUB: 12182M86J00-0B0	BEARING,CONNROD LOWER (BLUE)	4	Rp56.500
9-4	12182M86J40-0BA SUB: 12182M86J00-0BA	BEARING,CONNROD LOWER (GREEN)	4	Rp821.000
9-3	12182M86J40-0AA SUB: 12182M86J00-0AA	BEARING,CONNROD LOWER (BROWN)	4	Rp674.500
9-1	12182M86J40-0A0 SUB: 12182M86J00-0A0	BEARING,CONNROD LOWER (RED)	4	Rp54.500
10	12220M86J00-000	CRANKSHAFT ASSY	1	Rp5.338.000
11-1	12341M68L00-0A0	BEARING,CRANK UPPER (RED)	4	Rp45.500	STD,T:1.8
11-2	12341M68L00-0B0	BEARING,CRANK UPPER (BLUE)	4	Rp46.500	STD,T:1.8
11-3	12341M68L00-0C0	BEARING,CRANK UPPER (YELLOW)	4	Rp48.000	STD,T:1.8
11-4	12341M68L00-0AA	BEARING,CRANK UPPER (BROWN)	4	Rp607.500	US:0.127,T:1.8
11-5	12341M68L00-0BA	BEARING,CRANK UPPER (GREEN)	4	Rp602.500	US:0.127,T:1.8
11-6	12341M68L00-0CA	BEARING,CRANK UPPER (BLACK)	4	Rp607.500	US:0.127,T:1.8
12-6	12345M68L00-0CA	BEARING,CRANK LOWER (BLACK)	5	Rp567.000	US:0.127,T:1.8
12-5	12345M68L00-0BA	BEARING,CRANK LOWER (GREEN)	5	Rp562.000	US:0.127,T:1.8
12-3	12345M68L00-0C0	BEARING,CRANK LOWER (YELLOW)	5	Rp45.000	STD,T:1.8
12-2	12345M68L00-0B0	BEARING,CRANK LOWER (BLUE)	5	Rp43.500	STD,T:1.8
12-1	12345M68L00-0A0	BEARING,CRANK LOWER (RED)	5	Rp42.500	STD,T:1.8
12-4	12345M68L00-0AA	BEARING,CRANK LOWER (BROWN)	5	Rp567.000	US:0.127,T:1.8
13-11	12351M68L00-0BC	BEARING,THRUST (WHITE/GREEN)	1	Rp1.332.000	US:0.127,T:1.8
13-12	12351M68L00-0CC	BEARING,THRUST (WHITE/BLACK)	1	Rp1.342.000	US:0.127,T:1.8
13-10	12351M68L00-0AC	BEARING,THRUST (WHITE/BROWN)	1	Rp1.342.000	US:0.127,T:1.8
13-9	12351M68L00-0CB	BEARING,THRUST (WHITE/YELLOW)	1	Rp1.342.000	US:0.127,T:1.8
13-8	12351M68L00-0BB	BEARING,THRUST (WHITE/BLUE)	1	Rp1.034.500	US:0.127,T:1.8
13-7	12351M68L00-0AB	BEARING,THRUST (WHITE/RED)	1	Rp1.034.500	US:0.127,T:1.8
13-5	12351M68L00-0BA	BEARING,THRUST (GREEN)	1	-	STD,T:1.8
13-4	12351M68L00-0AA	BEARING,THRUST (BROWN)	1	-	STD,T:1.8
13-3	12351M68L00-0C0	BEARING,THRUST (YELLOW)	1	Rp203.000	STD,T:1.8
13-2	12351M68L00-0B0	BEARING,THRUST (BLUE)	1	Rp199.000	STD,T:1.8
13-1	12351M68L00-0A0	BEARING,THRUST (RED)	1	Rp193.500	STD,T:1.8
13-6	12351M68L00-0CA	BEARING,THRUST (BLACK)	1	-	STD,T:1.8
14	12361M86J20-000	SEAL,CRANK REAR OIL	1	Rp281.500
15	12610M79MA0-000	PULLEY,CRANKSHAFT	1	Rp1.973.500
16	12618M79MA0-000	BOLT,CRANKSHAFT PULLEY	4	Rp6.500
17	17522M79MA1-000 SUB: 17522M79MA0-000	BELT,GENERATOR 6K980	1	Rp311.000
18	17550M79MA0-000	PULLEY,BELT IDLER	2	Rp971.500
19	17551M79MA0-000	BOLT,BELT IDLER	2	Rp11.000
20	17555M79MB0-000	BRACKET,BELT IDLER	1	Rp179.500
21	01550-1030B-000	BOLT	1	Rp25.500
22	01550-1040A-000	BOLT	1	Rp7.000
23	16115M86J20-000	SEAL,CRANK FR OIL	1	Rp106.500
24	12620M86J30-000 SUB: 12620M86J10-000	FLYWHEEL ASSY	1	Rp1.025.500
25	12624M86J40-000 SUB: 12624M86J00-000	BOLT (8X22)	8	Rp12.000
