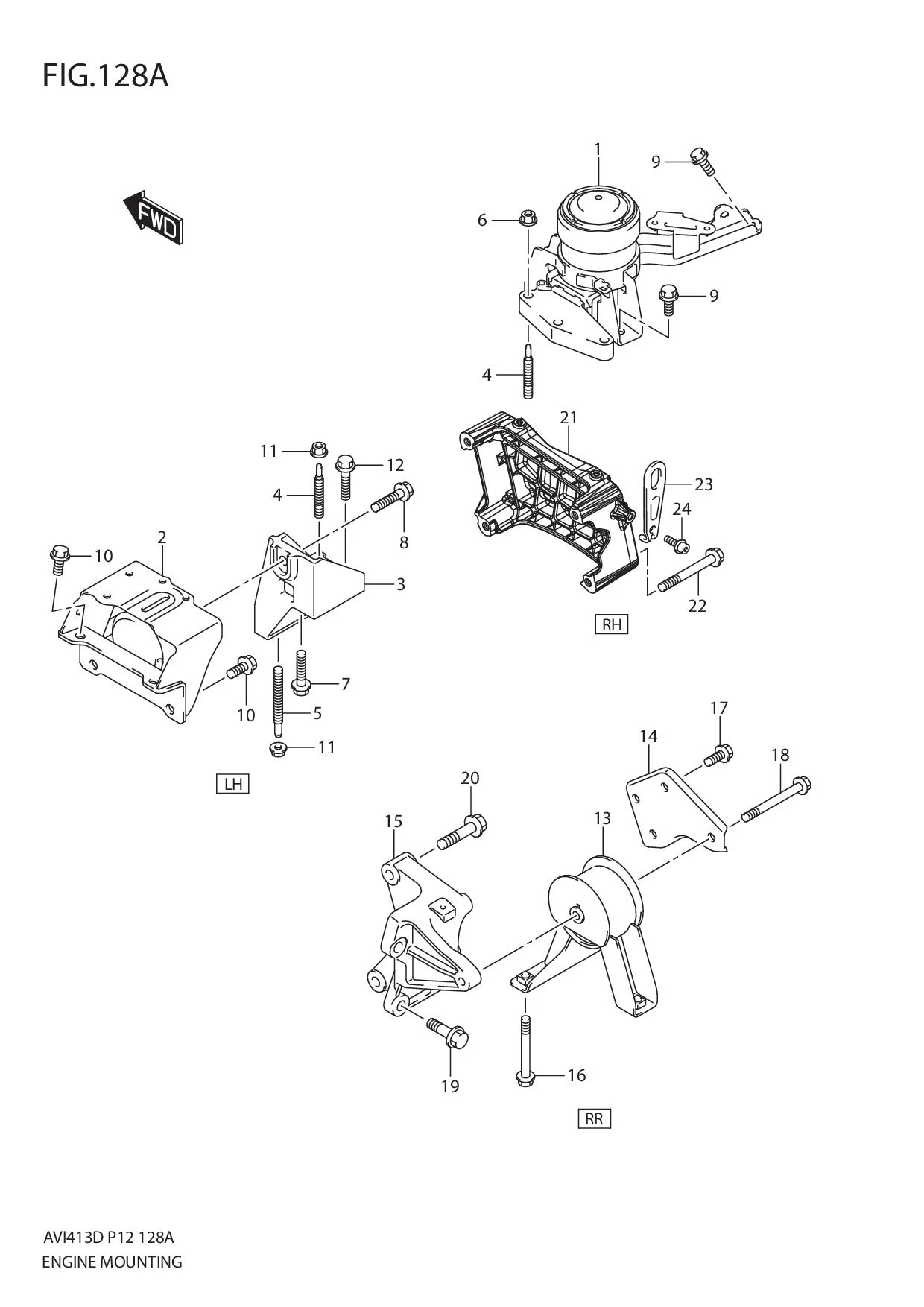

FIG.128A ENGINE MOUNTING

FIG.128A ENGINE MOUNTING
No No. Part Description Qty Price Per Pcs Remarks
1 11610M60M50-000 MOUNTING,ENG RH 1 Rp2.017.000
2 11620M74L50-000 MOUNTING,ENG LH 1 Rp813.000
3 11651M74L50-000 BRACKET,ENG LH MTG 1 Rp506.000
4 11653-79J50-000 STUD BOLT 4 Rp40.000
5 11653-80JA0-000 STUD BOLT 1 Rp55.000
6 08316-1010A-000 NUT 3 Rp3.500
7 01550-1045A-000
SUB: 01550B1045AN000		 BOLT 1 Rp11.500
8 01550-1245A-000 BOLT 1 Rp7.000
9 01551-1025A-000 BOLT 3 Rp29.000
10 01551-1025A-000 BOLT 4 Rp29.000
11 08316-1010A-000 NUT 2 Rp3.500
12 01550-1045A-000
SUB: 01550B1045AN000		 BOLT 1 Rp11.500
13 11710M74L50-000 MOUNTING,ENG RR 1 Rp588.000
14 11710M74L50-000 BRACKET,ENG RR MTG 1 Rp588.000
15 11749M74L50-000 BRACKET,ENG RR MTG NO.1 1 Rp600.500
16 09113-10004-000 BOLT (10X85) 3 Rp29.000
17 01550-1025A-000
SUB: 01550B1025AN000		 BOLT 3 Rp3.500
18 01550M1095A-000 BOLT 1 Rp12.500
19 01550-1240A-000 BOLT 4 Rp34.500
20 01550-1255A-000 BOLT 1 Rp31.000
21 11631M55KF0-000 BRACKET,ENG MTG TIMING SIDE 1 Rp905.000
22 11632M86J00-000 BOLT 4 Rp16.000
23 11852M86J00-000 HOOK,ENGINE 1 Rp17.000
24 18136M86J00-000 BOLT,ENG HOOK 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
