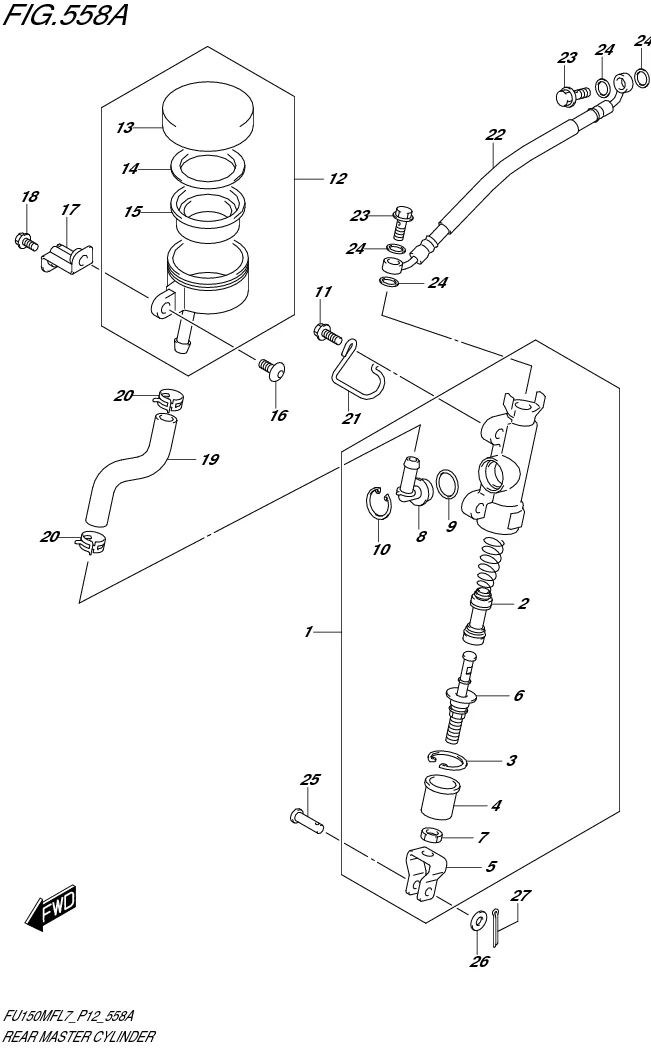

FIG. 558A REAR MASTER CYLINDER

FIG. 558A REAR MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 69600-12K00-000 CYLINDER ASSY, REAR MASTER 1 Rp555.500
2 69600-12810-000 .PISTON/CUP SET 1 Rp113.500
3 69665-12K00-000 .CIRCLIP 1 Rp70.000
4 69691-12K00-000 .BOOT 1 Rp35.000
5 69692-12K00-000 .YOKE 1 Rp47.500
6 69670-12K00-000 .ROD, PUSH 1 Rp66.000
7 69693-12K00-000 .NUT 2 Rp22.500
8 69672-12K00-000 .CONNECTOR 1 Rp29.500
9 69686-12K00-000 .O RING 1 Rp33.000
10 69674-12K00-000 .CIRCLIP 1 Rp35.000
11 01547-0616A-000 BOLT 2 Rp6.500
12 69740-12K00-000 TANK ASSY, RESERVOIR 1 Rp129.500
13 69669-12K00-000 .CAP 1 Rp57.500
14 69668-12K00-000 .PLATE 1 Rp31.500
15 69667-12K00-000 .DIAPHRAGM 1 Rp36.000
16 02142-0612A-000 SCREW 1 Rp4.000
17 69750-25G10-000 BRACKET, RESERVOIR TANK 1 Rp8.500
18 01550-0610B-000
SUB: 01550B0610AN000		 BOLT 1 Rp3.000
19 69731-12K00-000 HOSE, RESERVOIR TANK 1 Rp66.000
20 69735-12K00-000 CLIP, HOSE 2 Rp29.000
21 69734-12K00-000 CLAMP, HOSE 1 Rp5.000
22 69480-12K00-000 HOSE, REAR BRAKE 1 Rp353.000
23 59492-12K00-000 BOLT, BRAKE FLUID 2 Rp52.500
24 59502-12K01-000
SUB: 59502-12K00-000		 WASHER, BRAKE FLUID 4 Rp40.500
25 09200-06037-000
SUB: 09200-06068-000		 PIN (6X18.2) 1 Rp3.500
26 08322-0106A-000
SUB: 08322B0106AN000		 WASHER 1 Rp2.500
27 04111-2015A-000 PIN 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
