All New Satria F150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 410A PILLION RIDER HANDLEFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 445A FRAME COVERFIG. 451A HEADLAMP HOUSINGFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 483A UNDER COWLINGFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 536A FRONT BRAKE HOSEFIG. 537A FRONT MASTER CYLINDERFIG. 541A REAR SWINGINGARMFIG. 550A REAR WHEELFIG. 555A REAR CALIPERFIG. 558A REAR MASTER CYLINDER

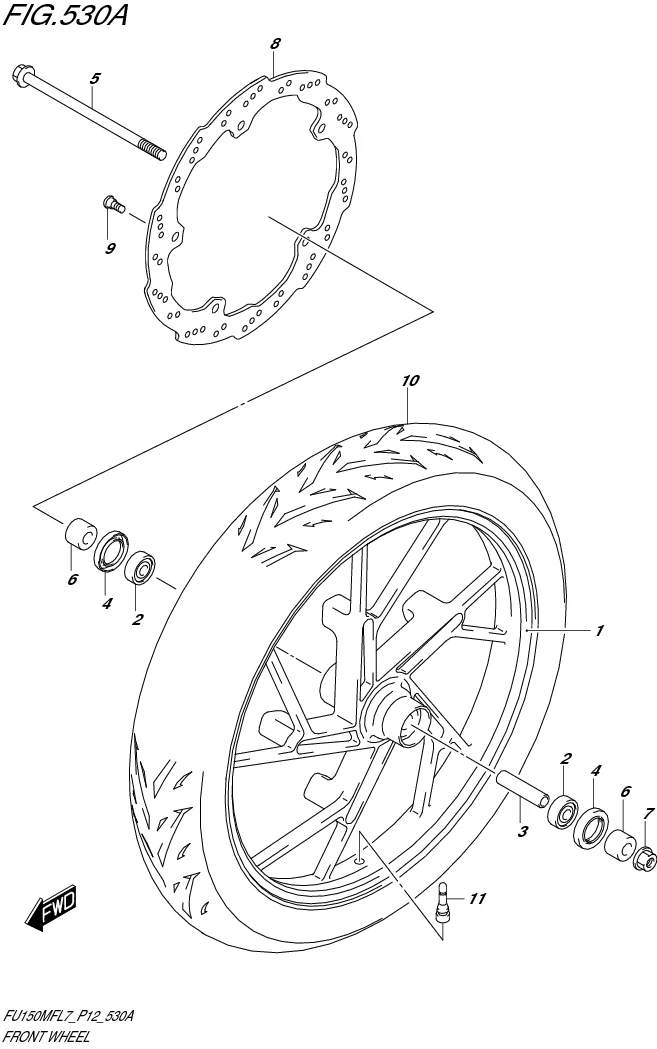

FIG. 530A FRONT WHEEL

FIG. 530A FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1-1 54111-25G70-YSW WHEEL, FRONT (17X1.40) (BLACK)FOR GTA, ANM, AM7,YUJ 1 Rp852.500 FOR GTA, ANM, AM7,YUJ
1-2 54111-25G70-PZW WHEEL, FRONT (17X1.40) (RED)FOR AYX 1 Rp889.000 FOR AYX
2 08113-63017-000
SUB: 08113-63010-000		 BEARING 2 Rp29.500
3 09180-12145-000
SUB: 09180B12145N000		 SPACER (12.5X19X58) 1 Rp9.500
4 09285-25008-000
SUB: 09285-25003L000		 OIL SEAL (25X40X6) 2 Rp8.000
5 54711-25G00-000
SUB: 54711B25G00N000		 AXLE, FRONT 1 Rp23.500
6 54751-25G01-000
SUB: 54751B25G01N000		 SPACER, FRONT AXLE RH 2 Rp17.500
7 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000
8 59211-25G60-000 DISC, FRONT BRAKE 1 Rp324.000
9 59218-09G10-000 BOLT 5 Rp7.000
10 55110-12K00-000 TIRE, FRONT (70/90-17M/C 38P NR93 IRC) 1 Rp350.500
11 43130-40J00-000 VALVE ASSY, WHEEL RIM (TR413) 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
