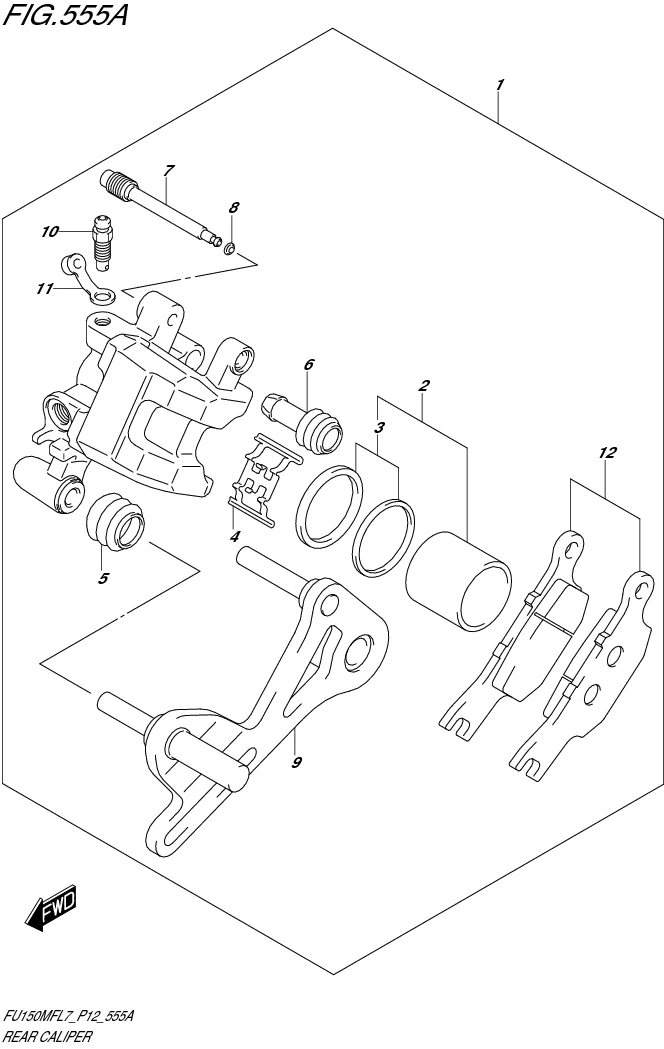

FIG. 555A REAR CALIPER

FIG. 555A REAR CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 69100-12K00-000 CALIPER ASSY, REAR 1 Rp1.412.000
2 69100-12820-000 .PISTON SET 1 Rp498.500
3 69300-12810-000 ..SEAL SET, PISTON 1 Rp83.500
4 69115-12K00-000 .SPRING 1 Rp33.000
5 59112-44B00-000 .BOOT 1 Rp64.500
6 59313-36500-000 ..INSULATOR, AXLE 1 Rp33.000
7 69141-12K00-000 .PIN 1 Rp41.500
8 69145-12K00-000 .D-RING 1 Rp27.000
9 69150-12K00-000 .CARRIER SUBASSY 1 Rp231.500
10 59121-18410-000 .BLEEDER 1 Rp49.500
11 59122-02B40-000 .CAP 1 Rp36.000
12 69100-12830-000 .PAD SET 1 Rp211.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
