All New Satria F150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 410A PILLION RIDER HANDLEFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 445A FRAME COVERFIG. 451A HEADLAMP HOUSINGFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 483A UNDER COWLINGFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 536A FRONT BRAKE HOSEFIG. 537A FRONT MASTER CYLINDERFIG. 541A REAR SWINGINGARMFIG. 550A REAR WHEELFIG. 555A REAR CALIPERFIG. 558A REAR MASTER CYLINDER

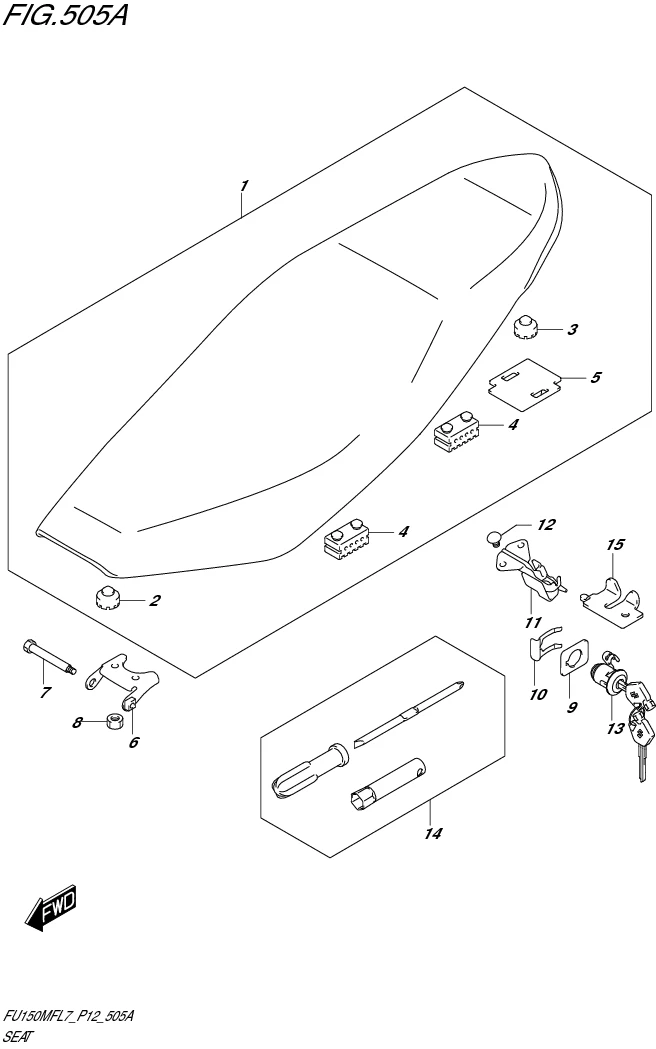

FIG. 505A SEAT

FIG. 505A SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-12K10-QE7
SUB: 45100-12K00-QE7		 SEAT ASSY (BLACK) 1 Rp263.000
2 45148-20GD0-000 .CUSHION, SEAT MOUNT 1 Rp7.000
3 45148-20G90-000 .CUSHION, SEAT MOUNT 2 Rp4.500
4 45149-09G40-000 .CUSHION 4 Rp7.000
5 45289-12K00-000 .PLATE, SEAT BOTTOM FRAME 1 Rp7.000
6 45250-12K00-000 BRACKET, SEAT HINGE UPPER 1 Rp14.000
7 45231-12K00-000 BOLT, SEAT HINGE 1 Rp6.500
8 08310-0006A-000
SUB: 08310B0006AN000		 NUT 2 Rp2.500
9 45288-12K00-000 GUIDE, SEAT LOCK CABLE 1 Rp4.500
10 45289-11F00-000
SUB: 45289B11F00N000		 PLATE, SEAT LOCK ASSY 1 Rp4.000
11 45220-04K10-000 BRACKET, STRIKER SUPPORT 1 Rp28.500
12 02142-0610A-000 SCREW 2 Rp3.500
13 95700-09860-000 LOCK ASSY, SEAT 1 Rp159.000
14 96510-12K00-000 TOOL ASSY 1 Rp23.000
15 45711-12K00-000 GUIDE, SEAT LOCK 1 Rp20.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
