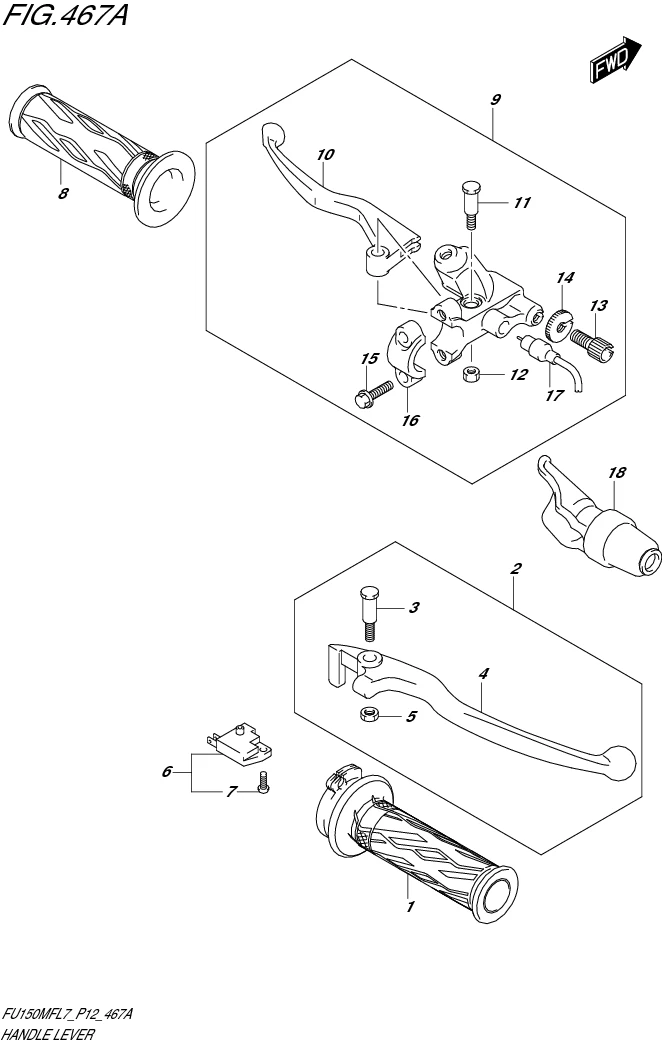

FIG. 467A HANDLE LEVER

FIG. 467A HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-12K01-000
SUB: 57110-12K00-000		 GRIP, THROTTLE 1 Rp26.000
2 57300-30H21-000 LEVER ASSY, BRAKE 1 Rp103.000
3 57431-30H20-000 .BOLT 1 Rp20.500
4 57421-30H10-000 .LEVER, BRAKE 1 Rp70.000
5 57433-30H10-000 .NUT 1 Rp8.500
6 57460-30H00-000 SWITCH ASSY, STOP 1 Rp36.500
7 57465-30H00-000 .SCREW 1 Rp6.500
8 57211-40J01-000
SUB: 57211-40J00-000		 GRIP, LH 1 Rp18.500
9 57500-25GC0-000
SUB: 57500-25G70-000		 LEVER ASSY, CLUTCH 1 Rp143.000
10 57621-23FB0-000
SUB: 57621B23FA0N000		 .LEVER, CLUTCH 1 Rp32.500
11 57431-23F10-000
SUB: 57431B23F10N000		 .BOLT, LEVER SET 1 Rp4.500
12 57513-23F10-000
SUB: 57513B23F10N000		 .NUT, LEVER SET 1 Rp4.000
13 57441-25G00-000
SUB: 57441B25G00N000		 .ADJUSTER, WIRE 1 Rp12.500
14 57442-25G00-000
SUB: 57442B25G00N000		 .NUT, LOCK 1 Rp9.000
15 01547-0625A-000
SUB: 01547B0625BN000		 .BOLT 2 Rp6.500
16 59671-09G30-000
SUB: 59671B09G20N000		 .HOLDER 1 Rp14.500
17 57470-10JH0-000
SUB: 57470-10JC0-000		 .SWITCH ASSY, CLUTCH 1 Rp47.500
18 57661-25G00-000
SUB: 57661B25G00N000		 COVER, CLUTCH LEVER 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
