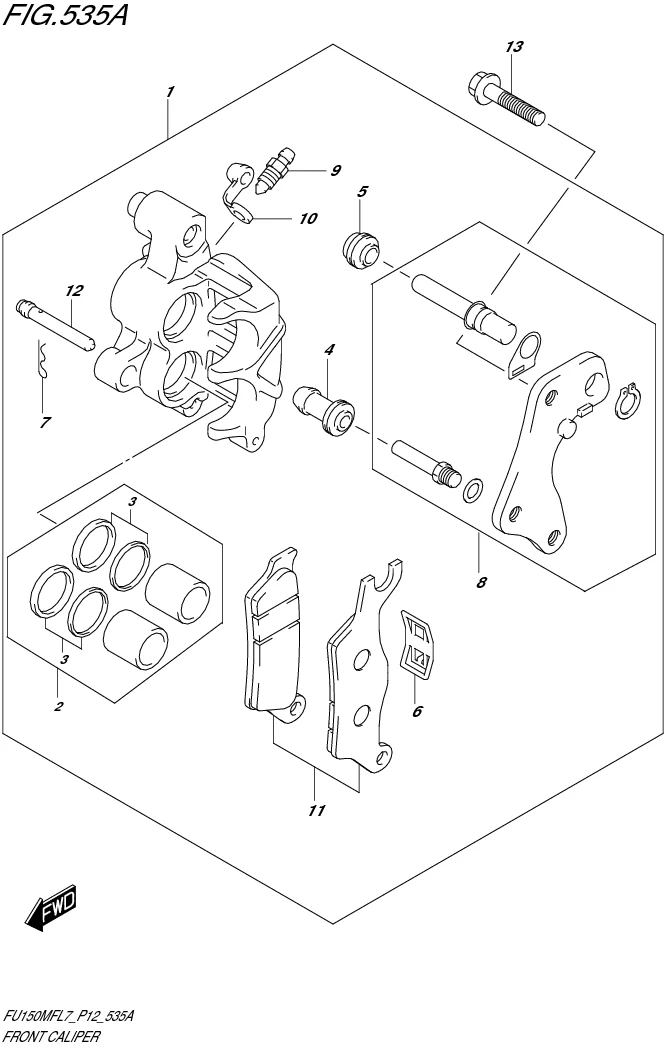

FIG. 535A FRONT CALIPER

FIG. 535A FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59100-12K00-000 CALIPER ASSY, FRONT RH 1 Rp571.500
2 59100-30860-000 .PISTON SET 1 Rp130.000
3 59300-30810-000 ..SEAL SET, PISTON 1 Rp67.500
4 59109-34J00-000 .INSULATOR 1 Rp15.500
5 59108-34J00-000 .DUST COVER 1 Rp13.500
6 59315-34J00-000 .SPRING, PAD 1 Rp18.000
7 59746-34J00-000 .CLIP 1 Rp11.500
8 59351-34J00-000 .BRACKET ASSY 1 Rp75.000
9 59121-30H00-000 .SCREW, BLEEDER 1 Rp18.000
10 59122-30H00-000 .CAP, BLEEDER 1 Rp11.000
11 59100-34880-000 .PAD SET 1 Rp117.500
12 59141-34J00-000 .PIN, PAD 1 Rp23.000
13 01550-0825A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
