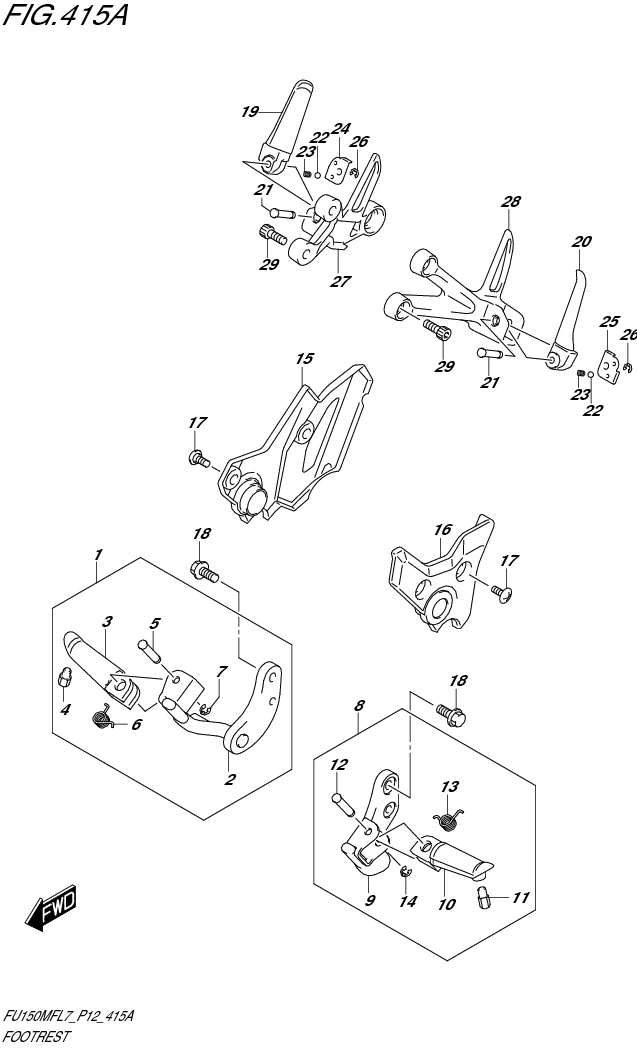

FIG. 415A FOOTREST

FIG. 415A FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43501-12K10-000 FOOTREST ASSY, FRONT RH 1 Rp91.000
2 43510-12K10-000 .BRACKET, FRONT FOOTREST RH 1 Rp54.500
3 43516-35F10-000 .BAR, FRONT FOOTREST RH 1 Rp67.000
4 43576-07D01-000 .BOLT, BANK SENSOR 1 Rp14.500
5 09208-08018-000 .PIN 1 Rp4.500
6 09448-14037-000 .SPRING 1 Rp4.500
7 08332-1106A-000
SUB: 08332B1106AN000		 .E RING 1 Rp8.500
8 43502-12K10-000 FOOTREST ASSY, FRONT LH 1 Rp91.000
9 43520-12K10-000 .BRACKET, FRONT FOOTREST LH 1 Rp54.500
10 43526-35F10-000 .BAR, FRONT FOOTREST LH 1 Rp65.500
11 43576-07D01-000 .BOLT, BANK SENSOR 1 Rp14.500
12 09208-08018-000 .PIN 1 Rp4.500
13 09448-14037-000 .SPRING 1 Rp4.500
14 08332-1106A-000
SUB: 08332B1106AN000		 .E RING 1 Rp8.500
15 43586-12K00-000 GUARD, FOOTREST RH 1 Rp13.000
16 43596-12K00-000 GUARD, FOOTREST LH 1 Rp13.000
17 09139-06145-000
SUB: 09139B06145N000		 SCREW (6X16) 4 Rp6.500
18 01550-0820B-000
SUB: 01550B0820BN000		 BOLT 4 Rp3.500
19 43611-25G01-000 BAR, PILLION RH 1 Rp21.500
20 43621-25G01-000 BAR, PILLION LH 1 Rp21.500
21 87259-85510-000 PIN 2 Rp30.000
22 06111M07004-000
SUB: 06111-07004-000		 BALL 2 Rp3.000
23 09440-05005-000 SPRING 2 Rp6.500
24 43816-33E21-000
SUB: 43816B33E21N000		 PLATE, RH 1 Rp5.500
25 43826-33E22-000
SUB: 43826B33E22N000		 PLATE, LH 1 Rp5.000
26 08332-1104A-000 E RING 2 Rp9.500
27 43811-25G20-291
SUB: 43811B25G20N000		 BRACKET, PILLION RH 1 Rp99.500
28 43821-25G30-291
SUB: 43821-25G30-000		 BRACKET, PILLION LH 1 Rp99.500
29 07130-0820A-000
SUB: 07130B0820AN000		 BOLT 4 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
