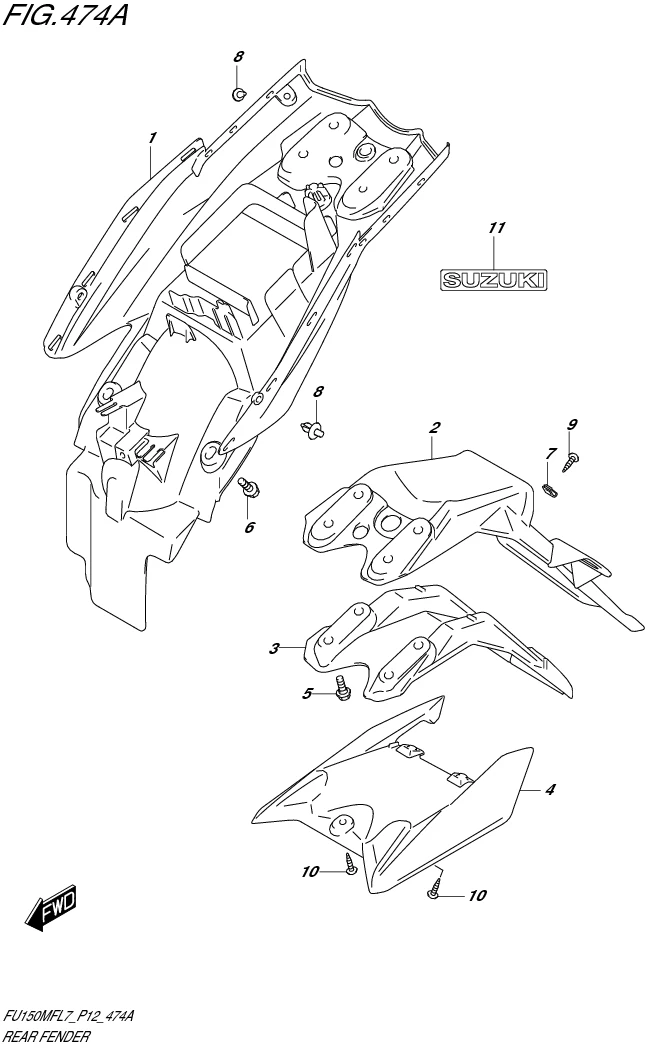

FIG. 474A REAR FENDER

FIG. 474A REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 63111-12K00-291 FENDER, REAR FRONT 1 Rp86.000
2 63112-12K00-291 FENDER, REAR REAR 1 Rp53.500
3 63113-12K00-291 FENDER, REAR INNER 1 Rp27.500
4 63411-12K00-000 MUDGUARD, REAR FENDER REAR 1 Rp23.000
5 09111-06072-000 BOLT (6X17.8) 4 Rp3.500
6 09111-06102-000 BOLT (6X14.8) 2 Rp3.500
7 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000
8 09409-06314-5PK CLIP (BLACK) 4 Rp3.500
9 03541-0516A-000 SCREW 2 Rp3.500
10 03541-0616A-000 SCREW 3 Rp13.500
11 68171-41H10-000 EMBLEM, SUZUKI 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
