All New Satria F150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 410A PILLION RIDER HANDLEFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 445A FRAME COVERFIG. 451A HEADLAMP HOUSINGFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 483A UNDER COWLINGFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 536A FRONT BRAKE HOSEFIG. 537A FRONT MASTER CYLINDERFIG. 541A REAR SWINGINGARMFIG. 550A REAR WHEELFIG. 555A REAR CALIPERFIG. 558A REAR MASTER CYLINDER

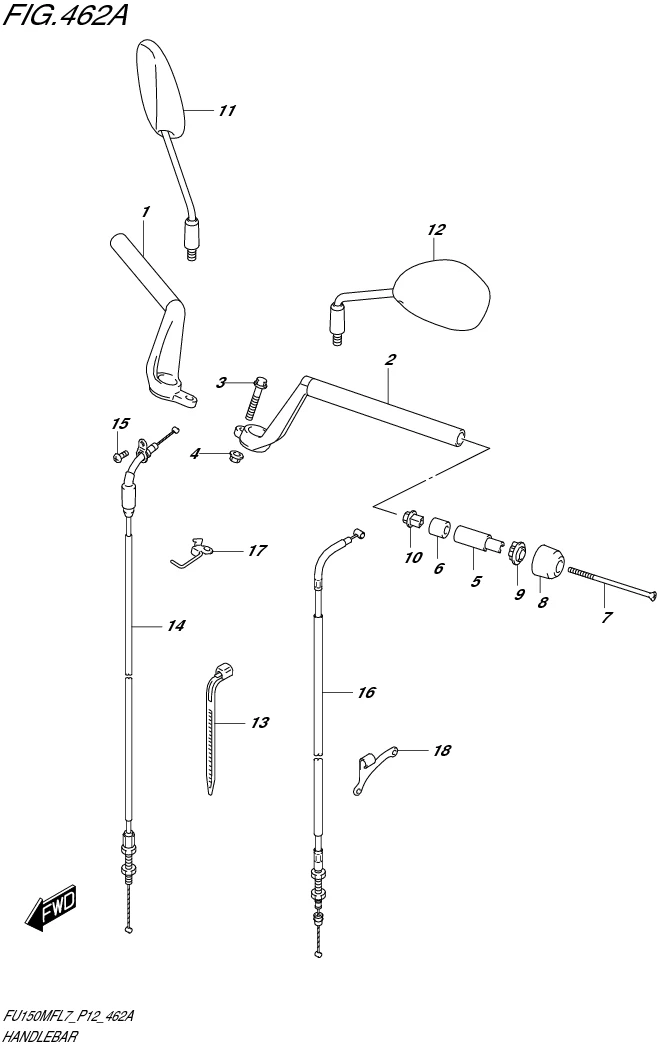

FIG. 462A HANDLEBAR

FIG. 462A HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1 56110-25G60-000 HANDLEBAR, RH 1 Rp142.500
2 56150-25G50-000 HANDLEBAR, LH 1 Rp142.500
3 01550-0845A-000 BOLT, HANDLEBAR 2 Rp18.000
4 08319-3108A-000
SUB: 08319B3108AN000		 NUT 2 Rp4.000
5 56276-22J00-000
SUB: 56276B22J00N000		 BALANCER, HANDLEBAR INNER 2 Rp10.500
6 56272-10G01-000
SUB: 56272B10G00N000		 EXPANDER, HANDLE BALANCER 2 Rp5.000
7 56277-32J00-000
SUB: 56277B32J00N000		 SCREW, HANDLE BALANCER 2 Rp6.000
8 56278-32J00-000
SUB: 56278B32J00N000		 BALANCER, HANDLEBAR 2 Rp28.000
9 56272-22J00-000
SUB: 56272B22J00N000		 EXPANDER, HANDLE BALANCER 2 Rp7.000
10 56273-10G10-000
SUB: 56273B10G10N000		 NUT 2 Rp20.500
11 56500-34J51-000
SUB: 56500-34J50-000		 MIRROR ASSY, REAR VIEW RH 1 Rp52.000
12 56600-34J51-000
SUB: 56600-34J50-000		 MIRROR ASSY, REAR VIEW LH 1 Rp52.000
13 36990-25G00-000
SUB: 09407-14403-000		 CLAMP (L:125) 1 Rp13.000
14 58300-12K00-000 CABLE ASSY, THROTTLE 1 Rp41.000
15 02112-0512A-000 SCREW 1 Rp2.500
16 58200-12K00-000 CABLE ASSY, CLUTCH 1 Rp46.000
17 58620-12K01-000
SUB: 58620-12K00-000		 GUIDE, CLUTCH CABLE 1 Rp7.500
18 58634-12K00-000 STOPPER, CLUTCH CABLE 1 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
