All New Satria F150

Preview Engine Transmission Electrical Suspension Body

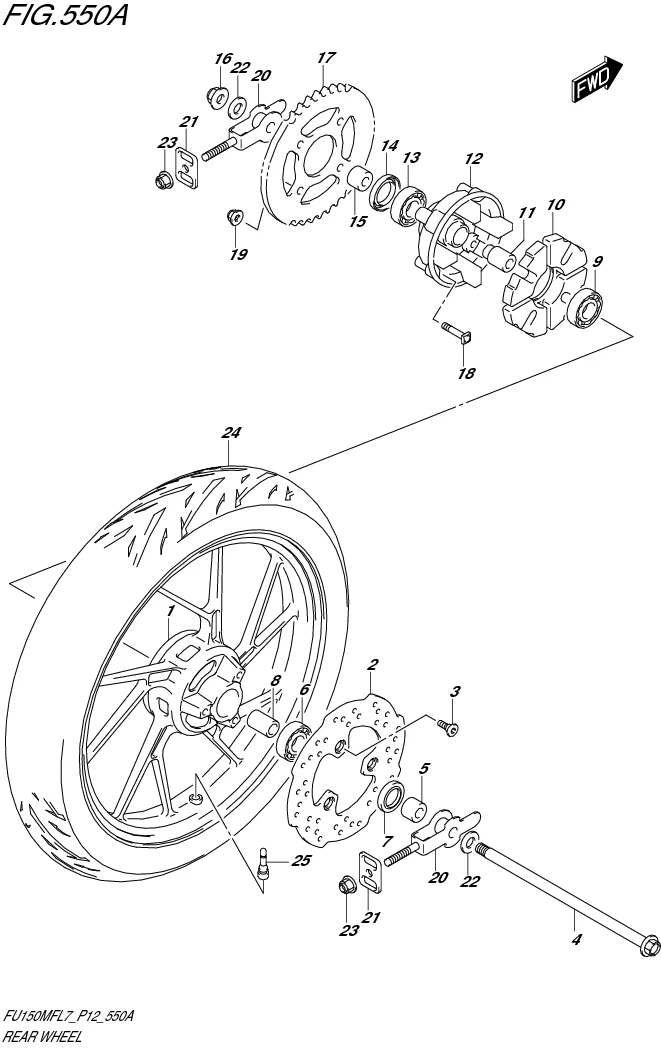

FIG. 550A REAR WHEEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	64111-25G60-PZW	WHEEL, REAR (17X1.85) (RED)FOR AYX	1	Rp994.000	FOR AYX
1-1	64111-25G60-YSW	WHEEL, REAR (17X1.85) (BLACK)FOR GTA, ANM, AM7,YUJ	1	Rp938.500	FOR GTA, ANM, AM7,YUJ
2	69211-25G50-000	DISC, REAR BRAKE	1	Rp120.500
3	59218-09G10-000	BOLT	3	Rp7.000
4	64711-25G10-000 SUB: 64711B25G10N000	AXLE, REAR	1	Rp24.500
5	64741-25G00-000 SUB: 64741B25G00N000	SPACER, REAR AXLE, RH	1	Rp18.500
6	08113-63017-000 SUB: 08113B63017N000	BEARING RH	1	Rp29.500	RH
7	09285-25008-000 SUB: 09285-25003L000	OIL SEAL (25X40X6)	1	Rp8.000
8	09180-12086-000 SUB: 09180B12086N000	SPACER (12.6X19X68)	1	Rp44.000
9	08143-62017-001 SUB: 08143-62017-000	BEARING LH	1	Rp24.500	LH
10	64651-25G10-000 SUB: 64651B25G10N000	ABSORBER, REAR HUB SHOCK	1	Rp38.500
11	64733-12K00-000	RETAINER, REAR SPROCKET DRUM	1	Rp14.500
12	64611-12K00-000	DRUM, REAR SPROCKET	1	Rp95.000
13	08113-62037L000	BEARING	1	Rp34.000
14	09285-25008-000 SUB: 09285-25003L000	OIL SEAL (25X40X6)	1	Rp8.000
15	64741-25G00-000 SUB: 64741B25G00N000	SPACER, REAR SPROCKET DRUM	1	Rp18.500
16	08319-3112A-000 SUB: 08319B3112AN000	NUT	1	Rp7.000
17	64511-12K00-000	SPROCKET, REAR (NT:43)	1	Rp91.500
18	09105-08011-000 SUB: 09105-08011L000	BOLT (8X36)	4	Rp6.500
19	08319-3108A-000 SUB: 08319B3108AN000	NUT	4	Rp4.000
20	61410-28F00-000 SUB: 61410B28F00N000	ADJUSTER, CHAIN	2	Rp26.000
21	61421-05F00-000 SUB: 61421B05F00N000	PLATE, CHAIN ADJUSTER GUIDE	2	Rp24.000
22	09160-12085-000 SUB: 09160B12085N000	WASHER (12.5X26X2.3)	2	Rp6.500
23	08319-3108A-000 SUB: 08319B3108AN000	NUT	2	Rp4.000
24	65110-12K00-000	TIRE,REAR(80/90-17M/C 50P NR93)	1	Rp463.000
25	43130-40J00-000	VALVE ASSY, WHEEL RIM (TR413)	1	Rp11.000
