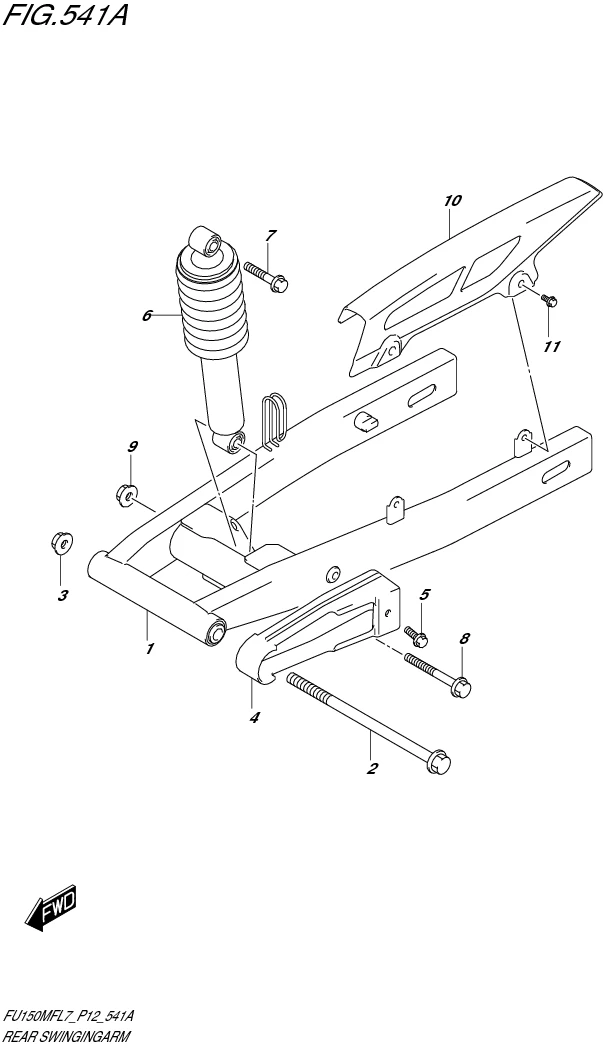

FIG. 541A REAR SWINGINGARM

FIG. 541A REAR SWINGINGARM
No No. Part Description Qty Price Per Pcs Remarks
1 61100-12820-019 SWINGING ARM SET, REAR (BLACK) 1 Rp394.000
2 61211-25G20-000
SUB: 61211B25G20N000		 SHAFT, REAR SWINGING ARM 1 Rp29.000
3 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000
4 61273-25G10-000
SUB: 61273B25G10N000		 BUFFER, CHAIN TOUCH DEFENSE 1 Rp15.500
5 61361-09G00-000
SUB: 61361B09G00N000		 BOLT 1 Rp4.000
6 62100-12K10-019
SUB: 62100-12K00-019		 ABSORBER ASSY,RR SHOCK (BLACK) 1 Rp616.500
7 09103-10049-000
SUB: 09103B10049N000		 BOLT (10X44) 1 Rp6.500
8 62313-25G10-000
SUB: 62313B25G10N000		 BOLT, LOWER 1 Rp8.000
9 08319-3110A-000 NUT 1 Rp4.500
10 61311-12K00-000 CASE, CHAIN 1 Rp34.000
11 61361-09G30-000
SUB: 61361B09G30N000		 BOLT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
