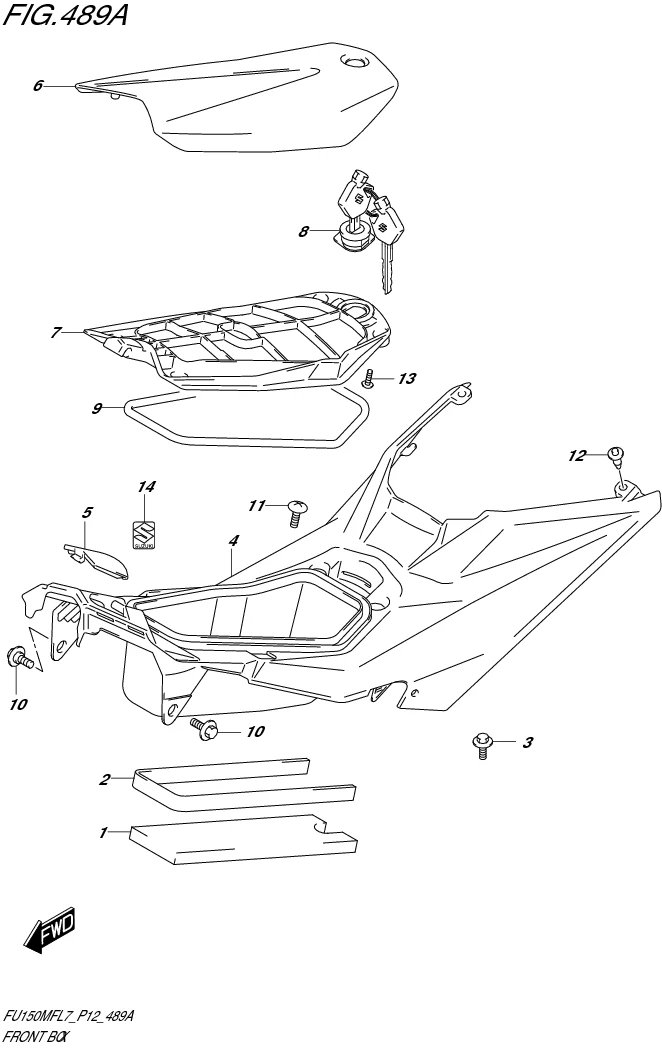

FIG. 489A FRONT BOX

FIG. 489A FRONT BOX
No No. Part Description Qty Price Per Pcs Remarks
1 92114-12K00-000 CUSHION, FRONT BOX NO.1 1 Rp32.500
2 92115-12K00-000 CUSHION, FRONT BOX NO.2 1 Rp18.000
3 61361-09G20-000
SUB: 61361B09G20N000		 BOLT, RR FENDER 2 Rp4.000
4 92111-12K00-000 BOX, FRONT 1 Rp38.000
5 92113-12K00-291 LID, MAINTENANCE (BLACK) 1 Rp32.000
6 92121-12K00-YVU LID, FRONT BOX OUTER (BLACK) 1 Rp105.000
7 92122-12K00-291 LID, FRONT BOX INNER (BLACK) 1 Rp21.500
8 92100-12830-000 LOCK SET, FRONT BOX 1 Rp146.000
9 92141-12K00-000 CUSHION, FRONT BOX 1 Rp7.000
10 09111-06102-000 BOLT (6X14.8) 2 Rp3.500
11 09139-06145-000
SUB: 09139B06145N000		 SCREW (6X16) 1 Rp6.500
12 09409-06314-5PK CLIP (BLACK) 2 Rp3.500
13 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 4 Rp3.500
14 68281-12K00-000 EMBLEM, SUZUKI 1 Rp10.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
