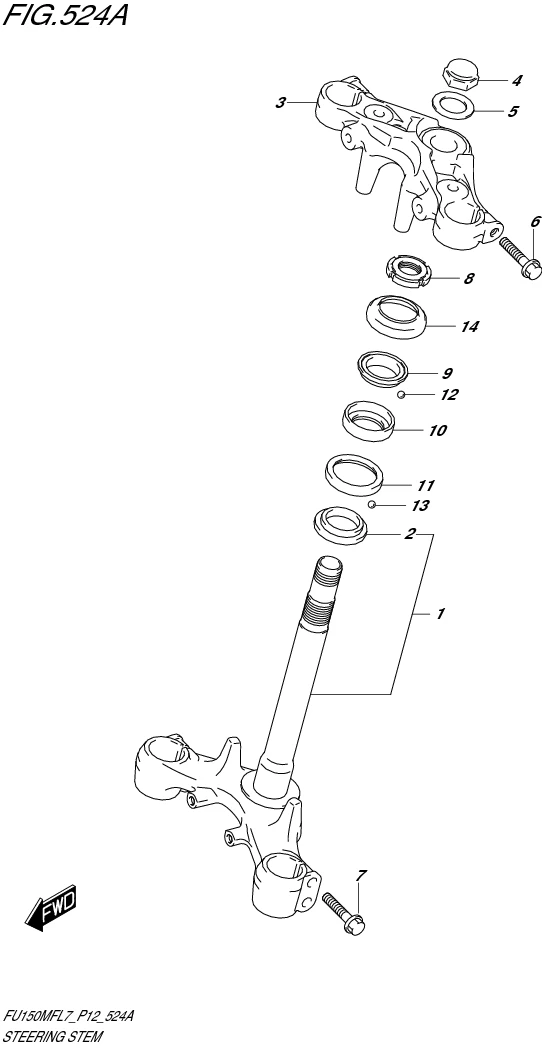

FIG. 524A STEERING STEM

FIG. 524A STEERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1 51410-12K00-000 STEM, STEERING 1 Rp260.500
2 51622-25G00-000
SUB: 51622B25G00N000		 .RACE 1 Rp48.000
3 51311-12K00-000 BRACKET, UPPER 1 Rp259.500
4 51353-25G80-000 NUT 1 Rp44.000
5 51354-49G00-000
SUB: 51354B49G00N000		 WASHER 1 Rp6.500
6 51321-13E00-000
SUB: 51321B13E00N000		 BOLT 2 Rp4.500
7 51434-12K00-000 BOLT 4 Rp5.500
8 51631-05000-000 NUT, STEERING STEM 1 Rp20.000
9 51611-41H01-000 RACE, INNER UPPER 1 Rp20.500
10 51612-41H01-000 RACE, INNER LOWER 1 Rp20.500
11 51621-41H00-000 RACE, OUTER UPPER 1 Rp31.000
12 06111-06004-000
SUB: 06111B06003N000		 BALL UPPER 22 Rp1.000 UPPER
13 06111-06004-000
SUB: 06111B06003N000		 BALL LOWER 28 Rp1.000 LOWER
14 51643-06001-000 DUST SEAL, UPPER 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
