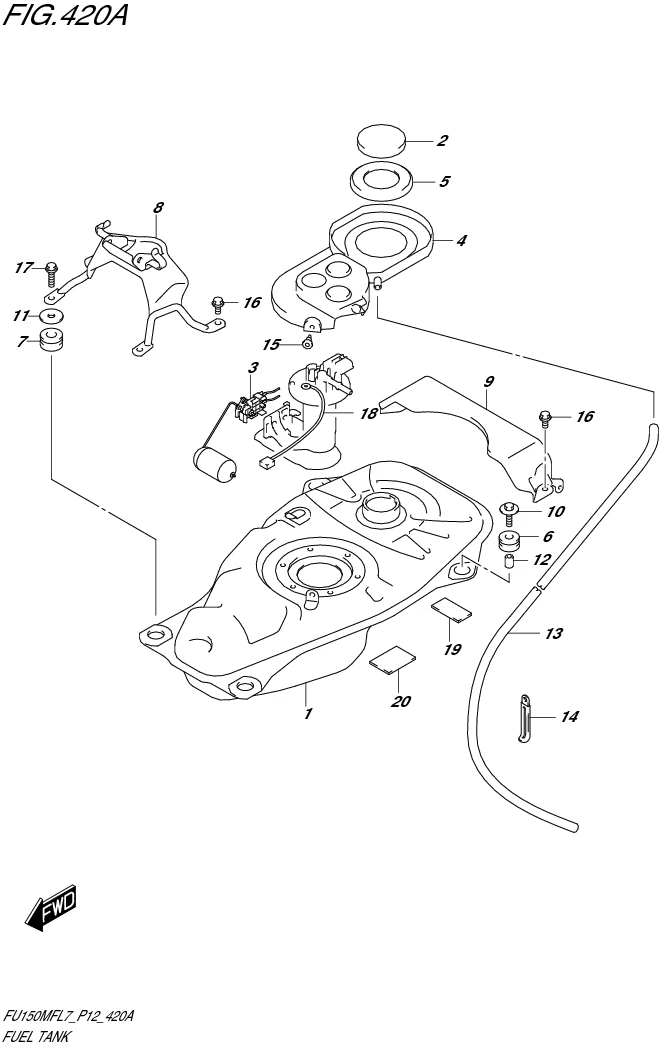

FIG. 420A FUEL TANK

FIG. 420A FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44110-12K00-000 TANK, FUEL 1 Rp378.500
2-1 44210-09J00-000 CAP, FUEL TANK 1 Rp19.500 CNC
2-2 44210-09J00-000
SUB: 44210-09J10-000		 CAP, FUEL TANK 1 Rp19.500 INDTA PRATAMJAYA
3 34810-12K00-000 GAUGE ASSY, FUEL LEVEL SENDER 1 Rp70.500
4 44261-12K00-000 TRAY, FUEL TANK INLET 1 Rp14.500
5 44261-41H10-000 RUBBER, TANK INLET 1 Rp5.500
6 44512-04F01-000
SUB: 44512-04F00-000		 CUSHION, FUEL TANK SIDE 2 Rp4.500
7 44512-12K00-000 CUSHION, FUEL TANK FRONT 2 Rp5.500
8 44520-12K00-000 BRACKET, SEAT HINGE 1 Rp54.500
9 44551-12K00-000 BRACKET, SEAT SUPPORT 1 Rp35.500
10 09116-06186-000
SUB: 09116-06199-000		 BOLT (6X25) 2 Rp23.500
11 09160-06136-000
SUB: 09160B06136N000		 WASHER (6.5X28X1.6) 2 Rp3.500
12 09180-06267-000 SPACER (6.5X9X12.5) 2 Rp5.500
13 09352-70120-860
SUB: 09352-70L05-860		 HOSE 1 Rp20.500
14 09404-06431-000 CLAMP (L:65) 1 Rp14.000
15 09409-06314-5PK CLIP (BLACK) 1 Rp3.500
16 01550-0610B-000
SUB: 01550B0610AN000		 BOLT 4 Rp3.000
17 DISCONTINUE
SUB: 01550B0625AN000		 BOLT 2 -
18 36851-12K00-000 WIRE, FUEL TANK 1 Rp10.500
19 33652-39J00-000 CUSHION 1 Rp7.500
20 44281-12K00-000 CUSHION 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
