All New Satria F150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 407A STANDFIG. 410A PILLION RIDER HANDLEFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 445A FRAME COVERFIG. 451A HEADLAMP HOUSINGFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 467A HANDLE LEVERFIG. 474A REAR FENDERFIG. 483A UNDER COWLINGFIG. 489A FRONT BOXFIG. 496A LABELFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 535A FRONT CALIPERFIG. 536A FRONT BRAKE HOSEFIG. 537A FRONT MASTER CYLINDERFIG. 541A REAR SWINGINGARMFIG. 550A REAR WHEELFIG. 555A REAR CALIPERFIG. 558A REAR MASTER CYLINDER

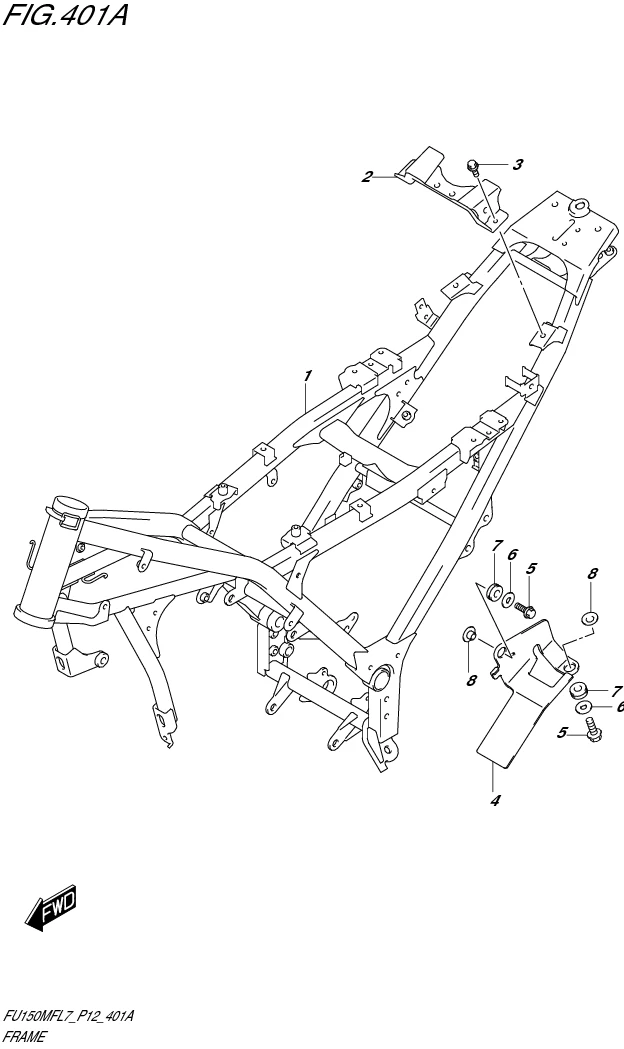

FIG. 401A FRAME

FIG. 401A FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 41100-12K00-000		 FRAME 1 -
2 41560-12K00-000 BAND, BATTERY 1 Rp25.000
3 01550-0616A-000 BOLT 2 Rp3.500
4 47414-12K00-000 BRACKET, RECT FTG 1 Rp33.500
5 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500
6 09160-06028-000 WASHER (6.5X18X1) 2 Rp3.500
7 09320-08051-000 CUSHION 2 Rp3.000
8 09180-06325-000
SUB: 09180B06325N000		 SPACER (6.2X8.4X6.9) 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
