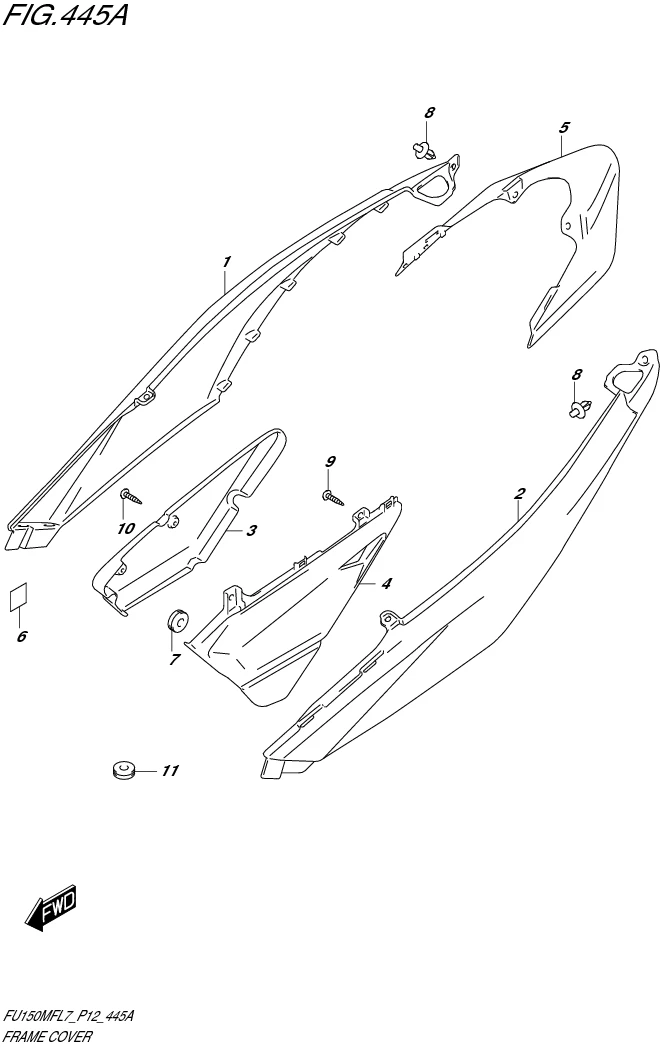

FIG. 445A FRAME COVER

FIG. 445A FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1-1 47111-12K00-YVU COVER, FRAME RH (BLACK)FOR GTA, ANM, AYX 1 Rp132.500 FOR GTA, ANM, AYX
1-2 47111-12K00-YUH COVER, FRAME RH (WHITE)FOR AM7 1 Rp140.500 FOR AM7
1-3 47111-12K00-YUJ COVER, FRAME RH (BLUE)FOR YUJ 1 Rp140.500 FOR YUJ
2-1 47211-12K00-YVU COVER, FRAME LH (BLACK)FOR GTA, ANM, AYX 1 Rp132.500 FOR GTA, ANM, AYX
2-2 47211-12K00-YUH COVER, FRAME LH (WHITE)FOR AM7 1 Rp140.500 FOR AM7
2-3 47211-12K00-YUJ COVER, FRAME LH (BLUE)FOR YUJ 1 Rp140.500 FOR YUJ
3 47121-12K00-291 COVER, FRAME FRONT RH (BLACK) 1 Rp66.000
4 47221-12K00-291 COVER, FRAME FRONT LH (BLACK) 1 Rp66.000
5 47311-12K00-000 COVER, FRAME CENTER 1 Rp25.500
6 47117-12K00-000 CUSHION, FRAME COVER 2 Rp4.500
7 09320-08028-000
SUB: 09320B08028N000		 CUSHION 1 Rp11.500
8 09409-06314-5PK CLIP (BLACK) 4 Rp3.500
9 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 2 Rp3.500
10 03541-0412B-000
SUB: 03541B0412BN000		 SCREW 2 Rp4.000
11 48278-16H00-000 CUSHION, LEG BRACE 3 Rp38.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
