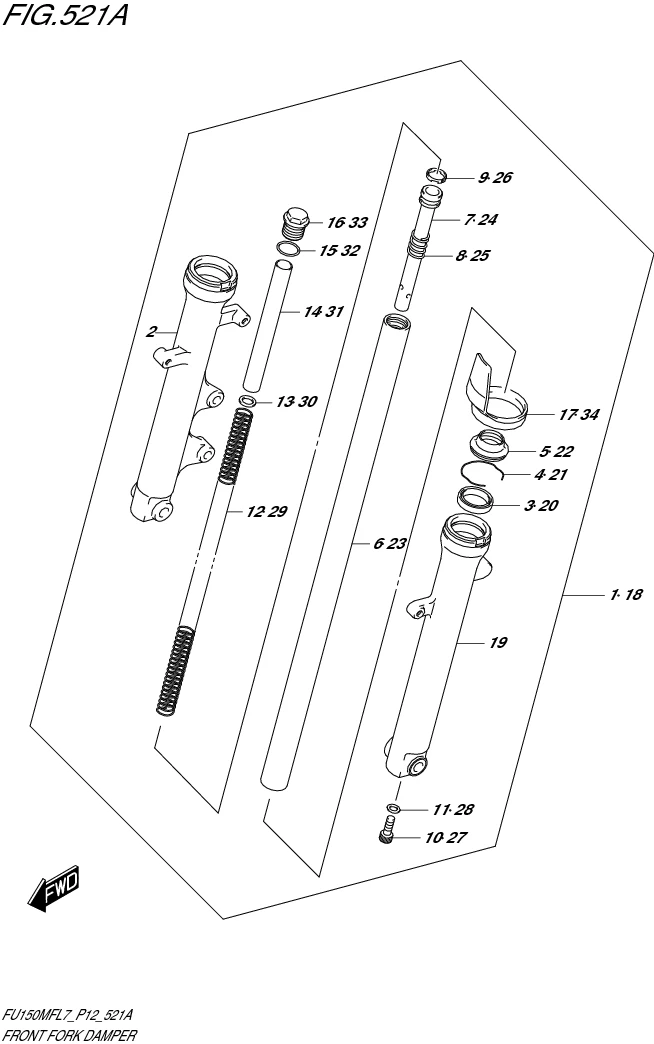

FIG. 521A FRONT FORK DAMPER

FIG. 521A FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103-12K01-291
SUB: 51103-12K00-291		 DAMPER ASSY, FRONT FORK RH 1 Rp498.000
2 51131-12K00-291 .TUBE, OUTER RH 1 Rp244.000
3 51153-09G00-000 .OIL SEAL 1 Rp16.500
4 51156-09G00-000 .RING, SNAP 1 Rp4.500
5 51571-09G00-000 .SEAL, DUST 1 Rp8.000
6 51110-25G80-000
SUB: 51110B25G80N000		 .TUBE, INNER 1 Rp310.500
7 51194-25G80-000
SUB: 51194B25G80N000		 .CYLINDER 1 Rp58.000
8 51177-47E00-000 .SPRING, REBOUND 1 Rp5.000
9 51196-16H00-000 .RING 1 Rp7.000
10 51147-42AA0-000
SUB: 51147B42AA0N000		 .BOLT 1 Rp8.500
11 51148-31030-000 .GASKET 1 Rp4.000
12 51171-12K00-000 .SPRING, FRONT 1 Rp36.000
13 51192-47E00-000
SUB: 51192B47E00N000		 .WASHER 1 Rp5.500
14 51176-12K00-000 .SPACER, SPRING 1 Rp7.000
15 51117-25G80-000
SUB: 51117B25G80N000		 .O RING 1 Rp4.000
16 51189-25G80-000
SUB: 51189B25G80N000		 .CAP 1 Rp35.000
17 51201-25G80-000
SUB: 51201B25G80N000		 .PROTECTOR 1 Rp9.000
18 51104-12K01-291
SUB: 51104-12K00-291		 DAMPER ASSY, FRONT FORK LH 1 Rp498.000
19 51141-12K00-291 .TUBE, OUTER LH 1 Rp244.000
20 51153-09G00-000 .OIL SEAL 1 Rp16.500
21 51156-09G00-000 .RING, OIL SEAL 1 Rp4.500
22 51571-09G00-000 .SEAL, DUST 1 Rp8.000
23 51110-25G80-000
SUB: 51110B25G80N000		 .TUBE, INNER 1 Rp310.500
24 51194-25G80-000
SUB: 51194B25G80N000		 .CYLINDER 1 Rp58.000
25 51177-47E00-000 .SPRING, REBOUND 1 Rp5.000
26 51196-16H00-000 .RING 1 Rp7.000
27 51147-42AA0-000
SUB: 51147B42AA0N000		 .BOLT 1 Rp8.500
28 51148-31030-000 .GASKET 1 Rp4.000
29 51171-12K00-000 .SPRING, FRONT 1 Rp36.000
30 51192-47E00-000
SUB: 51192B47E00N000		 .WASHER 1 Rp5.500
31 51176-12K00-000 .SPACER 1 Rp7.000
32 51117-25G80-000
SUB: 51117B25G80N000		 .O RING 1 Rp4.000
33 51189-25G80-000
SUB: 51189B25G80N000		 .CAP 1 Rp35.000
34 51201-25G80-000
SUB: 51201B25G80N000		 .PROTECTOR 1 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
